Husqvarna ST 230 Snow Blower

Model: ST 230

Back To Assemblies

Save Part Not Listed?
product name

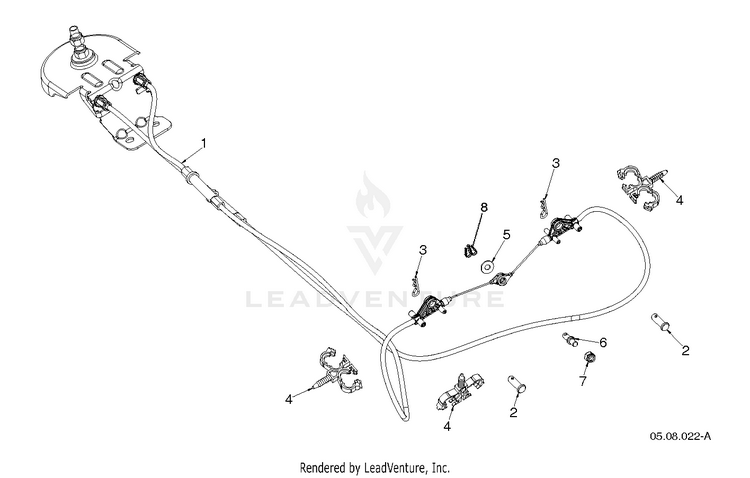

CONTROL PANEL & DISCHARGE CHUTE 6

...
...
6
Clevis Pins HUS-596717201
...
8
GSPW Retainers HUS-596029401
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
3
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
5
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
2
PIN CLEVIS 5/16X.875 HUS-581329401
...
1
Chutes HUS-598803401
...
4
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
