product name

Husqvarna ST 227P Snow Blower

Model: ST 227P

Back To Assemblies

Save Part Not Listed?
product name

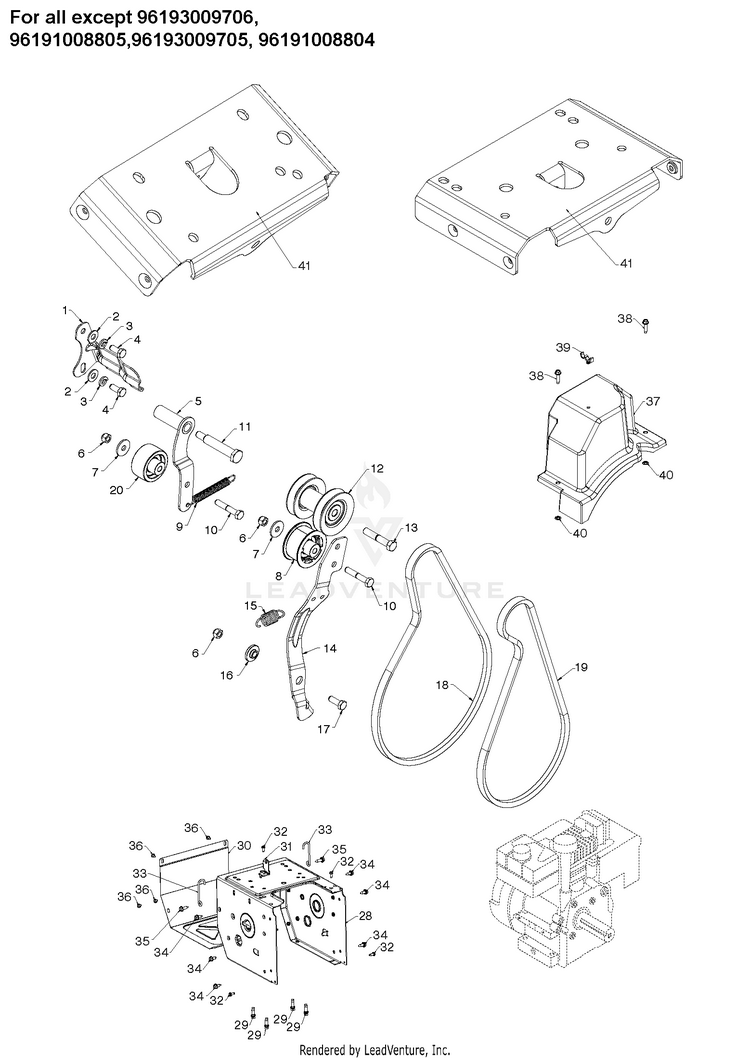

"CHASSIS, ENGINE & PULLEYS" 2

...
...
33
WIREFORM.SUPPORT.CABLE HUS-588954501
...
32
SCREW 14-20 X 5/8 For all EXCEPT 96191008803, 96193009704 HUS-817060410
...
13
BOLT.BLADE For 96191008800, 96193009701 HUS-532179617
...
34
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
15
SPRING RETURN, IDLER ARM, IMPE For all EXCEPT 96193009704 HUS-587031201
...
14
ARM.IDLER.AUTO-PH.676 For 96191008803, 96193009704, 96191008802 HUS-580831106
...
5
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
20
PULLEY.IDLER.FLNGLESS.W/SPACER HUS-586880202
...
8
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
30
COVER COVER.FRAME MS668 ORANGE HUS-580839505
...
9
SPRING RETURN IDLER ARM HUS-580753001
...
37
COVER COVER.BELT For 96191008800, 96193009701 HUS-581049901
...
32
SCREW.HEX HEAD W/COLLAR 1/4-20 For 96191008803, 96193009704 HUS-582906901
...
13
BOLT.HD.HEAD.3/8-24X2.50 (2 2) For 96193009703, 96193009702, 96191008801 HUS-532191760
...
14
ARM.IDLER.SNOW.BLACK For 96191008800, 96193009701 HUS-580831102
...
40
For all EXCEPT 96191008800, 96193009701 HUS-000000000
...
31
BRACKET.SHIFTER.BZP HUS-501060403
...
xx
ENGINE.LCT.254CC.ALT.SNO LCT - PW2HK18750178E HUS-585335706
...
12
PULLEY.ASM.IMPELLER/DRIVE HUS-587893703
...
15
BUSHING.BRAKE.ARM For 96193009704 HUS-587343701
...
10
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
6
Hardware HUS-596040501
...
28
FRAME.GEAR.CASE.ORANGE HUS-580839405
...
38
For all EXCEPT 96191008800, 96193009701 HUS-000000000
...
19
LOW CRANK IMPELLER BELT HUS-501818201
...
14
ARM.IDLER.AUTO-PH.676 For 96193009703, 96193009702, 96191008801, 96193009701 HUS-580831106
...
16
BUSHING.BRAKE.ARM HUS-587343701
...
13
BOLT.ENGINE.PULLEY For 96191008803, 96193009704, 96191008802 HUS-582388401
...
41
BRACKET.FRAME.SUPPORT.BLACK HUS-583940502
...
4
SCREW 5/16-24 X .75 GR5 HUS-874610512
...
1
BRACKET.BELT.KEEPER.004.BZP For 96191008800, 96193009701 HUS-581623702
...
7
STEEL WASHER HUS-532059289
...
2
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
SCREW HEXAGON HEAD WITH COLLAR For 96191008803 HUS-593337201
...
39
PUSH CLIP HUS-532145006
...
36
SCREW For 96191008802 HUS-817060408
...
xx
ENGINE.LCT.254CC.STORMFOR.ALT For 96191008803, 96191008802, 96191008801, 96191008800, LCT - PW2HK18750178Y HUS-585335704
...
18
BELT.DRIVE.SNOW.DUAL HUS-584216102
...
1
BELT KEEPER BRACKET For all EXCEPT 96191008800, 96193009701 HUS-588492802
...
40
PALNUT 1/4 For 96191008800, 96193009701 HUS-532423062
...
38
SCREW HEX WASH THDRL BLK 1_4- For 96191008800, 96193009701 HUS-585691101
...
11
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
37
COVER COVER.BELT For all EXCEPT 96191008800, 96193009701 HUS-581049901
...
17
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
29
BOLT 3/8-16X1-1/8 HUS-532150406
...
3
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
35
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
