Husqvarna ST 227P Snow Blower

Model: ST 227P

Back To Assemblies

Save Part Not Listed?
product name

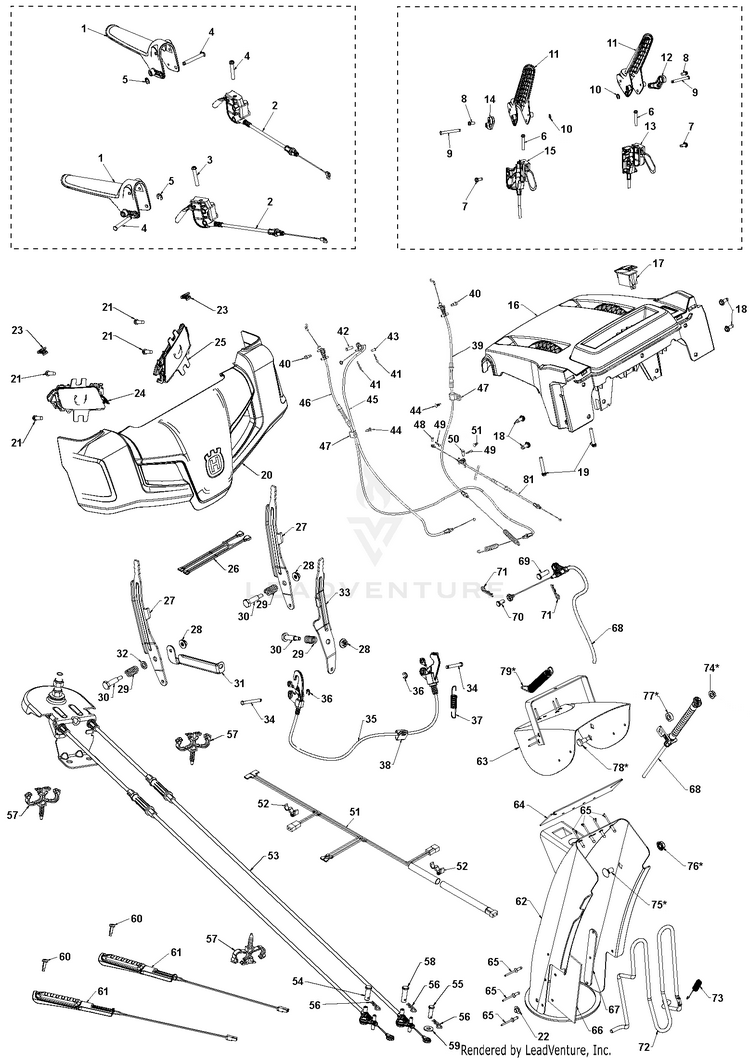

CONTROL PANEL & DISCHARGE CHUTE

...
...
61
SCREW.PAN.HD.TORX.1/4-20X.750 HUS-532442250
...
33
LEVER.CONTROL.CHUTE.ROTATON.BL HUS-581241602
...
25
LIGHT ASM.HUSQVARNA.LH HUS-586723601
...
78*
BOLT CAR BLK 5/16-18 X 5/8 For 96193009703, 96193009702, 96191008801, INCLUDED IN BAG OF PARTS HUS-585832001
...
29
SPRING.COMPRESSION.82LBS HUS-581329601
...
39
CABLE.CONTROL.DRIVE.16 For 96191008802 HUS-582519001
...
41
HAIRPIN.SOFT.ZINC.059X1.125 For all EXCEPT 96191008802 HUS-583404901
...
35
CABLE INTERLOCK CONTROL ACETAL HUS-593853401
...
39
CABLE.CONTROL.DRIVE.DSST.OPP For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-587641801
...
45
CABLE.CONTROL.SPEED.DSST.OPP For all EXCEPT 96191008805 HUS-588122301
...
28
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
72
GUARD ROD CHUTE GUARD SHORT CL For 96191008805 HUS-593622201
...
64
For all EXCEPT 96191008800, 96193009701, SEAL HUS-000000000
...
57
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
66
SHIELD.SNOW.CHUTE For 96191008800, 96193009701 HUS-532430324
...
58
PIN CLEVIS CLEVIS For all EXCEPT For 96193009706, 96191008805 HUS-587130803
...
11
LEVER CONTROL DSST OPP MPP For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-587463001
...
44
FASTENER.PUSH.O.250X0.783 For all EXCEPT 96191008802 HUS-532428124
...
13
CABLE.POWER STEERING.RHS For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, RH HUS-588263902
...
55
PIN.CLEVIS HUS-877100812
...
34
PIN.GROOVED HUS-583473901
...
9
PIN.GROOVED For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-588147701
...
69
PIN CLEVIS 5/16X.875 HUS-581329401
...
3
SCREW HEX WASH MACH BLK 10-24 For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-585690701
...
6
SCREW HEX_WASH_13-16 X 1.50_H For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-581329501
...
64
SEAL.DEFLECTOR For 96191008800, 96193009701 HUS-532420325
...
40
CLIP.CABLE.BLK For 96191008802 HUS-532197991
...
68
CABLE CONTROL.CHUTE.DEFLECTOR. For 96193009706, 96191008805 HUS-590587002
...
51
RP HARNESS.WIRE.LIGHT & GRIP For 96191008800, 96193009701 HUS-584290201
...
65
For all EXCEPT 96191008800, 96193009701, POP RIVET HUS-000000000
...
72
ROD.GUARD.CHUTE (2 2) For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800 HUS-532435582
...
59
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
16
CONSOLE BASE MULTI CONTROL HUS-581131212
...
31
BRACE.SUPPORT.SPEED.BLACK HUS-584468402
...
20
COVER CONSOLE_ASM_HUSQVARNA HUS-581127901
...
71
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
44
PIN CLEVIS 5/16X.875 For 96191008802 HUS-581329401
...
10
E-RING For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-812000014
...
41
PIN CLEVIS .25 X .31 For 96191008802 HUS-585808301
...
5
E-RING For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-812000014
...
23
CLIP PANEL ERGO 30603 HUS-581928701
...
54
PIN CLEVIS 5/16X.875 HUS-581329401
...
18
SCREW 14-20 X 5/8 HUS-817060410
...
46
CABLE.CONTROL.AUGER.DSST.OPP.M For 96191008800, 96193009701 HUS-581128201
...
62
DEFLECTOR ASSEMBLY RIVETED For 96191008800, 96193009701 HUS-590518207
...
37
NEEDS DESCRIPTION HUS-581151202
...
46
CABLE.CONTROL.AUGER.DSST.OPP.M For 96193009703, 96193009702, 96191008801 HUS-587428701
...
65
RIVET BLIND For 96191008800, 96193009701 HUS-532128415
...
67
STRAP.SHEILD.RETAINER For 96191008800, 96193009701 HUS-532421728
...
43
PIN CLEVIS .25 X .31 For all EXCEPT 96191008800, 96193009701, 96191008802 HUS-585808301
...
74*
NUT.HEX.LRG.FLANGE.1/4-20.LOCK INCLUDED IN BAG OF PARTS HUS-585691401
...
68
CABLE CONTROL.CHUTE.DEFLECTOR. For 96193009705, 96191008804, 96191008803, 96193009704 HUS-590587002
...
73
SPRING.CHUTE.GUARD For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800, 96191008805 HUS-532435616
...
47
CLIP.CABLE.BLK For all EXCEPT 96191008802 HUS-532197991
...
53
Chutes HUS-598803401
...
62
DEFLECTOR ASSEMBLY RIVETED For all EXCEPT 96191008800, 96193009701, INCLUDES KEY NUMBERS 1-6 HUS-590518207
...
52
PUSH CLIP For all EXCEPT 96191008800, 96193009701 HUS-532145006
...
48
PIN CLEVIS .25 X .31 For 96191008800, 96193009701 HUS-585808301
...
26
HARNESS.WIRE.LIGHT.JUMPER HUS-585868301
...
67
For all EXCEPT 96191008800, 96193009701, RETAINER HUS-000000000
...
32
WASHER.FLAT.625 X .375 NYLON HUS-587031301
...
42
HAIRPIN.SOFT.ZINC.059X1.125 For 96191008802 HUS-583404901
...
12
LEVER.CABLE.ARM.RHS.BLACK For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, RH HUS-587739702
...
75*
BOLT CAR BLK 5/16-18 X 5/8 INCLUDED IN BAG OF PARTS HUS-585832001
...
78*
BOLT.CARR.W.3125 SHLDR..25-20 For all EXCEPT 96193009703, 96193009702, 96191008801,96191008800, 96193009701, INCLUDED IN BAG OF PARTS HUS-501417301
...
63
DEFLECTOR ASSEMBLY RIVETED For 96191008800, 96193009701 HUS-590518207
...
50
PIN CLEVIS 5/16X.875 For 96191008800, 96193009701 HUS-581329401
...
15
CABLE.POWER STEERING.LHS For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, LH HUS-588263901
...
60
GRIP.HANDLE.HEATED HUS-590493601
...
17
SWITCH HEATED GRIP BLK HUS-585805001
...
1
LEVER CONTROL DSST OPP MPP For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-587463001
...
xx
DECAL.BADGE.55MM.CROWNH.HUSQ For 96193009703, 96191008802, 96193009702, 96191008801 HUS-532428677
...
70
PIN CLEVIS .25 X .31 HUS-585808301
...
30
BOLT SHOULDER_HEX HD_1/4-20_3/ HUS-581329702
...
47
FASTENER.PUSH.O.250X0.783 For 96191008802 HUS-532428124
...
46
CABLE.CONTROL.AUGER For 96193009703 HUS-588113802
...
81
RB CABLE.CNTRL.SPEED.DSST.OPP For 96191008800, 96193009701 HUS-581124201
...
76*
NUT.HEX.FLANGE.LOCK.5/16-18 For 96191008800, 96193009701, INCLUDED IN BAG OF PARTS HUS-585691501
...
8
SCREW.HWH.13-16X.50 For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-817411308
...
4
PIN.GROOVED For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-583473901
...
46
CABLE.CONTROL.AUGER For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704 HUS-588113802
...
39
CABLE.DRIVE CONTROL W/ADJ For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704 HUS-582519002
...
79*
SPRING.DEFLECTOR.REM.CHUTE For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800, 96191008805, INCLUDED IN BAG OF PARTS HUS-532184505
...
78*
SPRING.DEFLECTOR.REM.CHUTE For 96191008800, 96193009701, INCLUDED IN BAG OF PARTS HUS-532184505
...
68
CABLE CONTROL.CHUTE.DEFL.BOWDE For 96193009703, 96191008802, 96193009702, 96191008801, 96191008800, 96193009701 HUS-586961501
...
38
CLIP.CABLE.BLK HUS-532197991
...
40
BOLT SHOULDER_1/4-20_TRILOB For all EXCEPT 96191008802 HUS-581726101
...
14
LEVER.CABLE.ARM.LHS.BLACK For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, LH HUS-587739701
...
45
Cables For 96191008805 HUS-593848401
...
36
E-RING HUS-812000014
...
7
SCREW 14-20 X 5/8 For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 HUS-817060410
...
2
CABLE.CONTROL.PS.OPP.SNOW For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 HUS-581208201
...
27
LEVER.CONTROL.SPEED/DEFLEC.BLK HUS-581123902
...
63
For all EXCEPT 96191008800, 96193009701, DEFLECTOR HUS-000000000
...
42
PIN CLEVIS 5/16X.875 For all EXCEPT 96191008802 HUS-581329401
...
24
LIGHT ASM.HUSQVARNA.RH HUS-586723501
...
51
HARNESS WIRE.LIGHT AND GRIPS For all EXCEPT 96191008800, 96193009701 HUS-587535701
...
56
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
22
PAL NUT PM For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800, 96191008805 HUS-582935201
...
77*
WASHER.NYLON.326 X.625 X.205 For all EXCEPT 96193009703, 96193009702, 96191008801, 96191008800, 96193009701, INCLUDED IN BAG OF PARTS HUS-501417401
...
49
HAIRPIN.SOFT.ZINC.059X1.125 For 96191008800, 96193009701 HUS-583404901
...
19
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
66
For all EXCEPT 96191008800, 96193009701, SHIELD HUS-000000000
...
21
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
58
PIN CLEVIS CLEVIS For 96193009706, 96191008805 HUS-587130803
