Husqvarna ST 227P Snow Blower

Model: ST 227P

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
6
RETAINER RING E-RING CLEAR ZI HUS-595841101
...
17
WASHER FLAT.59IDX1.065ODX25GA HUS-580756301
...
22
Friction Drive For all EXCEPT 96193009706, 96191008805 HUS-597362801
...
25
E-RING HUS-812000022
...
15
PAWL.ASM.RH.SNOW HUS-580756601
...
2
PLATE.SWING.FRICTION PULLEY.47 For all EXCEPT 96191008800, 96193009701, 96193009706, 96191008805 HUS-587703402
...
4
SPACER YOKE, TORSION SPRING HUS-581732701
...
13
RING.RETAINING.1622-2RSNR.CLER HUS-580756102
...
29
WASHER 1.00 HUS-532444949
...
31
GEAR.59T For all EXCEPT 96191008800, 96193009701 HUS-588518601
...
3
ROD ROD,PIVOT, SWING PLATE ROD For all EXCEPT 96193009706, 96191008805 HUS-581123002
...
12
BEARING 9/16 ID. SNR HUS-580756201
...
27
NUT.HEX.FLANGE.LOCK.5/16-18 For 96191008805 HUS-585691501
...
8
BRACKET YOKE WELDMENT_MS 479 For all EXCEPT 96191008800, 96193009701 HUS-581454203
...
3
ROD ROD,PIVOT, SWING PLATE ROD For 96193009706, 96191008805 HUS-581123002
...
36
SLEEVE SLEEVE, AXLE SLEEVE HUS-580752501
...
18
BEARING HOUSING ASSY TRUNNION HUS-597412801
...
10
SPRING EXTENSION PS HUS-585263801
...
8
BRACKET YOKE WELDMENT_MS 479 For 96191008800, 96193009701 HUS-581454203
...
28
PAWL.ASM.LH.SNOW HUS-580756701
...
32
E RING HYT HUS-812000053
...
2
PLATE SWING FRICTION PULL_MS For 96191008800, 96193009701 HUS-581446903
...
34
RETAINER M HUS-532004497
...
1
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
11
NUT.HEX.FLANGE.LOCK.5/16-18 HUS-585691501
...
7
PULLEY ASSY TEXTURED TEXTURED For 96193009706, 96191008805 HUS-581328402
...
27
NUT.LOCK.5/16-18 For all EXCEPT 96191008805 HUS-532751153
...
33
AXLE AXLE, SPLIT SHAFT HUS-580752601
...
26
HEX SHAFT SERVICE KIT HUS-599265201
...
16
GEAR.ASM.PLANETARY HUS-580756001
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 For 96191008805 HUS-872110506
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 For all EXCEPT 96191008805 HUS-872110506
...
23
CLIP E-RING_.500 SHAFT HUS-586644301
...
5
SPRING LATCH HUS-532193885
...
7
PULLEY.FRICTION.DISC.COMBO For all EXCEPT 96193009706, 96191008805 HUS-581328401
...
35
RIVET,DRILLED HUS-532126875
...
21
PLATE.RUBBER.WHEEL.BLACK HUS-581091002
...
2
Plates For 96193009706, 96191008805 HUS-592723302
...
30
BUSHING.HEX.1.SHAFT For all EXCEPT 96191008800, 96193009701 HUS-587978901
...
22
Friction Drive For 96193009706, 96191008805 HUS-597362801
...
31
GEAR 59T DRIVEN PWR STR For 96191008800, 96193009701 HUS-580757301
...
19
HUB.ASM.RUBBER WHEEL.SNO HUS-588069201
...
9
SPRING TORSION DRIVE HUS-581315301
...
24
ROD ROD, PAWL ROD HUS-580755101
...
14
WASHER FLAT.637IDX1.00ODX21GA HUS-580751301
...
30
BUSHING.HEX.1.SHAFT For 96191008800, 96193009701 HUS-587978901

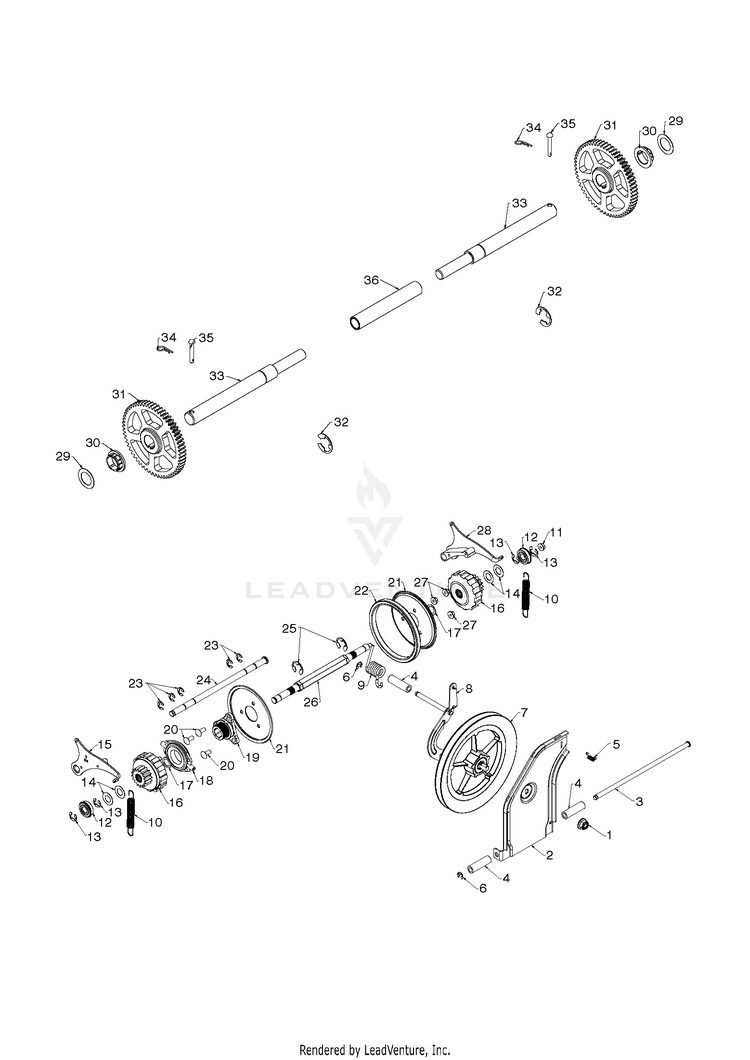

Schematic Image Zoomed
