Husqvarna ST 227P Snow Blower

Model: ST 227P

Back To Assemblies

Save Part Not Listed?
product name

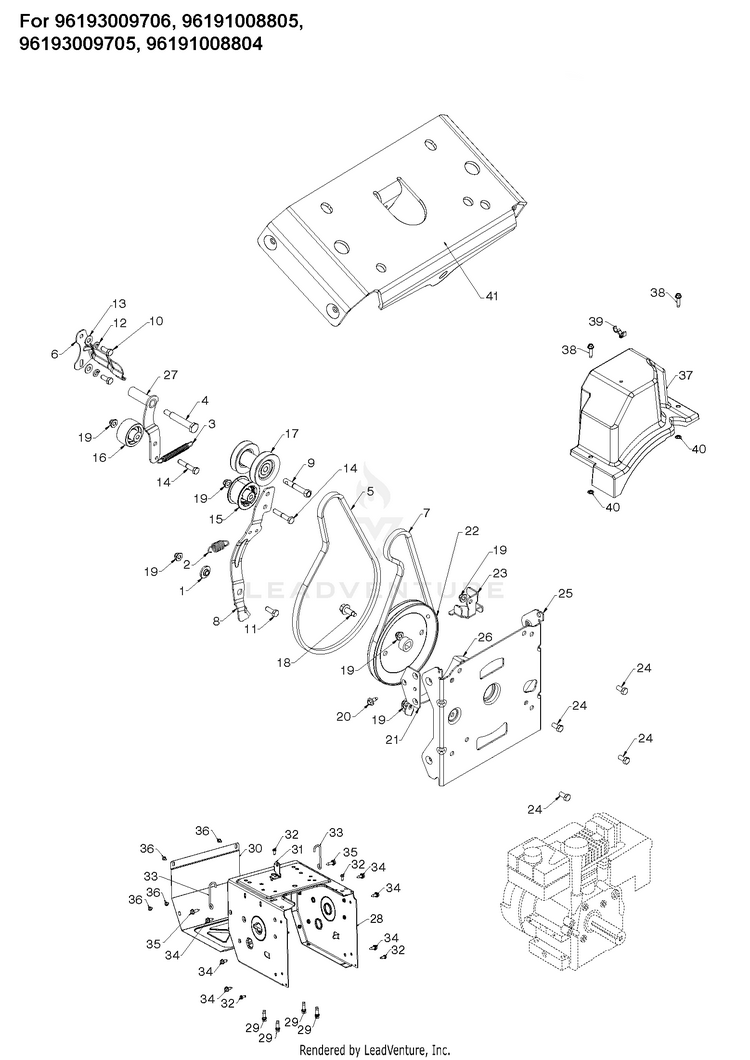

"CHASSIS, ENGINE & PULLEYS"

...
...
8
ARM.IDLER.AUTO-PH.676 HUS-580831106
...
7
LOW CRANK IMPELLER BELT HUS-501818201
...
25
NEEDS DESCRIPTION HUS-581592503
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96193009706, 96191008805 HUS-595517901
...
6
BELT KEEPER BRACKET HUS-588492802
...
32
SCREW.HEX HEAD W/COLLAR 1/4-20 HUS-582906901
...
31
BRACKET.SHIFTER.BZP HUS-501060403
...
4
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
xx
ENGINE.LCT.254CC.ALT.SNO For 96193009706, 96191008805, 96193009705, LCT - PW2HK18750178E HUS-585335706
...
19
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
12
WASHER SPRING LOCK WASHER WITH For 96193009706, 96191008805 HUS-596238801
...
xx
ENGINE.LCT.254CC.STORMFOR.ALT For 96191008804, LCT - PW2HK18750178Y HUS-585335704
...
13
WASHER 11/32 X 11/16 X 14 GA T For 96193009706, 96191008805 HUS-596204101
...
16
PULLEY.IDLER.FLNGLESS.W/SPACER HUS-586880202
...
30
COVER COVER.FRAME MS668 ORANGE HUS-580839505
...
36
SCREW.HEX HEAD W/COLLAR 1/4-20 For 96193009705, 96191008804, 96191008803, 96193009704 HUS-582906901
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96193009706, 96191008805 HUS-596322201
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96191008804, 96193009705 HUS-595517901
...
5
BELT.DRIVE.SNOW.DUAL HUS-584216102
...
12
WASHER SPRING LOCK WASHER WITH For 96191008804, 96193009705 HUS-596238801
...
40
HUS-000000000
...
14
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
24
Screws HUS-596031601
...
17
PULLEY.ASM.IMPELLER/DRIVE HUS-587893703
...
35
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
22
PULLEYS HUS-536862701
...
13
WASHER 11/32 X 11/16 X 14 GA T For 96191008804, 96193009705 HUS-596204101
...
38
HUS-000000000
...
1
BUSHING.BRAKE.ARM HUS-587343701
...
27
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
34
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
33
WIREFORM.SUPPORT.CABLE HUS-588954501
...
2
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
41
BRACKET.FRAME.SUPPORT.BLACK HUS-583940502
...
26
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
15
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
10
SCREW 5/16-24 X .75 GR5 HUS-874610512
...
20
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
39
PUSH CLIP HUS-532145006
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96191008804, 96193009705 HUS-596322201
...
3
SPRING RETURN IDLER ARM HUS-580753001
...
21
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
23
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
9
BOLT.ENGINE.PULLEY HUS-582388401
...
28
FRAME MS 668 HUS-589264705
...
37
COVER COVER.BELT HUS-581049901
...
29
BOLT 3/8-16X1-1/8 HUS-532150406
