Husqvarna ST 227P Snow Blower

Model: ST 227P

Back To Assemblies

Save Part Not Listed?
product name

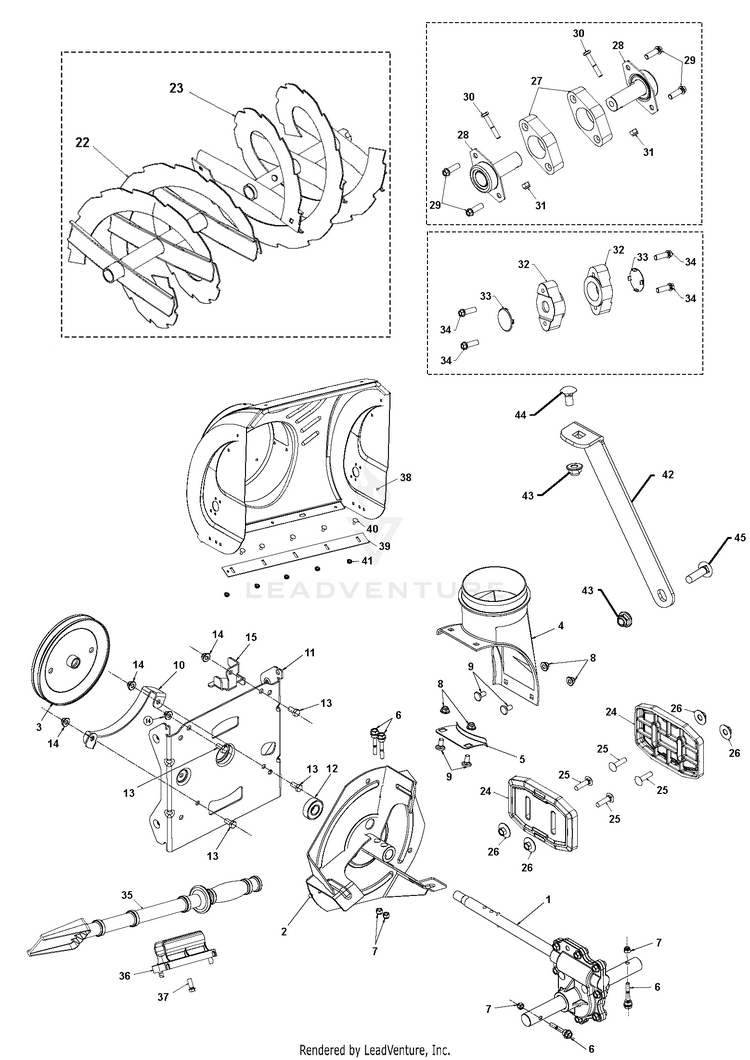

AUGER HOUSING & IMPELLER

...
...
1
Gears For 96193009705, 96191008804 HUS-582867602
...
14
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
6
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
39
BAR.SCRAPER.27.PNT.BLACK HUS-532404932
...
37
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
10
BRACKET.BELT.KEEPER.LOWER.BLAC For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804 HUS-581632002
...
2
IMPELLER STEEL.SNOW IMPELLER.S HUS-586607203
...
26
NUT.HEX.FL 5/16-18 TOP LCK BLK For all EXCEPT 96193009706, 96193009704 HUS-585802801
...
45
BOLT.CARRIAGE.5/16-18 For 96193009706, 96191008805, 96193009705, 96191008804 HUS-872110510
...
28
BALL BEARING AUGER BALL BEARIN For all EXCEPT 96191008805 HUS-594082801
...
22
AUGER.WELD.RIB.BUT.27.LH.GREY LH HUS-532436255
...
15
GUIDE.LOWER.AUGER.BELT.479 For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804, 96191008800, 96193009701 HUS-587587202
...
3
PULLEY SCREW ON 7.3 For 96191008800, 96193009701 HUS-586715201
...
27
BEARING RETAINER, PLASTIC For all EXCEPT 96191008805 HUS-532188170
...
25
BOLT CAR BLK 5/16-18 X 1-1/4 HUS-585802901
...
29
SCREW.HI-LO. 5/16 X 1.00 For all EXCEPT 96191008805 HUS-584299401
...
23
AUGER.WELD.RIB.BUT.27.RH.GREY RH HUS-532436256
...
31
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 96193009706, 96191008805 HUS-582478602
...
43
NUT HEX FLG NYLOCK BLK 5_16-1 For 96193009706, 96191008805, 96193009705, 96191008804 HUS-585691301
...
5
Brackets HUS-597433002
...
32
BEARING.AUGER.SHAFT For 96191008805 HUS-532420478
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C For 96193009706, 96191008805 HUS-582478602
...
12
BEARING HUS-532198791
...
11
NEEDS DESCRIPTION For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804 HUS-581592503
...
36
CLIP.CLEANOUT.TOOL HUS-532405400
...
24
PLATE.SKID.SHOE.COMPOSITE HUS-583838801
...
31
NUT FLG, NYLOCK, 1/4-20 GR G C For 96193009706 HUS-582478602
...
1
Gears For 96193009706, 96191008805 HUS-582867602
...
40
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
26
NUT.CENTERLOCK.5/16- For 96193009706, 96193009704 HUS-873930500
...
41
GSPW Hardware HUS-596039201
...
34
SCREW.HI-LO. 5/16 X 1.00 For 96191008805 HUS-584299401
...
9
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
...
3
PULLEY SCREW ON 7.3 5/8 For all EXCEPT 96191008800, 96193009701 HUS-587402401
...
30
BOLT HEXAGON BOLT 1/4-20 X 1-5 For all EXCEPT 96193009706, 96191008805 HUS-596322101
...
44
BOLT CAR BLK 5/16-18 X 5/8 For 96193009706, 96191008805, 96193009705, 96191008804 HUS-585832001
...
35
CLEAN OUT TOOL HUS-532192199
...
33
PLUG.BEARING.HOLE.HSG For 96191008805 HUS-532411939
...
30
BOLT HEXAGON BOLT 1/4-20 X 1-5 For 96193009706 HUS-596322101
...
13
Screws For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804 HUS-596031601
...
1
Service Kit For all EXCEPT 96193009705, 96191008804, 96193009706, 96191008805 HUS-598831601
...
4
CHUTE.DISCHARGE.BASE HUS-585056901
...
8
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
38
KIT.AUGER.HOUSING.586184005 HUS-581708398
...
42
BRACE SUPPORT GEARBOX 200 SERI For 96193009706, 96191008805, 96193009705, 96191008804 HUS-589323002
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 96193009706, 96191008805 HUS-582478602
