Husqvarna ST 227 Snow Blower

Model: ST 227

Back To Assemblies

Save Part Not Listed?
product name

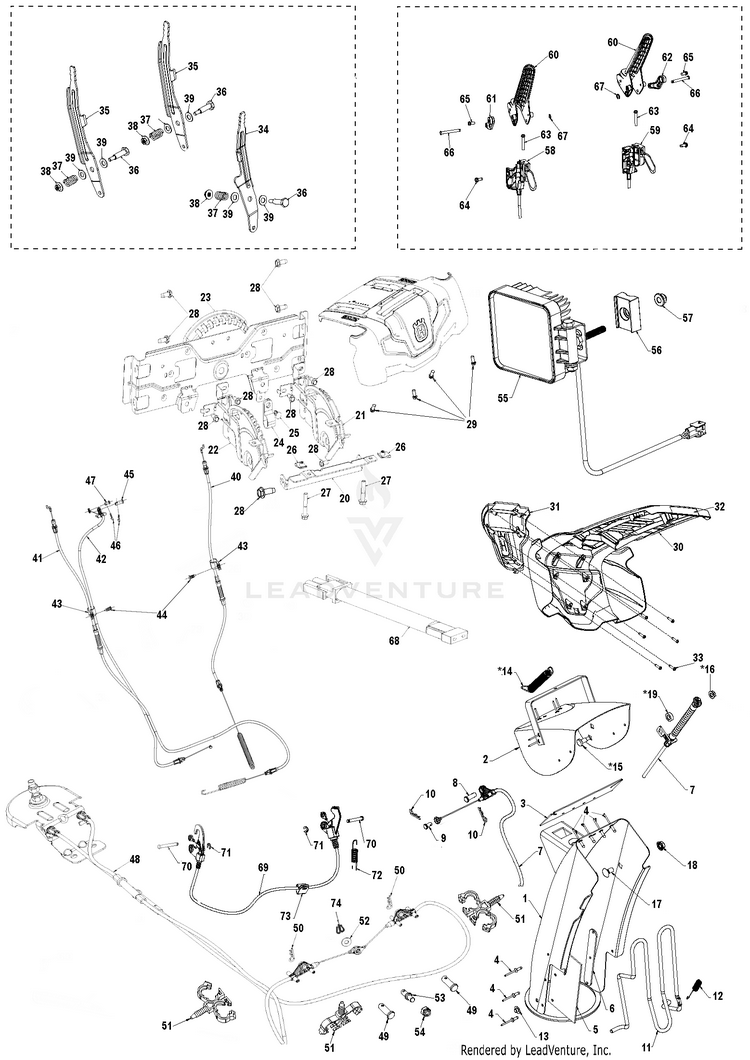

CONTROL PANEL & DISCHARGE CHUTE 2

...
...
30
Consoles For 97046900100, 97046890100 HUS-598803701
...
43
CLIP.CABLE.BLK HUS-532197991
...
3
SEAL HUS-000000000
...
33
SCREW For 97046900100, 97046890100 HUS-532163409
...
57
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
*17
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
*15
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
*18
Hardware HUS-596040501
...
68
Harnesses HUS-598458701
...
50
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
23
Brackets HUS-597992402
...
55
SERVICE KIT LIGHT SNOW LED For 97052870100, 97052870200 HUS-535543501
...
49
PIN CLEVIS 5/16X.875 HUS-581329401
...
24
CLIP.CABLE.BLK HUS-532197991
...
52
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
12
SPRING.CHUTE.GUARD HUS-532435616
...
54
PIN CLEVIS CLEVIS For 97046890100 HUS-587130803
...
8
PIN CLEVIS 5/16X.875 HUS-581329401
...
*19
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
48
Chutes HUS-598803401
...
20
Brackets HUS-597991902
...
38
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
34
Levers HUS-596786802
...
41
CABLE.CONTROL.AUGER HUS-588113802
...
58
CABLE.POWER STEERING.LHS HUS-588263901
...
51
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
2
DEFLECTOR HUS-000000000
...
32
Decals For 97046900100, 97046890100 HUS-598812001
...
66
PIN.GROOVED HUS-588147701
...
60
LEVER CONTROL DSST OPP MPP HUS-587463001
...
54
NUT FLG, NYLOCK, 1/4-20 GR G C For 97046900100, 97046890101 HUS-582478602
...
72
NEEDS DESCRIPTION For 97046900100, 97046890101, 97052870100 HUS-581151202
...
63
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
40
CABLE.DRIVE CONTROL W/ADJ HUS-582519002
...
*16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
29
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
*14
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
1
DEFLECTOR ASSEMBLY RIVETED INCLUDES KEY NUMBERS 1-6 HUS-590518207
...
42
Cables HUS-598450401
...
31
Consoles For 97046900100, 97046890100 HUS-598803801
...
39
WASHER, NYLON FRICTION HUS-532179246
...
6
RETAINER HUS-000000000
...
53
Clevis Pins HUS-596717201
...
21
Brackets HUS-597992202
...
62
LEVER.CABLE.ARM.RHS.BLACK HUS-587739702
...
70
PIN.GROOVED For 97046900100, 97046890101, 97052870100 HUS-583473901
...
27
SCREW.HEXCAP.1/4X-20X1.500 HUS-501406601
...
45
PIN CLEVIS 5/16X.875 PIN HUS-581329401
...
65
SCREW.HWH.13-16X.50 HUS-817411308
...
5
SHIELD HUS-000000000
...
56
MOUNTING BRACKET LIGHT MOUNTIN HUS-590439801
...
25
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
22
Brackets HUS-597992302
...
7
Controls HUS-598450501
...
11
GUARD ROD CHUTE GUARD SHORT CL HUS-593622201
...
71
E-RING For 97046900100, 97046890101, 97052870100 HUS-812000014
...
37
SPRING.COMPRESSION.82LBS HUS-581329601
...
13
PAL NUT PM HUS-582935201
...
26
1/4-20 U NUT HUS-532174814
...
36
BOLT SHOULDER_HEX HD_1/4-20_3/ HUS-581329702
...
59
CABLE.POWER STEERING.RHS HUS-588263902
...
9
PIN CLEVIS .25 X .31 HUS-585808301
...
61
LEVER.CABLE.ARM.LHS.BLACK HUS-587739701
...
4
POP RIVET HUS-000000000
...
47
PIN CLEVIS .25 X .31 PIN HUS-585808301
...
64
SCREW 14-20 X 5/8 HUS-817060410
...
44
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
46
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
67
E-RING HUS-812000014
...
69
CABLE INTERLOCK CONTROL ACETAL For 97046900100, 97046890101, 97052870100 HUS-593853401
...
73
CLIP.CABLE.BLK For 97046900100, 97046890101, 97052870100 HUS-532197991
...
35
LEVER.CONTROL.SPEED/DEFLEC.BLK HUS-581123902
...
28
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
