product name

Husqvarna ST 227 Snow Blower

Model: ST 227

Back To Assemblies

Save Part Not Listed?
product name

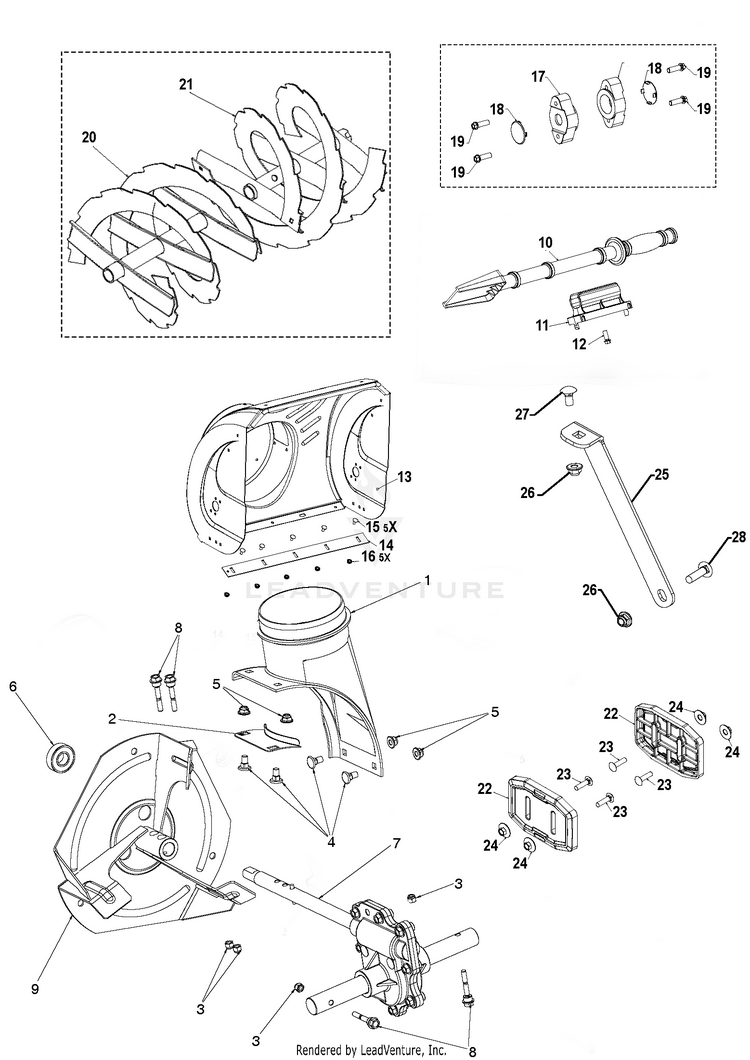

AUGER HOUSING & IMPELLER

...
...
9
IMPELLER STEEL.SNOW IMPELLER.S HUS-586607203
...
20
AUGER.WELD.RIB.BUT.27.LH.GREY For 97046900100 HUS-532436255
...
23
BOLT CAR BLK 5/16-18 X 1-1/4 HUS-585802901
...
8
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
28
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
17
BEARING.AUGER.SHAFT HUS-532420478
...
22
PLATE.SKID.SHOE.COMPOSITE HUS-583838801
...
20
AUGER.WELD.RIB.BUT.27.LH.GREY For 97046890101, 97046890100 HUS-532436255
...
2
Brackets HUS-597433002
...
6
BEARING HUS-532198791
...
21
AUGER.WELD.RIB.BUT.27.RH.GREY For 97046900100 HUS-532436256
...
26
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
18
PLUG.BEARING.HOLE.HSG HUS-532411939
...
16
GSPW Hardware HUS-596039201
...
24
NUT.CENTERLOCK.5/16- HUS-873930500
...
12
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
27
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
3
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
KIT.AUGER.HOUSING.586184005 HUS-581708398
...
19
SCREW.HI-LO. 5/16 X 1.00 HUS-584299401
...
10
CLEAN OUT TOOL HUS-532192199
...
4
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
...
11
CLIP.CLEANOUT.TOOL HUS-532405400
...
1
CHUTE.DISCHARGE.BASE HUS-585056901
...
21
AUGER.WELD.RIB.BUT.27.RH.GREY For 97046890101, 97046890100 HUS-532436256
...
7
ALUMINUM GEARBOX KIT HUS-546035401
...
15
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
25
BRACE SUPPORT GEARBOX 200 SERI HUS-589323002
...
14
BAR.SCRAPER.27.PNT.BLACK HUS-532404932
...
5
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
