product name

Husqvarna ST 224P Snow Blower

Model: ST 224P

Back To Assemblies

Save Part Not Listed?
product name

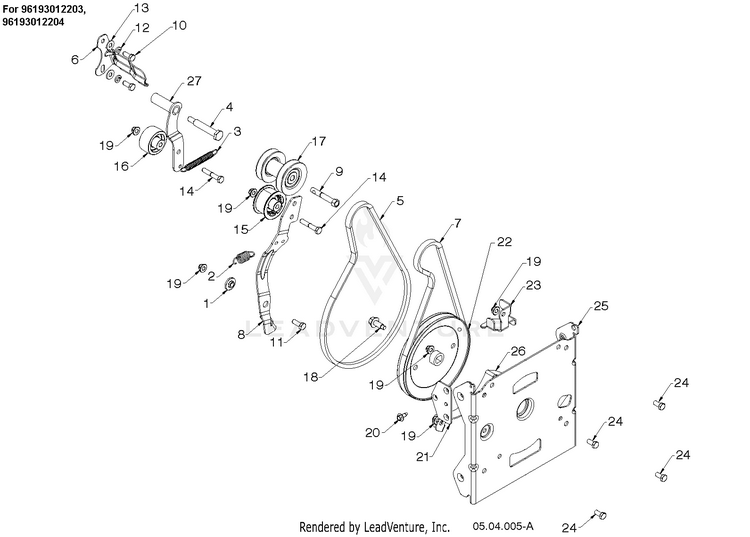

"CHASSIS, ENGINE & PULLEYS" 4

...
...
26
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
4
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
13
WASHER 11/32 X 11/16 X 14 GA T For 96193012204 HUS-596204101
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96193012204 HUS-595517901
...
3
SPRING RETURN IDLER ARM HUS-580753001
...
16
PULLEY.IDLER.FLNGLESS.W/SPACER HUS-586880202
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96193012203 HUS-595517901
...
22
PULLEYS HUS-536862701
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96193012204 HUS-596322201
...
25
NEEDS DESCRIPTION HUS-581592503
...
19
NUT HEXAGON FLANGE 5/16-18 ST For 96193012204 HUS-594944401
...
24
Screws For 96193012204 HUS-596031601
...
2
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
23
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
12
WASHER SPRING LOCK WASHER WITH For 96193012203 HUS-596238801
...
20
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
5
BELT.DRIVE.SNOW.DUAL HUS-584216102
...
15
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
1
BUSHING.BRAKE.ARM HUS-587343701
...
27
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
21
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
13
WASHER 11/32 X 11/16 X 14 GA T For 96193012203 HUS-596204101
...
12
BALL BEARING AUGER BALL BEARIN For 96193012204 HUS-594082801
...
10
SCREW 5/16-24 X .75 GR5 HUS-874610512
...
6
BELT KEEPER BRACKET HUS-588492802
...
24
Screws For 96193012203 HUS-596031601
...
17
PULLEY.ASM.IMPELLER/DRIVE HUS-587893703
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96193012203 HUS-596322201
...
14
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
9
BOLT.ENGINE.PULLEY HUS-582388401
...
19
NUT HEXAGON FLANGE 5/16-18 ST For 96193012203 HUS-594944401
...
7
LOW CRANK IMPELLER BELT HUS-501818201
...
8
ARM.IDLER.AUTO-PH.676 HUS-580831106
Schematic Image Zoomed
