product name

Husqvarna ST 224P Snow Blower

Model: ST 224P

Back To Assemblies

Save Part Not Listed?
product name

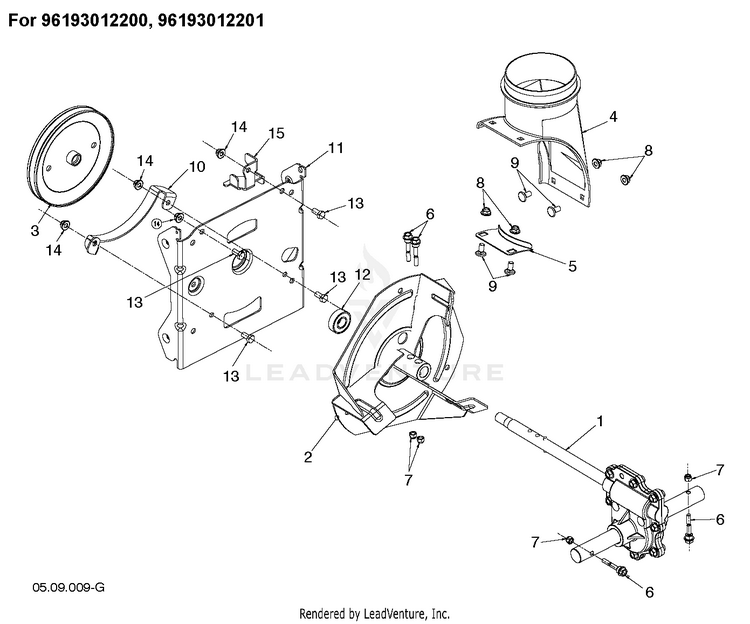

AUGER HOUSING & IMPELLER 3

...
...
4
CHUTE.DISCHARGE.BASE HUS-585056901
...
3
PULLEY SCREW ON 7.3 5/8 HUS-587402401
...
5
Brackets HUS-597433002
...
13
Screws HUS-596031601
...
6
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
9
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
...
11
NEEDS DESCRIPTION HUS-581592503
...
10
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
14
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
12
BEARING HUS-532198791
...
15
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
2
IMPELLER STEEL.SNOW IMPELLER.S HUS-586607203
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
1
Service Kit HUS-598831601
...
8
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
Schematic Image Zoomed
