Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

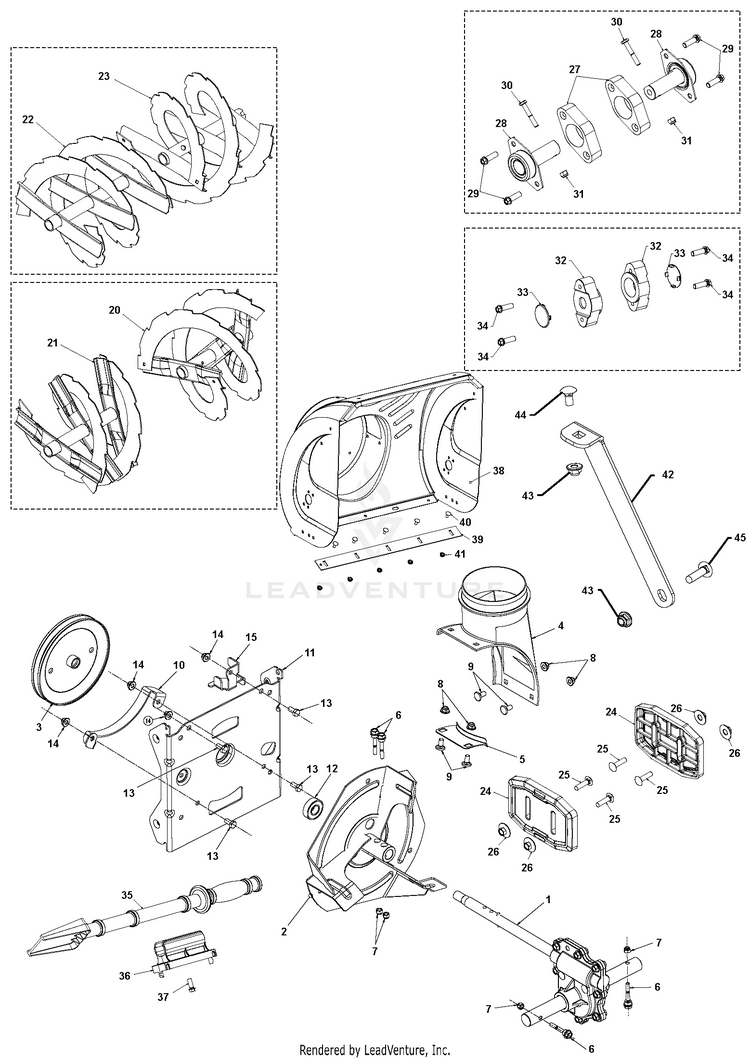

AUGER HOUSING & IMPELLER

...
...
41
GSPW Hardware For 97046850100, 97046850101, 97046860100, 97046860101 HUS-596039201
...
23
AUGER.WELD.RIB.BUTTON.24.LT.49 For 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 HUS-587191001
...
34
SCREW.HI-LO. 5/16 X 1.00 For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-584299401
...
12
BEARING HUS-532198791
...
3
PULLEY SCREW ON 7.3 For 96191008700, 96193009601 HUS-586715201
...
32
BEARING.AUGER.SHAFT For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-532420478
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-582478602
...
1
ALUMINUM GEARBOX KIT For 97046850100, 97046850101, 97046860100, 97046860101 HUS-546035401
...
10
BRACKET.BELT.KEEPER.LOWER.BLAC For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-581632002
...
36
CLIP.CLEANOUT.TOOL HUS-532405400
...
3
PULLEY SCREW ON 7.3 5/8 For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-587402401
...
21
AUGER.WELD.RIB.BUT.24".RH.GREY For 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 HUS-585544201
...
5
Brackets For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-597433002
...
22
AUGER.WELD.RIB.BUT.24".RH.GREY For 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 HUS-585544201
...
5
Brackets For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-597433002
...
35
CLEAN OUT TOOL HUS-532192199
...
6
BOLT SHEAR HX HD 1/4-20 CLEAR For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-588077502
...
1
Gears For 96191008704, 96193009605, 96191008705, 96193009606 HUS-582867602
...
26
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
11
NEEDS DESCRIPTION For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-581592503
...
15
GUIDE.LOWER.AUGER.BELT.479 For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-587587202
...
20
AUGER.WELD.RIB.BUTTON.24.LT.49 For all EXCEPT 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 HUS-587191001
...
41
GSPW Hardware For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-596039201
...
29
SCREW.HI-LO. 5/16 X 1.00 For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-584299401
...
44
BOLT CAR BLK 5/16-18 X 5/8 For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-585832001
...
45
BOLT.CARRIAGE.5/16-18 For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-872110510
...
31
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-582478602
...
6
BOLT SHEAR HX HD 1/4-20 CLEAR For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-588077502
...
28
BALL BEARING AUGER BALL BEARIN For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-594082801
...
14
NUT HEXAGON FLANGE 5/16-18 ST For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-594944401
...
25
BOLT CAR BLK 5/16-18 X 1-1/4 HUS-585802901
...
38
KIT.AUG.HOUSING.586183905.668 HUS-581708390
...
40
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
37
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
8
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
30
BOLT HEXAGON BOLT 1/4-20 X 1-5 For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-596322101
...
13
Screws For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-596031601
...
1
ALUMINUM GEARBOX KIT for 970528601,970528602 HUS-546035401
...
39
SERVICE KIT SCRAPER BAR.SCRAPE HUS-531064001
...
42
BRACE SUPPORT GEARBOX 200 SERI For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-589323002
...
24
PLATE.SKID.SHOE.COMPOSITE HUS-583838801
...
1
Service Kit For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-598831601
...
4
CHUTE.DISCHARGE.BASE HUS-585056901
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-582478602
...
43
NUT HEX FLG NYLOCK BLK 5_16-1 For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-585691301
...
2
IMPELLER STEEL.SNOW IMPELLER.S HUS-586607203
...
27
BEARING RETAINER, PLASTIC For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-532188170
...
33
PLUG.BEARING.HOLE.HSG For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-532411939
...
9
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
