product name

Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

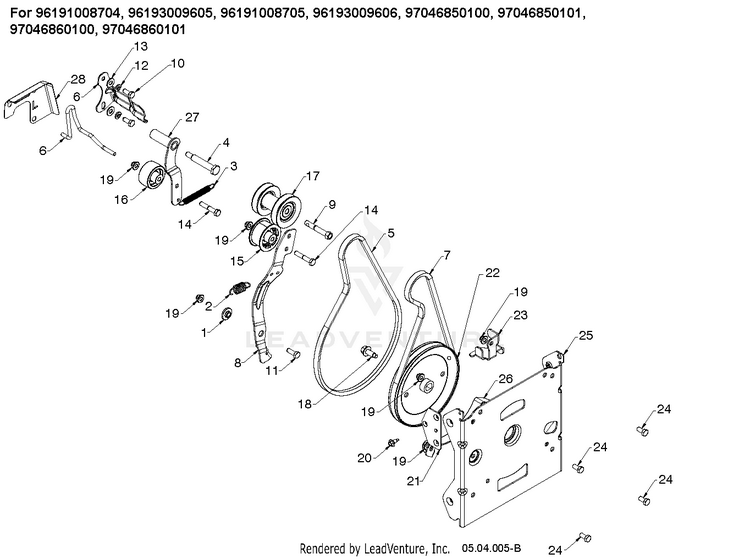

CHASSIS, ENGINE & PULLEYS 4

...
...
14
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
19
NUT HEXAGON FLANGE 5/16-18 ST For 96191008704, 96193009605 HUS-594944401
...
22
PULLEYS For 970528601, 970528602 HUS-536862701
...
10
SCREW For 97046850101, 97046860101 HUS-874610516
...
5
Belts For 97046850101, 97046860101 HUS-582640701
...
4
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
24
Screws For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-596031601
...
19
NUT HEXAGON FLANGE 5/16-18 ST For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-594944401
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-595517901
...
13
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-596322201
...
1
BUSHING.BRAKE.ARM HUS-587343701
...
16
PULLEYIDLER.2.0.W/SPACER.CZ For 97046850101, 97046860101 HUS-581141402
...
5
BELT.DRIVE.SNOW.DUAL For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100 HUS-584216102
...
25
NEEDS DESCRIPTION HUS-581592503
...
15
PULLEY.IDLER.FLNGLESS.W/SPACER For 97046850100, 97046860100 HUS-586880202
...
8
ARM.IDLER.AUTO-PH.676 HUS-580831106
...
18
SCREW HEXAGON HEAD FLANGE 3/8- For 96191008704, 96193009605 HUS-595517901
...
22
PULLEYS HUS-536862701
...
3
SPRING RETURN IDLER ARM HUS-580753001
...
7
LOW CRANK IMPELLER BELT HUS-501818201
...
10
SCREW 5/16-24 X .75 GR5 For 96191008704, 96193009605, 96191008705, 96193009606 HUS-874610512
...
18
BOLT For 970528601, 970528602 HUS-874760612
...
23
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
24
Screws For 96191008704, 96193009605 HUS-596031601
...
2
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
15
PULLEYIDLER.2.0.W/SPACER.CZ For 96191008704, 96193009605, 96191008705, 96193009606, 97046850101, 97046860101 HUS-581141402
...
25
NEEDS DESCRIPTION For 970528601, 970528602 HUS-581592503
...
12
WASHER SPRING LOCK WASHER WITH For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-596238801
...
17
PULLEY.ASM.IMPELLER/DRIVE For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100 HUS-587893703
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ For 96191008704, 96193009605 HUS-596322201
...
28
Cranks For 97046850101, 97046860101 HUS-598711902
...
16
PULLEY 4L GEAR - LC for 970528601,970528602 HUS-598815602
...
27
ARM DRIVE IDLER CLEAR ZINC PLA For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100 HUS-593192502
...
6
BELT KEEPER BRACKET For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100 HUS-588492802
...
20
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
6
Belt Keepers For 97046850101, 97046860101 HUS-598644401
...
16
PULLEY.IDLER.FLNGLESS.W/SPACER For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100 HUS-586880202
...
26
ARM DRIVE IDLER CLEAR ZINC PLA For 97046850101, 97046860101 HUS-593192502
...
27
ARM DRIVE IDLER CLEAR ZINC PLA For 97046860101 HUS-593192502
...
12
WASHER SPRING LOCK WASHER WITH For 96191008704, 96193009605 HUS-596238801
...
21
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
26
BRACKET.BELT.KEEPER.LOWER.BLAC For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100 HUS-581632002
...
9
BOLTS for 970528601,970528602 HUS-598758701
...
17
Engines For 97046850101, 97046860101 HUS-589262203
...
9
BOLT.ENGINE.PULLEY HUS-582388401
