product name

Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

ENGINE 2

...
...
6
For 96193009605, 96191008705, 96193009606. NOT AVAILABLE FOR THIS ENGINE. HUS-000000000
...
50
HEATER.BOX.ASY-GEN2 For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-532436561
...
81
KEYS.FLYWHEEL.208/414CC.5PACK HUS-585297201
...
22
SHIELD.FLYWHEEL.ELEC.STRT.208C For 96191008704, 96193009605, 96191008705, 96193009606 HUS-585772401
...
89
KNOB LCT.SKSN5325.1 SPEED For all EXCEPT 96193009605, 96193009606 HUS-587124801
...
5
KIT.PISTON.SRV(SK208-1400) HUS-532420582
...
15
FUEL.PETCOCK.SNOW(SKSN4900) HUS-532429234
...
27
KIT.GOVERNOR.CRANK(SK208-3100) HUS-532420602
...
58
GOVERNOR.LINK.SHIELD PLATE For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-532424960
...
57
For all EXCEPT 96191008700, 96193009601, 96193009602. NOT REQUIRED FOR THIS ENGINE. HUS-000000000
...
53
SWITH.KEY.ASSEM.SNOW.SINGLE.ST HUS-532424954
...
48
WIRE.HARNESS.SNOW For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-532429262
...
65
TAPPET.KIT.LCT.208CC HUS-581372801
...
62
For 96193009605, 96191008705, 96193009606. NOT AVAILABLE FOR THIS ENGINE. HUS-000000000
...
47
TUBE ASSY HIGH OIL-FILL HUS-581007201
...
9999
GUARD.MUFFLER.MANIFOLD.LCT For 96193009603, 96193009604 HUS-590640101
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
86
KIT.BOLT.CYLINDER.HEAD.(4PC) For all EXCEPT 96193009605, 96191008705, 96193009606 HUS-586327301
...
37
DIPSTICK SMALL HUS-532420961
...
35
STARTER 230C EL START.LCT SKSN For 96191008704, 96191008705 HUS-595915501
...
9999
STARTER SCREW.STARTER SWITCH B For 96191008704, 96193009605, 96191008705, 96193009606 HUS-590920801
...
30
BLOWER HOUSING ASSY For 96193009601, 96193009602, 96193009603, 96193009604, 96191008704, 96193009605, 96191008705, 96193009606 HUS-581192001
...
22
SHLD.ELEC.START.FLY(SKSN-0605) For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-532424975
...
8
FLYWHEEL ELECTRIC START W/6 MA For 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-595012401
...
28
RECOIL.STRT.ROUND(BLK) SNOW HUS-532436967
...
17
CARB.GEN2.W/O.SPACER.LCT.208CC For 96191008700 HUS-585020402
...
58
SHIELD GOVENOR & CARB - COMPOS For 96191008704, 96193009605, 96191008705, 96193009606. Includes 56,79,80. HUS-595012701
...
42
NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
50
BOX HEATER.W/O OFF/ON SWITCH.L For 96191008704, 96193009605, 96191008705, 96193009606 HUS-595012601
...
51
SHIELD.CYLINGER.LCT.SKSN0608.2 HUS-583516301
...
70
CARBURETOR.REPAIR KIT.LCT. For 96191008704, 96193009605, 96191008705, 96193009606 HUS-580353602
...
69
CARB.STUDS & COUPLING KIT.SNOW HUS-532424951
...
56
SHIELD.VAPOR.SNOW For all EXCEPT 96193009605, 96191008705, 96193009606 HUS-532429260
...
18
COIL.ING.CDI.HI TEMP.SKSNO416. For 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 HUS-532443894
...
4
For all EXCEPT 96191008700, 96193009601, 96193009602. NOT REQUIRED FOR THIS ENGINE. HUS-000000000
...
17
CARBURETTOR L10-1D.W/SP For all EXCEPT 96191008700 HUS-587147901
...
1
CYLINDER HEAD.208CC.EPA W/GASK with gasket HUS-582045701
...
59
FUEL.TNK.SKRT.GENII.SKSN0103.1 HUS-532436562
...
89
For 96193009605, 96193009606 HUS-000000000
...
62
HANDLE.RECOIL.DELUXE.LCT For 96191008700, 96191008701, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704 HUS-532443899
...
91
COVER CRANKCASE GASKET HUS-587525701
...
97
GUARD.MUFFLER.MANIFOLD.LCT For 96191008704, 96193009605, 96191008705, 96193009606 HUS-590640101
...
87
KIT.BOLT.CRANKCASE.COVER.6PC HUS-586326901
...
8
FLYWHEEL ELECTRIC START W/6 MA For 96191008704, 96193009605, 96191008705, 96193009606 HUS-595012401
...
10
CRNKSHFT-KYD#14.208CCSKSNO8001 HUS-584362101
...
79
COVER.CARBURETOR.SNOW For all EXCEPT 96193009605, 96191008705, 96193009606 HUS-585773701
...
36
GASKET.KIT.208CC(SK2084300.1) HUS-532429601
...
48
HARNESS WIRE. W/O OFF/ON SWITC For 96191008704, 96193009605, 96191008705, 96193009606 HUS-595012501
...
9999
HIGH.ALTITUDE.JET 6,000FT For all EXCEPT 96191008704, 96191008705 HUS-586326201
...
23
KIT.FUEL.HOSE.208CC.SING/STAGE HUS-532438014
...
72
For 96191008700, 96193009601, 96193009602, 96193009605. NOT REQUIRED FOR THIS ENGINE. HUS-000000000
...
9
FLYWHEEL FAN 420586 HUS-532420586
...
8
FLYWHL.ASSY.ELECT.(SKSN0405) For 96191008700 HUS-532429235
...
62
HANDLE.RECOIL.DELUXE.LCT For 96193009601, 96193009602 HUS-532443899
...
38
ROCKER ARM KIT HUS-532429691
...
21
For 96193009605, 96191008705, 96193009606. NOT AVAILABLE FOR THIS ENGINE. HUS-000000000
...
61
FUEL KNOB-SNOW HUS-532432752
...
88
STUD.MUFFLER.KIT.LCT HUS-586326801
...
14
FUEL.TK.ASSY.GENII.SKSN0311.1 HUS-532436564
...
55
OIL PIPE DRAIN LCT 254 For 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-587154401
...
18
208CC IGN COIL (STD) For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705, 96193009606 HUS-532443934
...
82
SPACER.CARBURETOR.208CC.LCT HUS-585020503
...
70
CARB.REPAIR.KIT.LCT.SK9900.2 For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-580353601
...
13
MUFFLER KIT LCT SKSN2205.1 For 96191008700, 96193009601, 96193009602 HUS-587737801
...
30
BLOWER.HOUSING.ELEC.START.LCT For 96191008700, 96191008701, 96191008702, 96191008703 HUS-580960501
...
74
SHIELD.MUFFLER.CE.COMPLIANT For 96193009601, 96193009602 HUS-532436672
...
31
CRANKCASE.CVR.PRESS.IN.HI-OIL. For 96191008700 HUS-585772701
...
72
KIT.ENGINE.DECAL.208CC.LCT.SK1 For 96191008701, 96191008702, 96193009603, 96193009604, 96191008703 HUS-532435647
...
4
CYLINDER.ASM.SKSN0001.2 For 96191008700 HUS-532436567
...
54
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
43
TUBE.BREATHER.LCT.208 HUS-580353401
...
19
For all EXCEPT 96191008700. NOT REQUIRED FOR THIS ENGINE. HUS-000000000
...
72
HOP SNOW DECAL KIT For 96191008704, 96191008705, 96193009606. NOT AVAILABLE FOR THIS ENGINE. HUS-532435648
...
60
CHARGING.COIL(ELEC)SKSN0406.1 For 96191008700 HUS-532424959
...
7
CAMSHAFT.208CC.EPA HUS-582051401
...
29
STRTER.CUP(NON-SLOT)SKSN0601.2 HUS-532436968
...
57
SHIELD.MUFFLER.CE.COMPLIANT For 96191008700, 96193009601, 96193009602 HUS-532436672
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
74
MUFFLER GUARD.EUR./LCT.SKSN220 For all EXCEPT 96193009601, 96193009602 HUS-587821101
...
19
CDI.BOX SNOW For 96191008700 HUS-532424955
...
16
FUEL CAP OVERSIZED CLICK STYLE HUS-532424942
...
35
ELEC.START.GEN2.SKSN0451.1 For 96193009601, 96193009602, 96193009603, 96193009604, 96193009605, 96193009606 HUS-532436466
...
39
CHOKE.KNOW.SNOW(SKSN4500) HUS-532429224
...
6
KIT.CONNECT.ROD.SRV(SK208-1500 For all EXCEPT 96193009605, 96191008705, 96193009606 HUS-532420583
...
2
KIT.PUSH.ROD.SRV(SK208-1001) HUS-532420579
...
80
NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
40
NON REMOVABLE PLUG HUS-532429598
...
49
KIT.OIL.DRAIN.PLUG(SK2089911 HUS-532435495
...
55
EXTENDED OIL DRAIN TUBE For 96191008700, 96191008704, 96193009605, 96191008705, 96193009606 HUS-532432686
...
86
BOLT KIT.CYLINDER HEAD.LCT(4)1 For 96193009605, 96191008705, 96193009606 HUS-586327302
...
24
SPEED.CTRL.BRKT.(SKSN0150) HUS-532429259
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
20
SPARK.PLUG(2083810) HUS-532424939
...
4
CYLINDER LCT.208 GEN II SNO For 96193009601, 96193009602 HUS-587147501
...
35
EURO.230V.ELECT.ST(SKSN0452.1) For 96191008700, 96191008701, 96191008702, 96191008703 HUS-583510401
...
26
CARBURETTOR GOVERNOR LINK.ASM. HUS-581768701
...
32
SEAL KIT (2 PCS) HUS-532429599
...
13
MUFFLER KIT LCT SKSN2205.1 For all EXCEPT 96191008700, 96193009601, 96193009602 HUS-587737801
...
21
SWITCH.ON/OFF(SKSN-0403) For all EXCEPT 96193009605, 96191008705, 96193009606 HUS-532424957
...
9999
KIT.BOLT.LCT.SK9990.1 For all EXCEPT 96193009601 HUS-579806401
...
31
COVER.CRANKCASE.LCT.HIGH.OIL.F For 96191008701, 96191008702, 96191008703 HUS-532443773
...
3
VALVE COVER LCT 179/208 HUS-587176901
...
60
208CC 60W ALTERNATOR For all EXCEPT 96191008700 HUS-532443893
...
78
BRACKET HUS-581459301
...
56
For 96193009605, 96191008705, 96193009606 HUS-000000000
...
52
PRIMER.BULB.WITH HOSE (SNOW) HUS-532424949
...
79
For 96193009605, 96191008705, 96193009606 HUS-000000000
...
25
GOVENOR.GEARS ASM(SK2082900) HUS-532429646
...
31
COVER CRANKCASE.LCT.SK2083605 For 96193009601, 96193009602, 96193009603, 96193009604, 96191008704, 96193009605, 96191008705, 96193009606 HUS-581007301

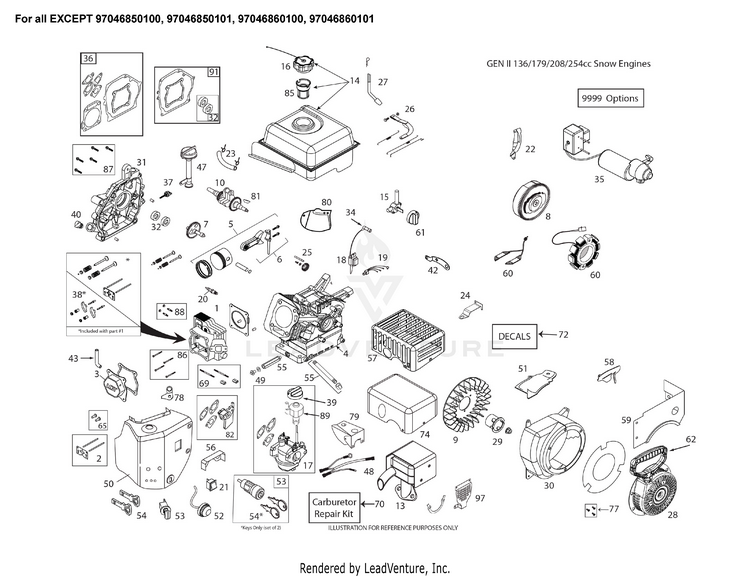

Schematic Image Zoomed
