product name

Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

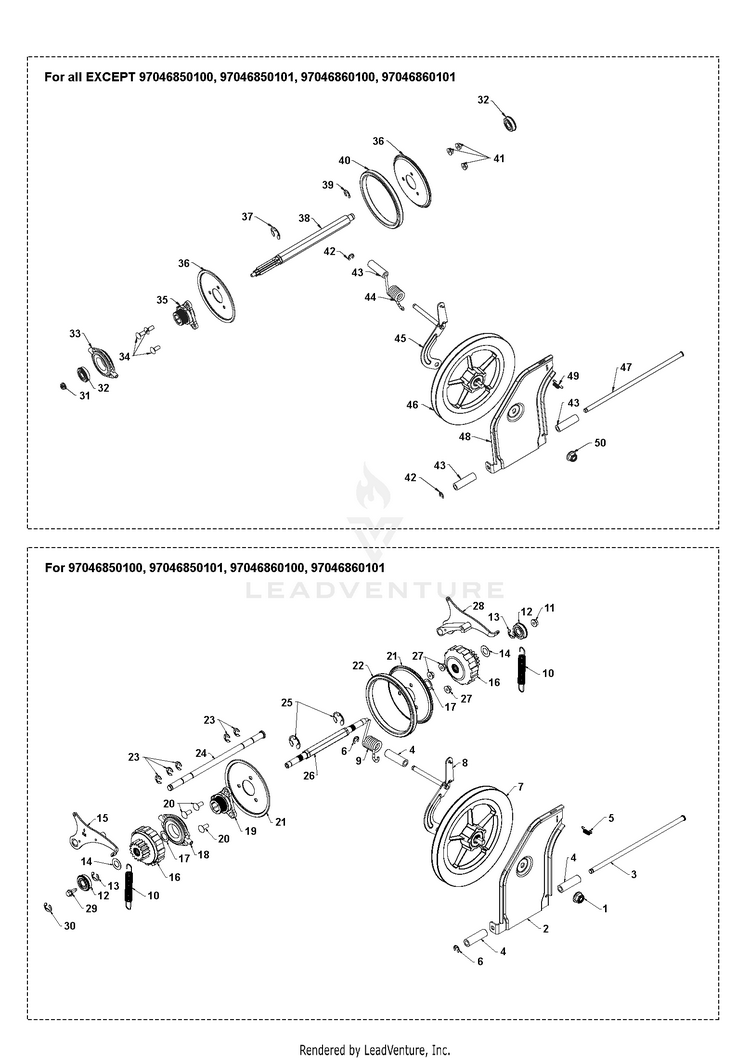

DRIVE 2

...
...
6
RETAINER RING E-RING CLEAR ZI HUS-595841101
...
12
BEARING 9/16 ID. SNR HUS-580756201
...
41
NUT.LOCK.5/16-18 HUS-532751153
...
21
PLATE.RUBBER.WHEEL.BLACK HUS-581091002
...
20
RHSNB 5/16-18 X 3/4 HUS-539109100
...
38
SHAFT SHAFT,7T REDUCTION HUS-581121901
...
49
SPRING LATCH HUS-532193885
...
45
BRACKET YOKE WELDMENT_MS 479 HUS-581454203
...
35
HUB.ASM.RUBBER WHEEL.SNO HUS-588069201
...
19
HUB.ASM.RUBBER WHEEL.SNO HUS-588069201
...
30
RING.RETAINING.1622-2RSNR.CLER For 97046850100, 97046860100 HUS-580756102
...
4
SPACER YOKE, TORSION SPRING For 97046850100, 97046850101, 97046860101 HUS-581732701
...
17
WASHER FLAT.59IDX1.065ODX25GA HUS-580756301
...
18
BEARING HOUSING ASSY TRUNNION For 97046850100, 97046860100 HUS-597412801
...
43
SPACER YOKE, TORSION SPRING HUS-581732701
...
28
PAWL.ASM.LH.SNOW HUS-580756701
...
24
ROD ROD, PAWL ROD HUS-580755101
...
23
CLIP E-RING_.500 SHAFT HUS-586644301
...
29
SCREW HEXAGON HEAD FLANGE 5/16 For 97046850101, 97046860101 HUS-595517701
...
2
PLATE.SWING.FRICTION PULLEY.47 For 97046850100, 97046850101, 97046860100 HUS-587703402
...
50
NUT 1/2-13 HEX FLANGE NYLOK CL For 96191008705, 96193009606 HUS-521991102
...
4
RETAINER RING E-RING CLEAR ZI For 97046860100 HUS-595841101
...
40
Friction Drive HUS-597362801
...
7
PULLEY.FRICTION.DISC.COMBO For 97046850101, 97046860100 HUS-581328401
...
44
SPRING TORSION DRIVE HUS-581315301
...
5
SPRING LATCH HUS-532193885
...
47
ROD ROD,PIVOT, SWING PLATE ROD For 96191008705, 96193009606 HUS-581123002
...
31
NUT.HEX.FLANGE.LOCK.5/16-18 HUS-585691501
...
26
HEX SHAFT SERVICE KIT For 97046850100, 97046860100 HUS-599265201
...
9
Engines For 97046850100 HUS-589262203
...
1
NUT 1/2-13 HEX FLANGE NYLOK CL For 97046850101, 97046860100, 97046860101 HUS-521991102
...
10
SPRING EXTENSION PS HUS-585263801
...
22
Friction Drive For 97046850100, 97046850101, 97046860100 HUS-597362801
...
3
ROD ROD,PIVOT, SWING PLATE ROD For 97046850100 HUS-581123002
...
1
NUT 1/2-13 HEX FLANGE NYLOK CL For 97046850100 HUS-521991102
...
39
RING.RETAINING.1622-2RSNR.CLER HUS-580756102
...
33
BEARING HOUSING ASSY TRUNNION For 96191008705, 96193009606 HUS-597412801
...
7
PULLEY ASSY TEXTURED TEXTURED For 97046850100, 97046850101, 97046860101 HUS-581328402
...
42
RETAINER RING E-RING CLEAR ZI HUS-595841101
...
18
BEARING HOUSING ASSY TRUNNION For 97046850101, 97046860101 HUS-597412801
...
3
ROD ROD,PIVOT, SWING PLATE ROD For 97046850101, 97046860100, 97046860101 HUS-581123002
...
2
PLATE TIP PULLEY SLOTTED MS431 For 97046850101, 97046860101 HUS-531447002
...
37
E-RING HUS-812000022
...
33
BEARING HOUSING ASSY TRUNNION For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-597412801
...
48
PLATE.SWING.FRICTION PULLEY.47 For all EXCEPT 96191008700, 96193009601, 97046850100, 97046850101, 97046860100, 97046860101 HUS-587703402
...
46
PULLEY.FRICTION.DISC.COMBO HUS-581328401
...
26
Shafts For 97046850101, 97046860101 HUS-596670901
...
36
PLATE.RUBBER.WHEEL.BLACK HUS-581091002
...
34
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
22
Friction Drive For 97046850101, 97046860101 HUS-597362801
...
8
BRACKET YOKE WELDMENT_MS 479 HUS-581454203
...
27
NUT.LOCK.5/16-18 HUS-532751153
...
32
BEARING 9/16 ID. SNR HUS-580756201
...
13
RING.RETAINING.1622-2RSNR.CLER HUS-580756102
...
14
WASHER FLAT.637IDX1.00ODX21GA HUS-580751301
...
48
PLATE SWING FRICTION PULL_MS For 96191008700, 96193009601 HUS-581446903
...
11
NUT.HEX.FLANGE.LOCK.5/16-18 HUS-585691501
...
9
SPRING TORSION DRIVE For 97046850101, 97046860100, 97046860101 HUS-581315301
...
50
NUT 1/2-13 HEX FLANGE NYLOK CL For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-521991102
...
15
PAWL.ASM.RH.SNOW HUS-580756601
...
16
GEAR.ASM.PLANETARY HUS-580756001
...
47
ROD ROD,PIVOT, SWING PLATE ROD For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-581123002
...
25
E-RING HUS-812000022
