Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

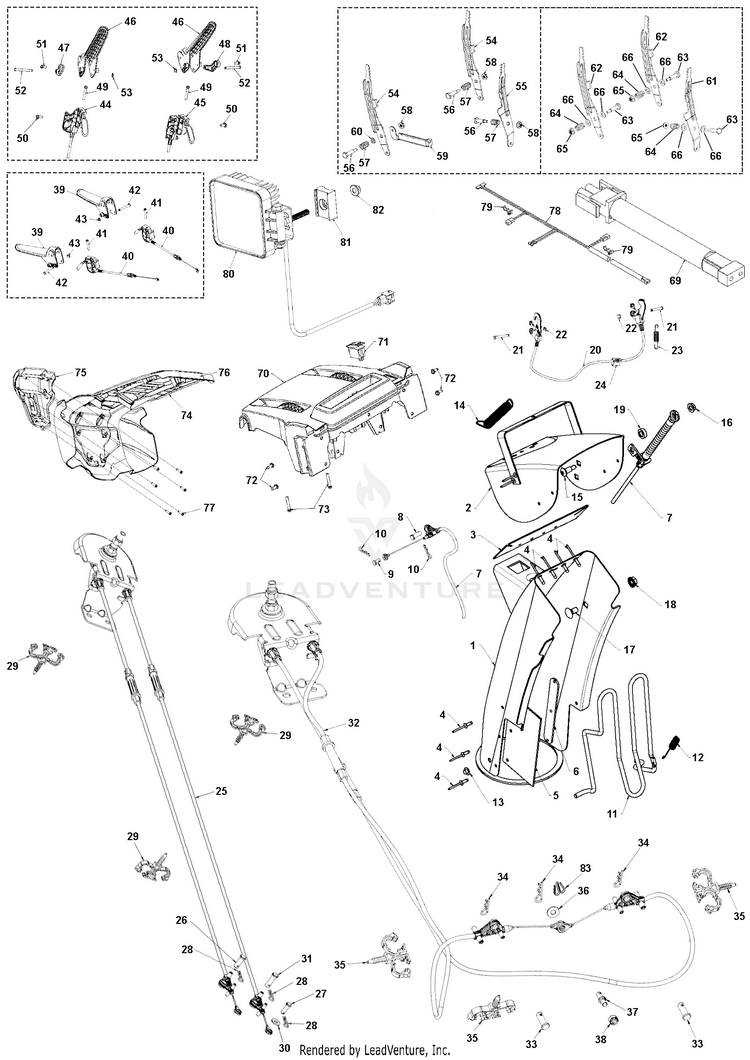

CONTROL PANEL & DISCHARGE CHUTE 3

...
...
11
ROD.GUARD.CHUTE (2 2) For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705 HUS-532435582
...
72
SCREW 14-20 X 5/8 For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-817060410
...
13
PAL NUT PM For 97046860100 HUS-582935201
...
8
PIN CLEVIS 5/16X.875 HUS-581329401
...
51
SCREW.HWH.13-16X.50 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-817411308
...
7
CABLE CONTROL.CHUTE.DEFLECTOR. For 96193009604, 96191008703, 96191008704, 96193009605 HUS-590587002
...
56
BOLT SHOULDER_HEX HD_1/4-20_3/ For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605 HUS-581329702
...
4
RIVET BLIND For 96191008700, 96193009601 HUS-532128415
...
20
CABLE INTERLOCK CONTROL ACETAL For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-593853401
...
46
LEVER CONTROL DSST OPP MPP For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-587463001
...
45
HANDLE.LEVER.PIVOT.RHS.BLACK For 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605, 96191008705, 96193009606 HUS-587739602
...
3
SEAL.DEFLECTOR For 96191008700, 96193009601 HUS-532420325
...
54
LEVER.CONTROL.SPEED/DEFLEC.BLK For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581123902
...
18
NUT.HEX.FLANGE.LOCK.5/16-18 For 96191008700, 96193009601 HUS-585691501
...
42
PIN.GROOVED For 96191008700, 96193009601, 96191008701, 96193009602 HUS-583473901
...
9
PIN CLEVIS .25 X .31 HUS-585808301
...
25
Chutes For 96191008705, 96193009606 HUS-598803401
...
69
Harnesses For 97046850100, 97046850101 HUS-598458701
...
47
LEVER.CABLE.ARM.LHS.BLACK For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-587739701
...
41
SCREW HEX WASH MACH BLK 10-24 For 96191008700, 96193009601, 96191008701, 96193009602 HUS-585690701
...
15
BOLT CAR BLK 5/16-18 X 5/8 For 96193009602. INCLUDED IN BAG OF PARTS. HUS-585832001
...
69
HARNESS WIRE.LIGHT AND GRIPS For 97046860100 HUS-587535701
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C For 97046850100, 97046850101, 97046860100, 97046860101 HUS-582478602
...
7
Controls For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598450501
...
24
CLIP.CABLE.BLK HUS-532197991
...
43
E-RING For 96191008700, 96193009601, 96191008701, 96193009602 HUS-812000014
...
64
SPRING.COMPRESSION.82LBS For 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329601
...
31
PIN CLEVIS CLEVIS For 96191008705, 96193009606 HUS-587130803
...
28
HAIRPIN.SOFT.ZINC.059X1.125 For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-583404901
...
62
LEVER.CONTROL.SPEED/DEFLEC.BLK For 97046850100, 97046850101, 97046860100, 97046860101 HUS-581123902
...
63
BOLT SHOULDER_HEX HD_1/4-20_3/ For 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329702
...
40
CABLE.CONTROL.PS.OPP.SNOW For 96191008700, 96193009602 HUS-581208201
...
55
LEVER.CONTROL.CHUTE.ROTATON.BL For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581241602
...
26
PIN CLEVIS 5/16X.875 For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329401
...
48
LEVER.CABLE.ARM.RHS.BLACK For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-587739702
...
78
Harnesses For all EXCEPT 96191008700, 96193009601, 96191008701, 97046850100, 97046850101, 97046860100 HUS-598458701
...
2
For all EXCEPT 96191008700, 96193009601. DEFLECTOR. HUS-000000000
...
25
Chutes For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605 HUS-598803401
...
77
SCREW For 97046850100, 97046850101, 97046860100, 97046860101 HUS-532163409
...
5
SHIELD.SNOW.CHUTE For 96191008700, 96193009601 HUS-532430324
...
19
WASHER.NYLON.326 X.625 X.205 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-501417401
...
15
BOLT.CARR.W.3125 SHLDR..25-20 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602. INCLUDED IN BAG OF PARTS. HUS-501417301
...
71
SWITCH HEATED GRIP BLK For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-585805001
...
16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK INCLUDED IN BAG OF PARTS HUS-585691401
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
40
CONTROL UNIT ASSEMBLY_LEVER_PI For 96193009601, 96191008701 HUS-581208101
...
22
E-RING HUS-812000014
...
44
CABLE.POWER STEERING.LHS For 97046850100, 97046850101, 97046860100, 97046860101 HUS-588263901
...
2
DEFLECTOR ASSEMBLY RIVETED For 96191008700, 96193009601 HUS-590518207
...
23
NEEDS DESCRIPTION HUS-581151202
...
1
DEFLECTOR ASSEMBLY RIVETED For 96191008700, 96193009601 HUS-590518207
...
52
PIN.GROOVED For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-588147701
...
50
SCREW 14-20 X 5/8 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-817060410
...
73
SCREW HEX_WASH_13-16 X 1.50_H For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329501
...
61
Levers For 97046850100, 97046850101, 97046860100, 97046860101 HUS-596786802
...
82
NUT HEXAGON FLANGE 5/16-18 ST For 97046850100, 97046850101, 97046860100, 97046860101 HUS-594944401
...
1
DEFLECTOR ASSEMBLY RIVETED For all EXCEPT 96191008700, 96193009601. INCLUDES KEY NUMBERS 1-6. HUS-590518207
...
36
WASHER FLAT_.250 X .625 X .06 For 97046850100, 97046850101, 97046860100, 97046860101 HUS-586682101
...
57
SPRING.COMPRESSION.82LBS For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329601
...
21
PIN.GROOVED For 97046860100 HUS-583473901
...
58
NUT HEX_LRG FLG_1_4-20_LOCK For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-586668901
...
31
PIN CLEVIS CLEVIS For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605 HUS-587130803
...
34
HAIRPIN.SOFT.ZINC.059X1.125 For 97046850100, 97046850101, 97046860100, 97046860101 HUS-583404901
...
17
BOLT CAR BLK 5/16-18 X 5/8 INCLUDED IN BAG OF PARTS HUS-585832001
...
20
CABLE INTERLOCK CONTROL ACETAL For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-593853401
...
35
CLIP.CONDUIT.DOUBLE LOOP For 97046850100, 97046850101, 97046860100, 97046860101 HUS-584652201
...
27
PIN.CLEVIS For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-877100812
...
65
NUT HEX_LRG FLG_1_4-20_LOCK For 97046850100, 97046850101, 97046860100, 97046860101 HUS-586668901
...
7
CABLE CONTROL.CHUTE.DEFLECTOR. For 96191008705, 96193009606 HUS-590587002
...
79
PUSH CLIP For all EXCEPT 96191008700, 96193009601, 96191008701, 97046850100, 97046850101, 97046860100 HUS-532145006
...
32
Chutes For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598803401
...
3
For all EXCEPT 96191008700, 96193009601. SEAL. HUS-000000000
...
6
STRAP.SHEILD.RETAINER For 96191008700, 96193009601 HUS-532421728
...
30
WASHER FLAT_.250 X .625 X .06 For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-586682101
...
7
CABLE CONTROL.CHUTE.DEFL.BOWDE For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603 HUS-586961501
...
6
For all EXCEPT 96191008700, 96193009601. RETAINER. HUS-000000000
...
14
SPRING.DEFLECTOR.REM.CHUTE INCLUDED IN BAG OF PARTS HUS-532184505
...
49
SCREW HEX_WASH_13-16 X 1.50_H For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-581329501
...
76
Decals For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598812001
...
29
CLIP.CONDUIT.DOUBLE LOOP For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-584652201
...
70
CONSOLE BASE MULTI CONTROL For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-581131212
...
66
WASHER, NYLON FRICTION For 97046850100, 97046850101, 97046860100, 97046860101 HUS-532179246
...
83
GSPW Retainers HUS-596029401
...
15
BOLT SHOULDER 1/4 For 96191008700, 96193009601, 96191008701. INCLUDED IN BAG OF PARTS. HUS-585832201
...
18
Hardware For all EXCEPT 96191008700, 96193009601 HUS-596040501
...
53
E-RING For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-812000014
...
74
Consoles For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598803701
...
44
HANDLE.LEVER.PIVOT.LHS.BLACK For 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605, 96191008705, 96193009606 HUS-587739601
...
59
BRACE.SUPPORT.SPEED.BLACK For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-584468402
...
13
PAL NUT PM For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705, 97046860101 HUS-582935201
...
45
CABLE.POWER STEERING.RHS For 97046850100, 97046850101, 97046860100, 97046860101 HUS-588263902
...
60
WASHER.FLAT.625 X .375 NYLON For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101 HUS-587031301
...
37
Clevis Pins For 97046850100, 97046850101, 97046860100, 97046860101 HUS-596717201
...
4
For all EXCEPT 96191008700, 96193009601. POP RIVET. HUS-000000000
...
56
BOLT SHOULDER_HEX HD_1/4-20_3/ For 96191008705, 96193009606 HUS-581329702
...
5
For all EXCEPT 96191008700, 96193009601. SHIELD. HUS-000000000
...
75
Consoles For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598803801
...
81
MOUNTING BRACKET LIGHT MOUNTIN For 97046850100, 97046850101, 97046860100, 97046860101 HUS-590439801
...
21
PIN.GROOVED For all EXCEPT 97046860100 HUS-583473901
...
12
SPRING.CHUTE.GUARD For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705, 97046860100, 97046860101 HUS-532435616
...
33
PIN CLEVIS 5/16X.875 For 97046850100, 97046850101, 97046860100, 97046860101 HUS-581329401
...
80
SERVICE KIT LIGHT SNOW LED Fits 97052860100, 97052860200 HUS-535543501
...
39
LEVER CONTROL DSST OPP MPP For 96191008700, 96193009601, 96191008701, 96193009602 HUS-587463001
...
11
GUARD ROD CHUTE GUARD SHORT CL For 97046860100, 97046860101 HUS-593622201
