Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

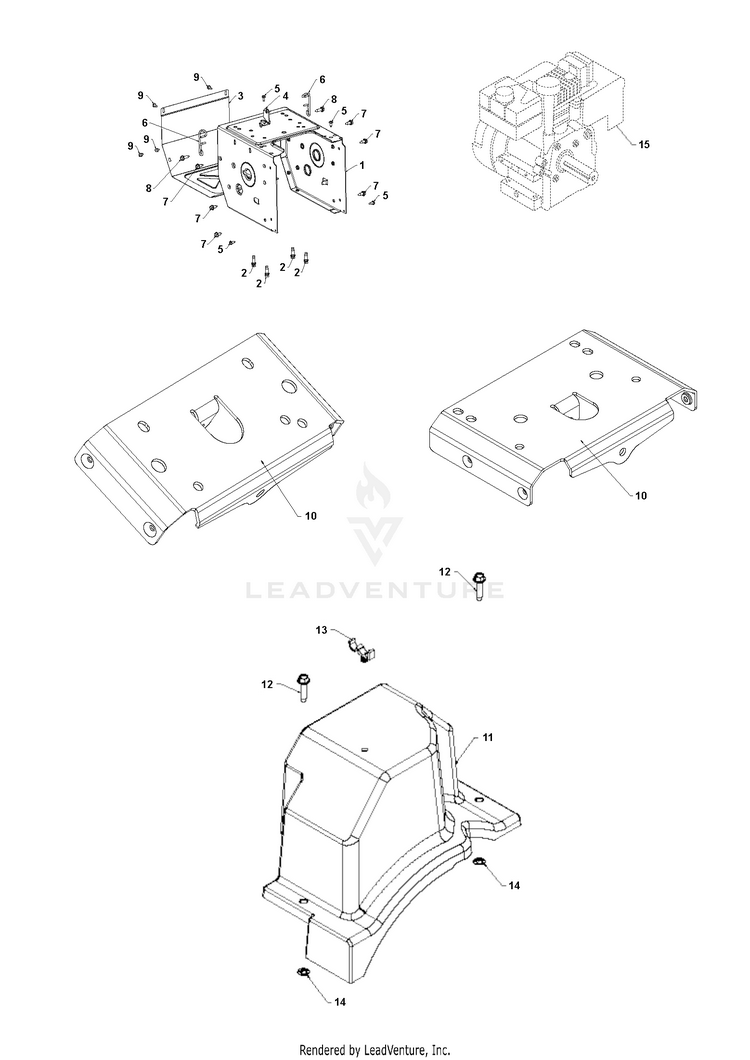

CHASSIS, ENGINE & PULLEYS 3

...
...
1
FRAME.GEAR.CASE.ORANGE For all EXCEPT 96193009605, 96191008705, 97046850101, 97046860101 HUS-580839405
...
3
COVER COVER.FRAME MS667 RED For 96193009604 HUS-580839507
...
4
BRACKET.SHIFTER.BZP HUS-501060403
...
3
COVER COVER.FRAME MS668 ORANGE For all EXCEPT 96193009604 HUS-580839505
...
5
SCREW 14-20 X 5/8 For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603 HUS-817060410
...
15
LCT.208CC.STORMFORCE2.50ST/CAN For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704 (See LCT Engines IPL for service parts) HUS-580426004
...
11
COVER COVER.BELT For 96191008700, 96193009601 HUS-581049901
...
1
FRAME MS 668 For 96193009605, 96191008705, 97046850101, 97046860101 HUS-589264705
...
10
BRACKET.FRAME.SUPPORT.BLACK For all EXCEPT 96191008701, 96191008702, 96191008703 HUS-583940502
...
7
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
10
BRACKET.FRAME.SUP.LARGEENG.BLA For 96191008701, 96191008702, 96191008703 HUS-585546002
...
15
ENGINE LCT 208CC 6.3HP DSST OP For 96193009605, 96193009606, 97046850100, 97046850101 (See LCT Engine IPL for service parts) HUS-590218603
...
13
PUSH CLIP HUS-532145006
...
15
NEEDS DESCRIPTION For EU, 97046860100, 97046860101 HUS-590218605
...
15
ENGINE RATO 212CC (CARB) For 97052860200 (See Husqvarna Engine IPL for service parts) HUS-598609603
...
9
SCREW For 96191008702, 96193009603 HUS-817060408
...
15
NEEDS DESCRIPTION For 97052860100 (See Husqvarna Engines IPL For Service Parts) HUS-598609602
...
9
SCREW 14-20 X 5/8 For 96191008700, 96193009601, 96191008701, 96193009602 HUS-817060410
...
8
SCREW HEXAGON HEAD WITH COLLAR For all EXCEPT 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-593337201
...
2
BOLT 3/8-16X1-1/8 HUS-532150406
...
8
SCREW HEXAGON HEAD WITH COLLAR For 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 HUS-593337201
...
5
SCREW.HEX HEAD W/COLLAR 1/4-20 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603 HUS-582906901
...
14
PALNUT 1/4 HUS-532423062
...
9
SCREW.HEX HEAD W/COLLAR 1/4-20 For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603 HUS-582906901
...
6
WIREFORM.SUPPORT.CABLE HUS-588954501
...
11
COVER COVER.BELT For all EXCEPT 96191008700, 96193009601 HUS-581049901
...
15
ENGINE LCT 208CC 6.3HP DSST OP For 96191008705 (See LCT Engine IPL for service parts) HUS-590218604
...
12
SCREW HEX WASH THDRL BLK 1_4- HUS-585691101
