Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
5
KIT.PISTON.SRV(SK208-1400) HUS-532420582
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
14
FUEL.TK.ASSY.GENII.SKSN0311.1 HUS-532436564
...
10
CRNKSHFT-KYD#14.208CCSKSNO8001 HUS-584362101
...
48
HARNESS WIRE. W/O OFF/ON SWITC HUS-595012501
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
2
KIT.PUSH.ROD.SRV(SK208-1001) HUS-532420579
...
78
For 97046850100, 97046850101, 97046860101. Part of Ref 58, All One Part. HUS-000000000
...
79
For 97046850100, 97046850101, 97046860101. Part of Ref 58, All One Part. HUS-000000000
...
9999
BOLTS For 97046850100 HUS-597930001
...
27
KIT.GOVERNOR.CRANK(SK208-3100) HUS-532420602
...
13
MUFFLERS For 97046860100, 97046860101 HUS-599716601
...
30
HOUSINGS For 97046850100, 97046860100, 97046860101 HUS-599716701
...
88
STUD.MUFFLER.KIT.LCT HUS-586326801
...
32
SEAL KIT (2 PCS) HUS-532429599
...
43
TUBE.BREATHER.LCT.208 HUS-580353401
...
29
STRTER.CUP(NON-SLOT)SKSN0601.2 HUS-532436968
...
57
SHIELD.MUFFLER.CE.COMPLIANT For 97046850100, 97046850101 HUS-532436672
...
56
SHIELD GOVENOR & CARB - COMPOS For 97046860100 HUS-595012701
...
26
CARBURETTOR GOVERNOR LINK.ASM. HUS-581768701
...
47
TUBE ASSY HIGH OIL-FILL HUS-581007201
...
23
KIT.FUEL.HOSE.208CC.SING/STAGE HUS-532438014
...
17
CARBURETORS For 97046860100, 97046860101 HUS-597929901
...
91
COVER CRANKCASE GASKET HUS-587525701
...
97
GUARD.MUFFLER.MANIFOLD.LCT Not included in engine spec. HUS-590640101
...
54
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
69
CARB.STUDS & COUPLING KIT.SNOW HUS-532424951
...
15
FUEL.PETCOCK.SNOW(SKSN4900) HUS-532429234
...
28
RECOIL.STRT.ROUND(BLK) SNOW HUS-532436967
...
60
208CC 60W ALTERNATOR HUS-532443893
...
16
FUEL CAP OVERSIZED CLICK STYLE HUS-532424942
...
81
KEYS.FLYWHEEL.208/414CC.5PACK HUS-585297201
...
24
SPEED.CTRL.BRKT.(SKSN0150) HUS-532429259
...
37
DIPSTICK SMALL HUS-532420961
...
65
TAPPET.KIT.LCT.208CC HUS-581372801
...
17
CARBURETTOR L10-1D.W/SP For 97046850100, 97046850101 HUS-587147901
...
31
COVER CRANKCASE.LCT.SK2083605 HUS-581007301
...
52
STARTER SCREW.STARTER SWITCH B For 97046860100, 97046860101 HUS-590920801
...
55
EXTENDED OIL DRAIN TUBE HUS-532432686
...
49
KIT.OIL.DRAIN.PLUG(SK2089911 HUS-532435495
...
25
GOVENOR.GEARS ASM(SK2082900) HUS-532429646
...
51
SHIELD.CYLINGER.LCT.SKSN0608.2 HUS-583516301
...
35
STARTER 230C EL START.LCT SKSN For 97046860100, 97046860101 HUS-595915501
...
13
For 97046850100 HUS-TBD
...
74
MUFFLER GUARD.EUR./LCT.SKSN220 Not included in engine spec. HUS-587821101
...
38
ROCKER ARM KIT HUS-532429691
...
50
BOX HEATER.W/O OFF/ON SWITCH.L HUS-595012601
...
9999
KIT.BOLT.LCT.SK9990.1 HUS-579806401
...
9999
STARTER SCREW.STARTER SWITCH B For 97046850100, 97046850101 HUS-590920801
...
52
PRIMER.BULB.WITH HOSE (SNOW) For 97046850100, 97046850101 HUS-532424949
...
72
HOP SNOW DECAL KIT HUS-532435648
...
58
SHIELD GOVENOR & CARB - COMPOS (also repls 56, 79, 80) HUS-595012701
...
9999
HIGH.ALTITUDE.JET 6,000FT HUS-586326201
...
70
CARBURETOR.REPAIR KIT.LCT. HUS-580353602
...
35
ELEC.START.GEN2.SKSN0451.1 For 97046850100, 97046850101 HUS-532436466
...
7
CAMSHAFT.208CC.EPA HUS-582051401
...
82
SPACER.CARBURETOR.208CC.LCT HUS-585020503
...
8
FLYWHEEL ELECTRIC START W/6 MA HUS-595012401
...
59
FUEL.TNK.SKRT.GENII.SKSN0103.1 Not included in engine spec. HUS-532436562
...
36
GASKET.KIT.208CC(SK2084300.1) HUS-532429601
...
39
CHOKE.KNOW.SNOW(SKSN4500) HUS-532429224
...
86
BOLT KIT.CYLINDER HEAD.LCT(4)1 HUS-586327302
...
9
FLYWHEEL FAN 420586 HUS-532420586
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
61
FUEL KNOB-SNOW Not included in engine spec. HUS-532432752
...
1
CYLINDER HEAD.208CC.EPA W/GASK HUS-582045701
...
78
BRACKET HUS-581459301
...
53
SWITH.KEY.ASSEM.SNOW.SINGLE.ST HUS-532424954
...
18
208CC IGN COIL (STD) HUS-532443934
...
22
SHIELD.FLYWHEEL.ELEC.STRT.208C HUS-585772401
...
20
SPARK.PLUG(2083810) HUS-532424939
...
40
NON REMOVABLE PLUG HUS-532429598
...
13
MUFFLER KIT LCT SKSN2205.1 For 97046850101 HUS-587737801
...
56
For 97046850100, 97046850101, 97046860101. Part of ref 58. all one piece. HUS-000000000
...
87
KIT.BOLT.CRANKCASE.COVER.6PC HUS-586326901
...
3
VALVE COVER LCT 179/208 HUS-587176901

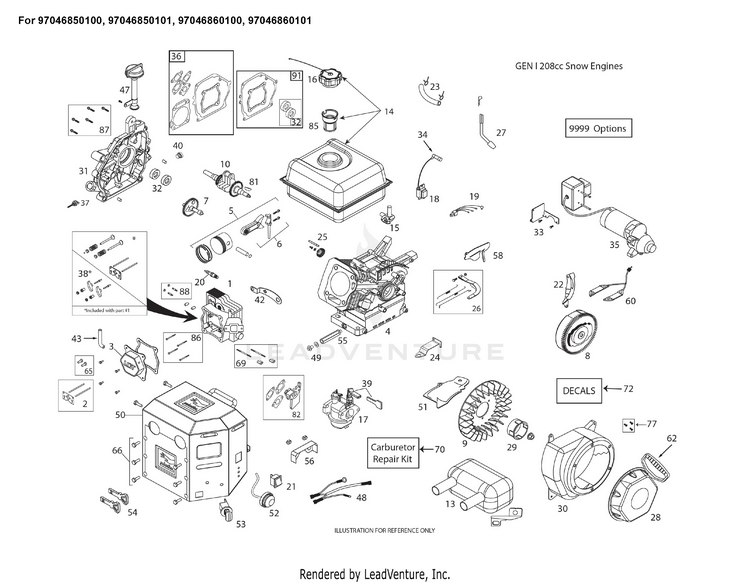

Schematic Image Zoomed
