Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

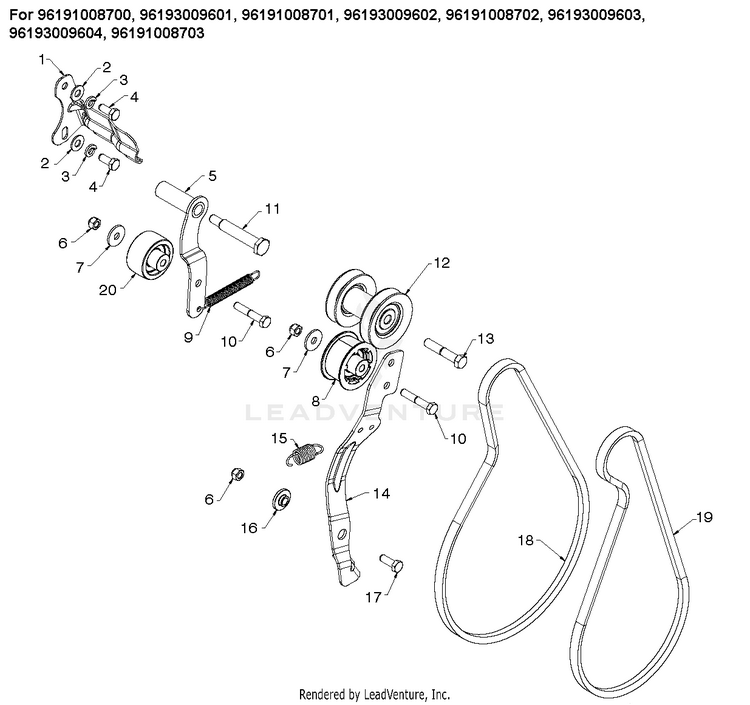

CHASSIS, ENGINE & PULLEYS 2

...
...
8
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
18
BELT.DRIVE.SNOW.DUAL HUS-584216102
...
10
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
19
LOW CRANK IMPELLER BELT HUS-501818201
...
3
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
20
PULLEY.IDLER.FLNGLESS.W/SPACER HUS-586880202
...
1
BRACKET.BELT.KEEPER.004.BZP For 96191008700, 96193009601 HUS-581623702
...
14
ARM.IDLER.SNOW.BLACK For 96191008700 HUS-580831102
...
13
BOLT.BLADE For 96191008700, 96193009601 HUS-532179617
...
15
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
7
STEEL WASHER HUS-532059289
...
1
BELT KEEPER BRACKET For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-588492802
...
4
SCREW 5/16-24 X .75 GR5 HUS-874610512
...
2
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
12
PULLEY.ASM.IMPELLER/DRIVE HUS-587893703
...
17
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
13
BOLT.HD.HEAD.3/8-24X2.50 (2 2) For 96191008701, 96193009602 HUS-532191760
...
14
ARM.IDLER.AUTO-PH.676 For 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 HUS-580831106
...
9
SPRING RETURN IDLER ARM HUS-580753001
...
16
BUSHING.BRAKE.ARM HUS-587343701
...
11
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
5
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
13
BOLT.ENGINE.PULLEY For 96191008702, 96193009603, 96193009604, 96191008703 HUS-582388401
...
6
Hardware HUS-596040501
