Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

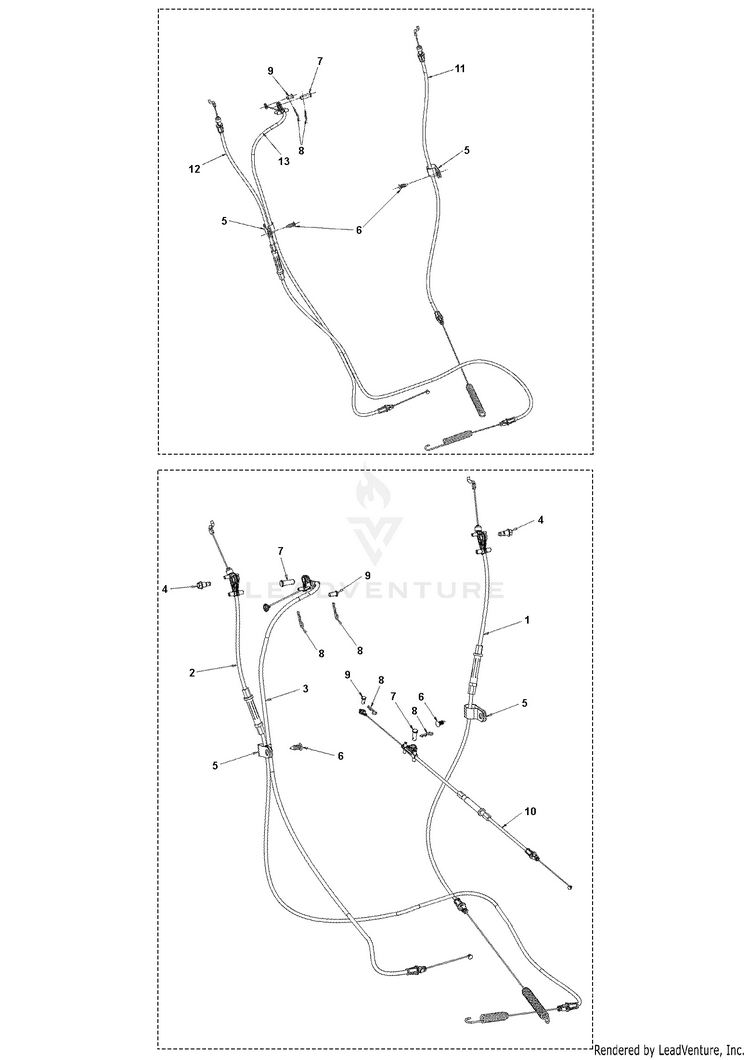

CONTROL PANEL & DISCHARGE CHUTE

...
...
4
BOLT SHOULDER_1/4-20_TRILOB For 96191008700, 96193009601, 96191008701, 96193009602 HUS-581726101
...
3
CABLE.CONTROL.SPEED.DSST.OPP For 96191008701, 96193009602 HUS-588122301
...
13
Cables For 97046850100, 97046850101, 97046860100, 97046860101 HUS-598450401
...
8
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
2
CABLE.CONTROL.AUGER.DSST.OPP.M For 96191008700, 96193009601 HUS-581128201
...
11
CABLE.DRIVE CONTROL W/ADJ For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-582519002
...
6
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
13
CABLE.CONTROL.SPEED.DSST.OPP For 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605 HUS-588122301
...
12
CABLE.CONTROL.AUGER For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602 HUS-588113802
...
5
CLIP.CABLE.BLK HUS-532197991
...
9
PIN CLEVIS .25 X .31 HUS-585808301
...
7
PIN CLEVIS 5/16X.875 HUS-581329401
...
1
CABLE.CONTROL.DRIVE.DSST.OPP For 96191008701, 96193009602 HUS-587641801
...
1
CABLE.CONTROL.DRIVE.DSST.OPP For 96191008700, 96193009601 HUS-581128301
...
10
RB CABLE.CNTRL.SPEED.DSST.OPP For 96191008700, 96193009601 HUS-581124201
...
13
Cables For 96191008705, 96193009606 HUS-593848401
...
2
CABLE.CONTROL.AUGER.DSST.OPP.M For 96191008701, 96193009602 HUS-587428701
