Husqvarna ST 224 Snow Blower

Model: ST 224

Back To Assemblies

Save Part Not Listed?
product name

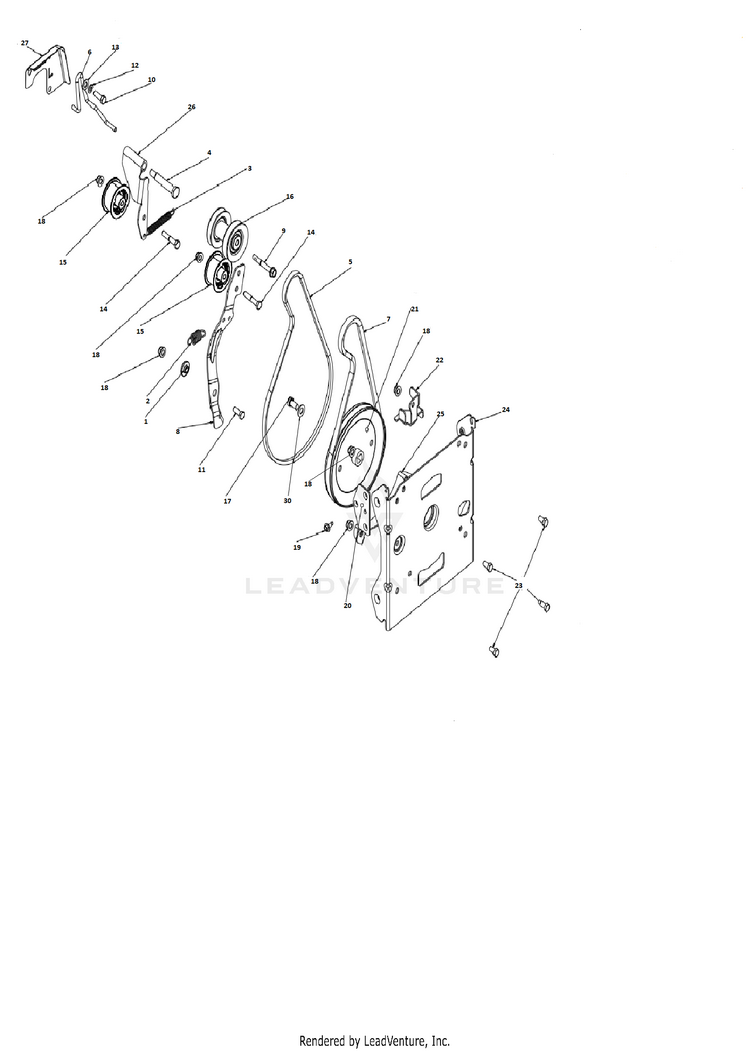

CHASSIS, ENGINE & PULLEYS

...
...
10
SCREW HUS-874610516
...
15
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
23
Screws HUS-596031601
...
20
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
12
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
21
PULLEYS HUS-536862701
...
14
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
19
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
16
PULLEY 4L GEAR - LC HUS-598815602
...
4
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
2
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
6
Belt Keepers HUS-598644401
...
25
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
26
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
17
BOLT for 970528601,970528602 HUS-874760612
...
17
SCREW HEXAGON HEAD FLANGE 3/8- HUS-595517901
...
13
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
24
NEEDS DESCRIPTION HUS-581592503
...
9
BOLTS HUS-598758701
...
18
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
5
Belts HUS-582640701
...
22
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
7
LOW CRANK IMPELLER BELT HUS-501818201
...
30
WASHER PLAIN WASHER 3/8 X 0.08 for 970528601,970528602 HUS-596565301
...
21
PULLEYS for 970528601,970528602 HUS-536862701
...
1
BUSHING.BRAKE.ARM HUS-587343701
...
27
Cranks HUS-598711902
...
8
ARM.IDLER.AUTO-PH.676 HUS-580831106
...
3
SPRING RETURN IDLER ARM HUS-580753001
