product name

Husqvarna SST25, FEATHERLITE (2009-03) Trimmer/Edger

Model: SST25, FEATHERLITE (2009-03)

Save Part Not Listed?
product name

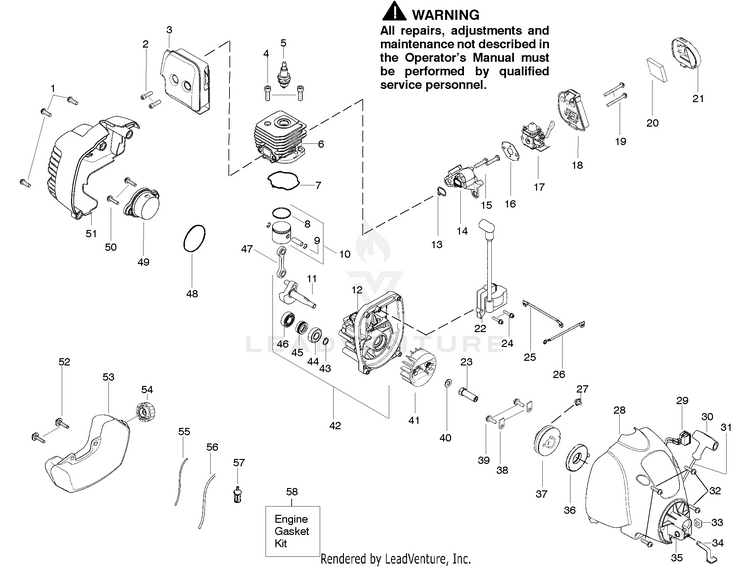

Engine

...
...
1
Screw HUS-530015880
...
2
Bolt-Muffler HUS-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) HUS-545227901
...
4
Screw-Cylinder HUS-530015953
...
5
Spark Plug (RCJ 6Y) HUS-952030249
...
6
Cylinder HUS-530012541
...
7
Seal-Cylinder (kit) HUS-530071750
...
8
RING PISTON HUS-545154001
...
9
Retainer-Piston Pin HUS-530015162
...
10
Kit-Piston (Incl. 8, 9) HUS-530071833
...
11
Assy-Crankshaft HUS-530057829
...
12
Assy-Crankcase (Incl. 44-46) HUS-530012542
...
13
Seal-Cyl/Carb.(kit) HUS-530071750
...
14
Adapter-Carb. HUS-530057547
...
15
Screw HUS-530016309
...
16
Gasket-Carb. (kit) HUS-530071750
...
17
Kit-Carb. Zama (C1U-W18) HUS-530071752
...
17
Kit-Carb. Zama (C1U-W18) (Note: Repair kits are not available for this carburetor) HUS-530071752
...
18
Air Box HUS-530057585
...
19
Screw HUS-530016429
...
20
Foam-Air Filter HUS-530057781
...
21
Cover-Air Box HUS-530057584
...
22
Ignition Module HUS-530039223
...
23
Coupling-Drive HUS-530038604
...
24
Screw HUS-530016357
...
25
Assy-Leadwire HUS-530014663
...
26
Assy-Ground Wire HUS-530014662
...
27
Screw HUS-530016392
...
28
Assy.-Fan Hsg HUS-530058600
...
29
Kit-Switch HUS-530071356
...
30
Handle-Starter HUS-530027569
...
31
Kit - Rope HUS-530071767
...
32
Screw HUS-530016386
...
33
Nut HUS-530016124
...
34
Clip-Spring HUS-530057588
...
35
Screw HUS-530016430
...
36
STARTER SPRING HUS-545008010
...
37
Kit-Pulley-Starter HUS-530071786
...
38
Retainer-Pulley HUS-530027523
...
39
Screw HUS-530015775
...
40
Washer-Flat HUS-530015828
...
41
Assy-Flywheel HUS-530054115
...
42
Assy-C'case & C'shaft (Incl. 11,12,43) HUS-530071768
...
43
Retain. Ring-C'shaft HUS-530015941
...
44
Outer Bearing HUS-530055728
...
45
Seal-C'case HUS-530019264
...
46
BEARING BALL 6001 HUS-738210101
...
47
CONNECTING ROD ASSY HUS-530049817
...
48
O-Ring-C'case (kit) HUS-530071750
...
49
Assy-Plug (incl.48) HUS-530057954
...
50
Screw HUS-530016386
...
51
Shroud-Rear Green HUS-530057580
...
51
Shroud-Rear Black HUS-545011004
...
52
Retainer-Tank HUS-530016431
...
53
Assy-Fuel Tank (incl. filter, lines & fuel cap) HUS-545104103
...
54
Assy-Fuel Cap HUS-530014347
...
55
Kit-Fuel Line (Small) HUS-530069247
...
56
Kit-Fuel Line (Large) HUS-530069216
...
57
Assy-Fuel Pickup HUS-530095646
...
58
Kit-Engine Gasket (Incl. 7,13,16,48) HUS-530071750
...
58
Choke Lever - Zama Not Shown HUS-530057827
...
58
Choke Lever - Walbro Not Shown HUS-530058662
...
58
Bulb-Purge Not Shown HUS-530058709

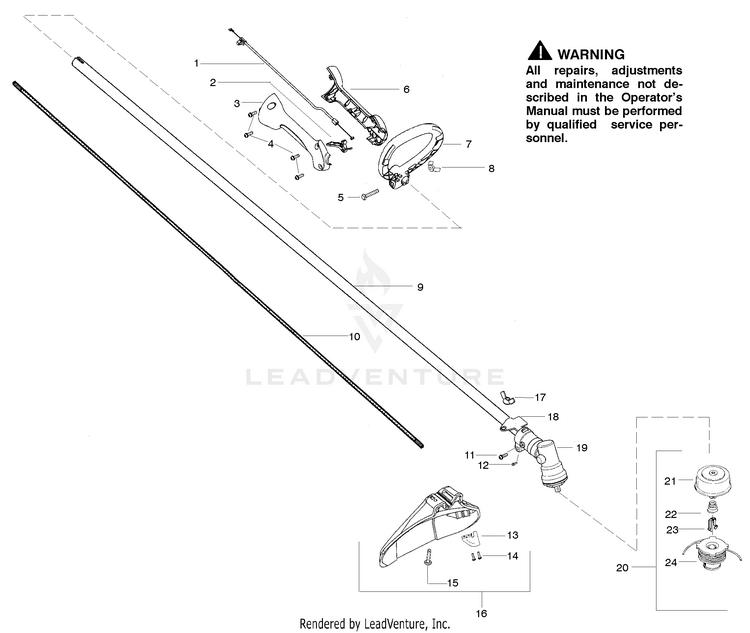

Handle & Controls

...
...
1
Assy-Throttle Cable HUS-530057991
...
2
Trigger HUS-530058000
...
3
Throttle Hsg. (Right) HUS-530057582
...
4
Screw-Throttle Hsg. HUS-530015880
...
5
Bolt-Handle/Shield HUS-530015821
...
6
Throttle Hsg. (Left) HUS-530057581
...
7
Handle-Assist HUS-530057587
...
8
Wingnut HUS-530401992
...
9
Assy-Drive Shaft Hsg. HUS-530071661
...
10
Shaft- Flex HUS-530096075
...
11
Screw HUS-530016014
...
12
Screw- Alignment HUS-530016224
...
13
Line Limiter HUS-530052285
...
14
Screw HUS-530015957
...
15
Bolt HUS-530015820
...
16
Kit-Shield Assy (Incl. 13-15,17) HUS-530071771
...
17
Wingnut HUS-530401992
...
18
Bracket-Shield HUS-530096067
...
19
Assy-Gearbox HUS-530096068
...
20
Accy-TNG VI Cutting Head (Incl. 21-24) HUS-952711550
...
21
Assy-Hub HUS-530095772
...
22
Spring-Compression HUS-530053241
...
23
Clip-Retainer-Head HUS-530401957
...
24
Accy- Spool w/Line HUS-952711551
...
24
Operator Manual Not Shown HUS-545186832
...
24
Decal-Start Inst. Not Shown HUS-530057720
...
24
Decal-Shaft Warning Not Shown HUS-545144405
