Husqvarna SRD17530 - 280022 (2011-09) Tractors/Ride Mower

Model: SRD17530 - 280022 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

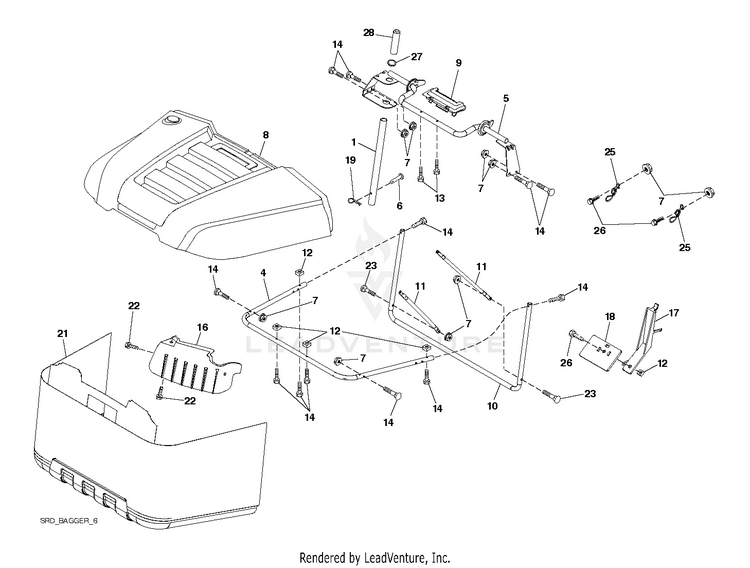

BAGGER

...
...
1
SERVICE KIT TUBE TUBE.HANDLE.B HUS-531151701
...
4
FRAME.FRONT.SRD.BAGGER HUS-532417190
...
5
FRAME.ASM.TOP.BAGGER.SRD HUS-583365901
...
6
RIVET,DRILLED HUS-532126875
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
8
SRD.BAGGER.TOP.SUB.ASM HUS-583503801
...
9
INSERT.HANDLE.BAGGER.SRD HUS-583365801
...
10
FRAME.FRONT.SRD.BAGGER HUS-532417190
...
11
TUBING.BRACE.BAGGER.SRD.BLACK HUS-532417188
...
12
NUT.SQUARE.1/4 HUS-583391701
...
13
SCREW.1/4X1.150.HXWSH HUS-583391201
...
14
BOLT.SHOULDER.HX.WSH.1/4X1.150 HUS-583392001
...
16
DEFLECTOR.BAGGER.SRD HUS-532421566
...
17
LEVER.BAGGER.FULL.SRD.BLACK HUS-532421749
...
18
PADDLE.BAGGER.FULL.SRD.BLACK HUS-583391001
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
21
BAG.ASM.BAGGER.SRD.HUSQVA.GREY HUS-583825601
...
22
Screws HUS-596134101
...
23
BOLT HUS-872040410
...
25
SPRING.LATCH.BAGGER.SRD (3 2) HUS-583389801
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
27
GROMMET.RUBBER.SRD HUS-583387201
...
28
GRIP.HANDLE.BLACK HUS-532165787
Schematic Image Zoomed
