Husqvarna SPGT25H54A (2004) Tractor

Model: SPGT25H54A (2004)

Back To Assemblies

Save Part Not Listed?
product name

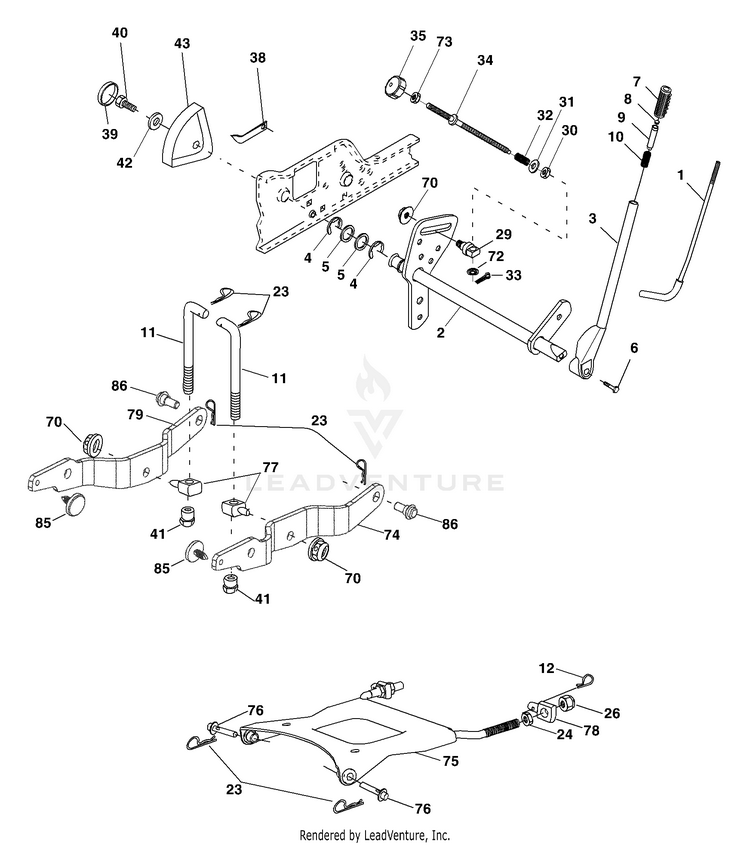

Mower Lift

...
...
1
Rod Asm., Lever HUS-121006X
...
2
Shaft Asm., Lift Vgt HUS-180045
...
3
Lever Asm., Lift Rh HUS-159189
...
4
E-Ring Truarc #5133-87 HUS-12000022
...
5
Washer 29/32 x 1-1/4 x 16 Ga. HUS-19292016
...
6
Bolt, Fin Hex 3/8-16 x 1-1/2 HUS-71110624
...
7
Grip, Handle HUS-125631X
...
8
Button, Plunger HUS-124526X
...
9
Plunger, Lever Lift HUS-122364X
...
10
Spring 0.62 OD x 2.125 HUS-183894
...
11
Link Lift HUS-175375
...
12
Retainer, Spring HUS-163552
...
23
Retainer, Spring HUS-4939M
...
24
Nut, Jam Hex 1/2-13 unc HUS-73350800
...
26
Nut, Crownlock 1/2-13 unc HUS-73680800
...
29
Trunnion Inf. Height HUS-150233
...
30
Nut, Special HUS-110807X
...
31
Washer 13/32 x 5/8 x 16 Ga. HUS-19131016
...
32
Spring, Compression Inf Hgt HUS-137150
...
33
Pin, Cotter 3/32 x 1/2 HUS-76020308
...
34
Rod, Adj Lift HUS-137167
...
35
Knob, Inf 3/8-16 unc HUS-138057
...
38
Pointer, Height Indicator HUS-155097
...
39
Plug, Hole HUS-123935X
...
40
Screw 5/16-18 x 3/4 HUS-17060516
...
41
Nut, Lift Link 7/16-20 HUS-175994
...
42
Washer 11/32 x 1-1/2 x 10 Ga. HUS-19112410
...
43
Scale, Indicator Height HUS-123934X
...
70
Nut, Hexflange Lock HUS-145212
...
72
Nut, Push Phos & Oil HUS-110452X
...
73
Nut Hex Jam 3/8-16 unc HUS-73350600
...
74
Arm Susp. Rear RH HUS-187277
...
75
Plate Asm Susp. Front HUS-175805
...
76
Pin Flange HUS-175560
...
77
Trunnion Susp. Arm HUS-176205
...
78
Trunnion Susp. Front HUS-175689
...
79
Arm Susp. Rear LH HUS-187276
...
85
Insert Wear HUS-189013
...
86
Bolt Shoulder HUS-188528
