Husqvarna SPGT25H54A (2004) Tractor

Model: SPGT25H54A (2004)

Back To Assemblies

Save Part Not Listed?
product name

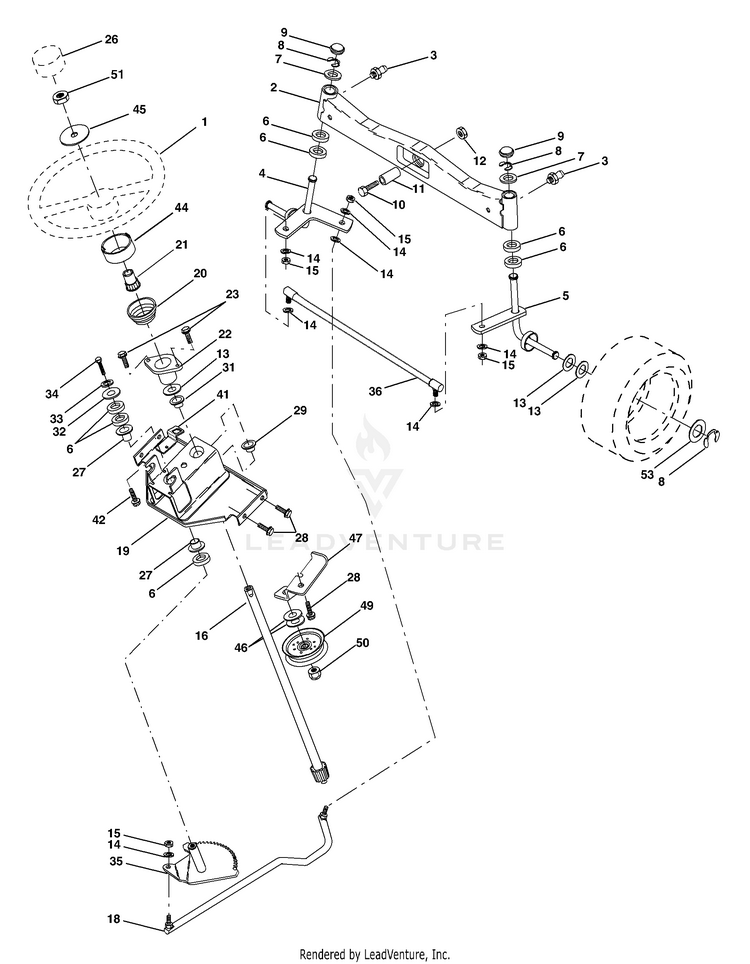

Steering Assembly

...
...
1
Wheel, Steering HUS-184704X428
...
2
Axle Asm., Front HUS-178557
...
3
Fitting, Grease HUS-183226
...
4
Spindle Asm, LH HUS-161849
...
5
Spindle Asm., RH HUS-161848
...
6
Bearing, Race Thrust Harden HUS-6266H
...
7
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
8
Ring, Klip #T5304-75 HUS-12000029
...
9
Cap, Spindle HUS-121232X
...
10
Bolt, Fin Hex 5/8-11 x 2-3/4 HUS-74781044
...
11
Spacer, Brg. Axle Front HUS-136518
...
12
Nut, Lock Flange 5/8-11 unc HUS-73901000
...
13
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
14
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
15
Nut Lock Center 3/8-24 unf HUS-73540600
...
16
Shaft Asm., Steering HUS-186814
...
18
Draglink, Ball Joint Solid Vgt HUS-187799
...
19
Support Asm., Steering Vgt HUS-156011
...
20
Boot Steering Stealth HUS-163887X428
...
21
Adapter, Wheel Steering HUS-159945
...
22
Bushing, Strg. HUS-155105
...
23
Screw HUS-152927
...
26
Insert Cap Strg WH HUS-159946X428
...
27
Bearing, Col. Strg. HUS-3366R
...
28
Screw Hexwsh thdr 3/8-16 x 3/4 HUS-17000612
...
29
Bearing, Flange HUS-104239X
...
31
Bushing, Nyliner Snap HUS-138136
...
32
Washer 11/32 x 1 x 10 Ga. HUS-19111610
...
33
Washer, Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
34
Bolt, Hex Hd 5/16-18 x 3/4 HUS-74780512
...
35
Gear, Sector Steering HUS-187039
...
36
Tie Rod HUS-186799
...
41
Bracket Switch Interlock Vgt 97 HUS-155246
...
42
Screw Thdrol 5/16-18 x 1/2 Tyt HUS-17490508
...
44
Extension Steering HUS-160135X428
...
45
Washer 9/16 x 1-1/2 x 11Ga. HUS-19182411
...
46
Washer 13/32 x 1 x 10 Ga. HUS-19131610
...
47
Bracket Asm. Idler Stationary HUS-179471
...
48
Screw 3/8-16 x .75 HUS-17000612
...
49
Pulley Idler Flat HUS-175820
...
50
Nut Lock Flg. 3/8-16 unc HUS-73900600
...
51
Nut Hex Jam Toplock 1/2-20 unf HUS-73940800
...
53
Washer Harden .793 x 1.637 x .060 HUS-188967
