Husqvarna SP24H48YT/96012002500 (2005) Tractor

Model: SP24H48YT/96012002500 (2005)

Back To Assemblies

Save Part Not Listed?
product name

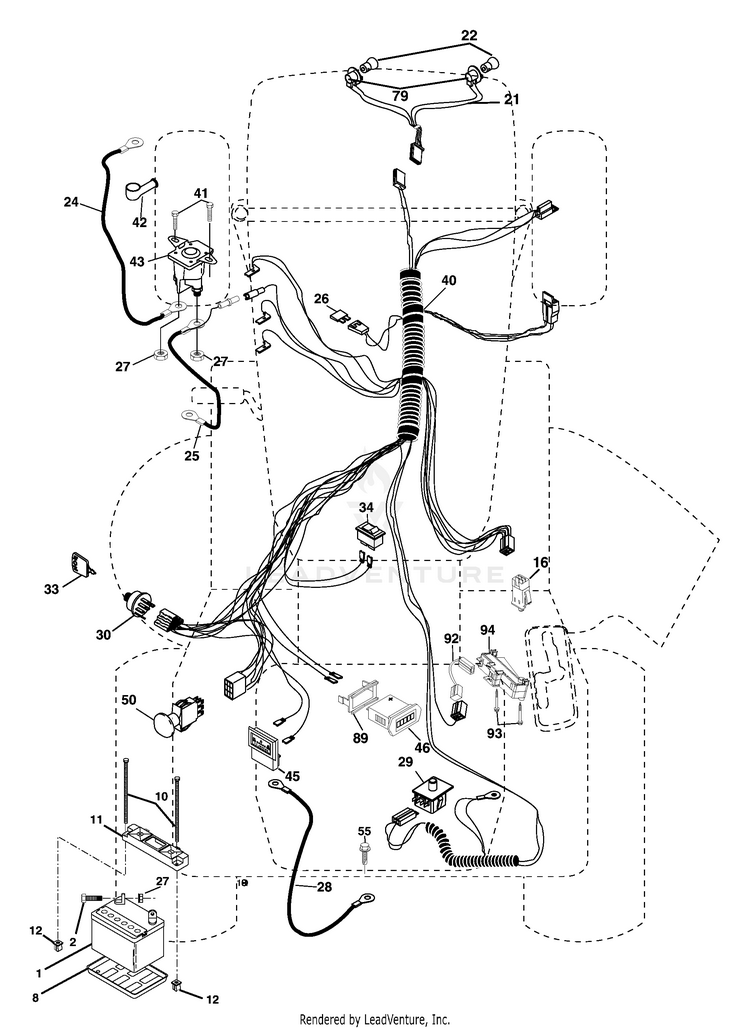

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, BTR FRT 1/4-20 x 7.5 HUS-145211
...
11
Hold Down Battery, Front HUS-150109
...
12
Nut, Push, Nylon HUS-145769
...
16
Switch Interlock Push-In HUS-176138
...
21
Harness Asm Light W/Bulbs HUS-175688
...
22
Bulb Light HUS-4152J
...
24
Cable Battery HUS-8860R
...
25
Cable Battery wire HUS-146148
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable Ground HUS-145491
...
29
Switch Seat HUS-192749
...
30
Switch Ign HUS-193350
...
33
Key Ign HUS-140401
...
34
Light Switch HUS-110712X
...
40
Harness Ign. HUS-193389
...
41
Bolt Blk Fin Hex 1/4-20 x 1/2 HUS-17720408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
46
Hourmeter Snap-In HUS-169635
...
48
Ammeter Adaptor HUS-140844
...
50
Switch, PTO HUS-174651
...
55
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
79
Bulbholder HUS-175242
...
89
Bracket Snap-In Hourmeter HUS-169639
...
92
Harness Pigtail Reverse Switch HUS-193465
...
93
Screw Plastite 10-14 x 2.0 HUS-192540
...
94
Module Reverse ROS HUS-191834
Schematic Image Zoomed
