Husqvarna SP185H42STB (2004) Tractor

Model: SP185H42STB (2004)

Back To Assemblies

Save Part Not Listed?
product name

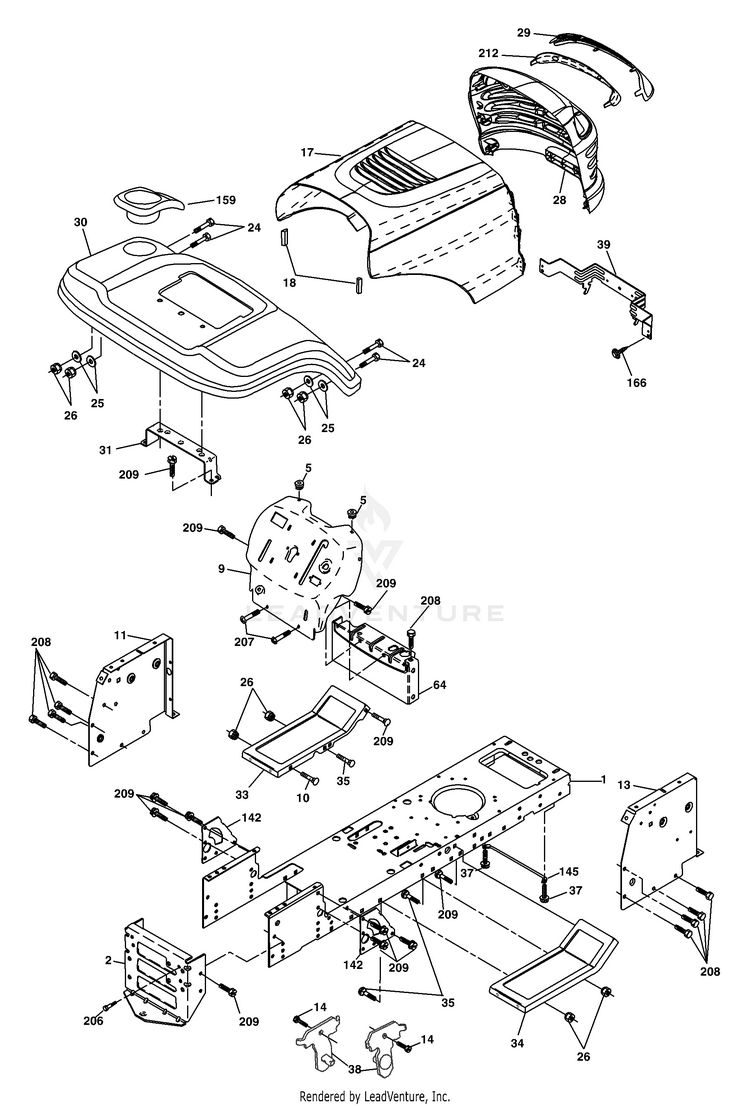

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash P/L HUS-187846X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
13
Panel Dash Rh HUS-179174X010
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-183394X505
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
26
Nut Lock Hex W/Ins 3/8-16 unc HUS-73800600
...
28
Grille/Lens Asm (Includes #'s 29 and 212) HUS-183552
...
29
Lens Grille HUS-183549X599
...
30
Fender HUS-169470X505
...
31
Bracket Fender HUS-136619
...
33
Footrest LH HUS-179716X505
...
34
Footrest RH HUS-179717X505
...
35
Bolt RDHD SHT SQNK 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
58
Duct Air HUS-150127
...
64
Dash Lower STLT HUS-154798
...
142
Plate Reinforcement STLT HUS-175702
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
166
Screw Hwhd Hi-Lo #13-16 x 3/4 HUS-171875
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
212
Insert Grille Reflective HUS-183550
...
xx
Plug BTN Bl K HUS-5479J
...
xx
Plug Dome Plastic Choke Hole HUS-187801
Schematic Image Zoomed
