Husqvarna SOR900A (2003) Tiller

Model: SOR900A (2003)

Back To Assemblies

Save Part Not Listed?
product name

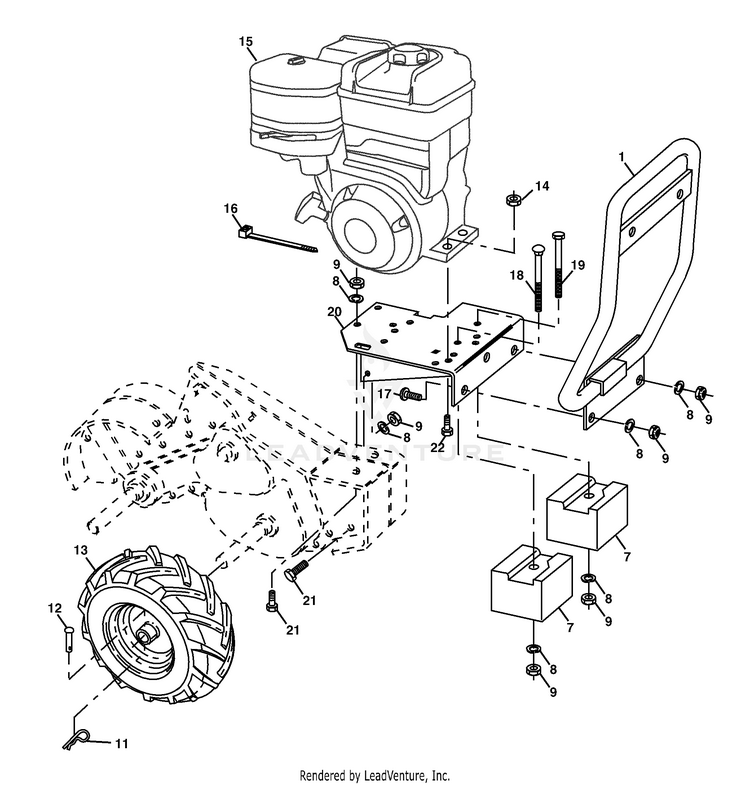

Mainframe, Right Side

...
...
1
Bumper HUS-175624
...
7
Counter Weight, R.H. HUS-180275
...
8
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
9
Nut, Hex 3/8-16 HUS-73220600
...
11
Clip, Hairpin HUS-4921H
...
12
Rivet, Drilled HUS-4929H
...
13
Tire HUS-5015J
...
13
Rim HUS-183121X624
...
13
Tire Valve HUS-795R
...
14
Nut, Lock Hex Flange HUS-73970500
...
16
Tie Cable HUS-104164X
...
17
Bolt, Hex 5/16-18 x 1-1/2 HUS-72140608
...
18
Bolt 3/8-16 x 4-1/2 HUS-72470636
...
19
Bolt Hex 3/8-16 x 4-1/2 HUS-74760672
...
20
Bracket, Reinforcement HUS-179823
...
21
Bolt, Hex 5/16-18 x 2 HUS-74760616
...
22
Bolt Hex Hd 5/16-18 x 1-1/2 HUS-74760524
