Husqvarna SOR500A (2003) Tiller

Model: SOR500A (2003)

Back To Assemblies

Save Part Not Listed?
product name

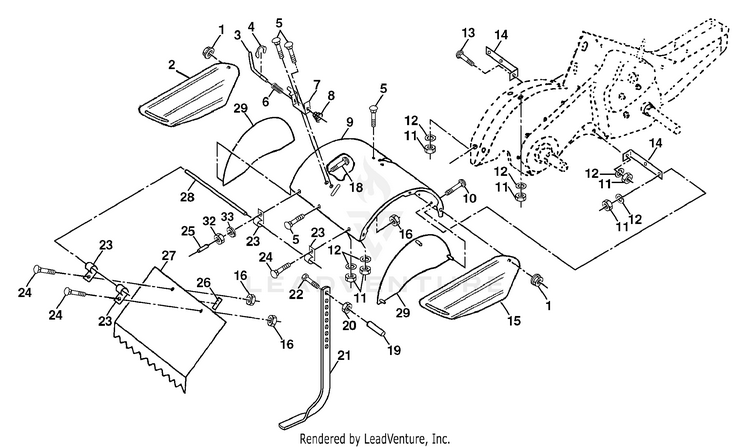

Tine Shield

...
...
1
Nut, Flange 5/16-18 HUS-73900500
...
2
Shield, Side, Outer L. H. HUS-161415X417
...
3
Pin, Stake, Depth HUS-8393J
...
4
Ring, Klip HUS-12000035
...
5
Bolt, Carriage 5/16-18 x 3/4 HUS-180847
...
6
Spring HUS-8394J
...
7
Bracket, Latch HUS-8392J
...
8
Spring, Depth Stake HUS-109230X
...
9
Shield, Tine HUS-102326X417
...
10
Bolt 5/16-18 x 1 HUS-72140508
...
11
Nut, Hex 5/16-18 HUS-73220500
...
12
Washer, Lock 5/16 HUS-10040500
...
13
Bolt, Carriage 5/16-18 x 1-1/4 HUS-72110510
...
14
Bracket, Shield Tine HUS-124343X
...
15
Shield, Side, Outer R.H. HUS-161414X417
...
16
Nut, Hex Flange 1/4-20 UNC HUS-73900400
...
18
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 HUS-72040410
...
19
Grip HUS-102701X
...
20
Nut, Hex 3/8-16 HUS-73220600
...
21
Stake, Depth HUS-102156X
...
22
Bolt, Hex 3/8-16 x 2 HUS-74930632
...
23
Hinge HUS-4440J
...
24
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 HUS-72140404
...
25
Cap, Vinyl HUS-6712 J
...
26
Pad, Idler HUS-109227X
...
27
Shield, Leveling HUS-102695X417
...
28
Pin, Hinge HUS-120588X
...
29
Shield, Side HUS-104085X417
...
32
Nut Fin Hex 1/4-20 UNC HUS-73220400
...
33
Washer Lock Hvy Helical 1/4 HUS-10040400
