Husqvarna SOR500A (2003) Tiller

Model: SOR500A (2003)

Back To Assemblies

Save Part Not Listed?
product name

Handle Assembly

...
...
1
Control, Throttle HUS-180634
...
2
Grip, Handle HUS-150744
...
4
Bar, Control HUS-159227
...
8
Screw, Pan Hd. #10-24 HUS-71191008
...
10
Grip, Handle HUS-8389J
...
11
Clip, Hairpin HUS-4497H
...
15
Rod, Shift HUS-108281X
...
16
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-72110608
...
17
Lock, Handle HUS-109229X
...
18
Nut Crownlock 3/8-16 UNC HUS-73680600
...
19
Washer 13/32 x 1 x 11 Ga. HUS-19131611
...
20
Lever, Lock, Handle HUS-109228X
...
21
Handle HUS-150217
...
26
Cable, Clutch HUS-159232
...
29
Nut, Keps #10-24 UNC HUS-73731000
...
31
Bolt, Pivot HUS-150696
...
34
Bracket, Clutch Cable HUS-145821
...
35
Grommet, Handle HUS-146480
...
36
Bracket, Handle HUS-180456X417
...
37
Grip, Bar Control HUS-102604X
...
39
Washer, Lock 5/16 HUS-10040500
...
38
Locknut 5/16-18 HUS-73800500
...
41
Bolt, Carriage 5/16-18 x 1-3/4 HUS-72110514
...
42
Bushing, Snap HUS-121248X

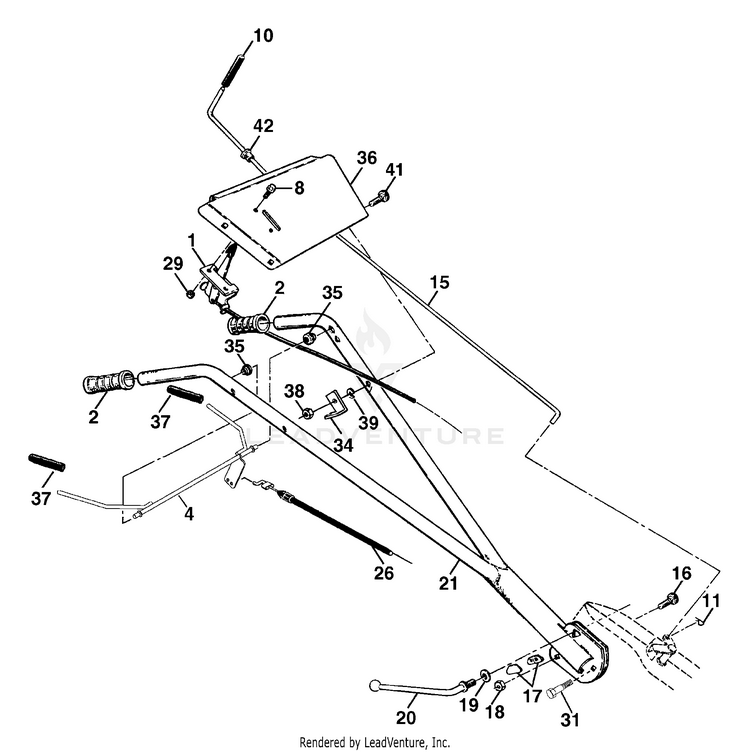

Schematic Image Zoomed
