Husqvarna SOLARMOWER (1995-2002) Robotic Lawn Mower

Model: SOLARMOWER (1995-2002)

Back To Assemblies

Save Part Not Listed?
product name

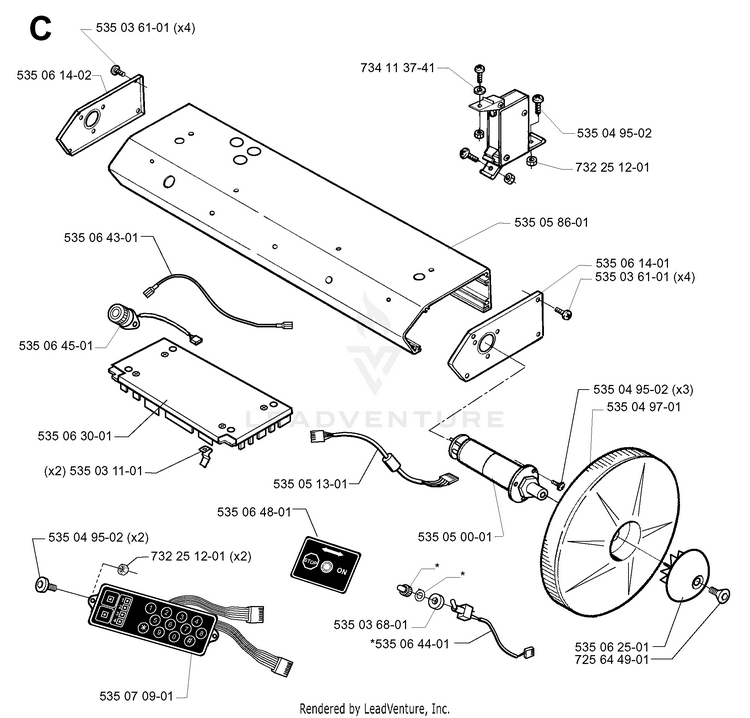

ELECTRONIC & WHEEL MOTOR HOUSING 6

...
...
535 06 45-01
BUZZER EXTERNAL HUS-535064501
...
535 03 61-01
SCREW HUS-535036101
...
535 03 68-01
WASHER HUS-535036801
...
535 04 95-02
SCREW HUS-535049502
...
535 03 11-01
TERMINAL GROUND HUS-535031101
...
535 06 14-01
RH END CAP WHEEL HUS-535061401
...
732 25 12-01
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
535 06 44-01
SWITCH HUS-535064401
...
535 06 48-01
PLATE ON/OFF HUS-535064801
...
535 05 13-01
HARNESS HUS-535051301
...
535 06 30-01
NEEDS DESCRIPTION HUS-535063001
...
535 06 14-02
LH END CAP WHEEL HUS-535061402
...
535 05 00-01
NEEDS DESCRIPTION HUS-535050001
...
734 11 37-41
WASHER HUS-734113741
...
535 05 86-01
CHASSIS HUS-535058601
...
535 04 95-02
SCREW HUS-535049502
...
725 64 49-01
BOLT REAR WHEEL HUS-725644901
...
535 06 43-01
WIRE GROUND HUS-535064301
...
535 07 09-01
NEEDS DESCRIPTION HUS-535070901
...
535 06 25-01
COVER REAR WHEEL HUS-535062501
...
535 04 95-02
SCREW HUS-535049502
...
535 04 97-01
WHEEL REAR HUS-535049701
...
732 25 12-01
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
