Husqvarna SOLARMOWER (1995-2002) Robotic Lawn Mower

Model: SOLARMOWER (1995-2002)

Back To Assemblies

Save Part Not Listed?
product name

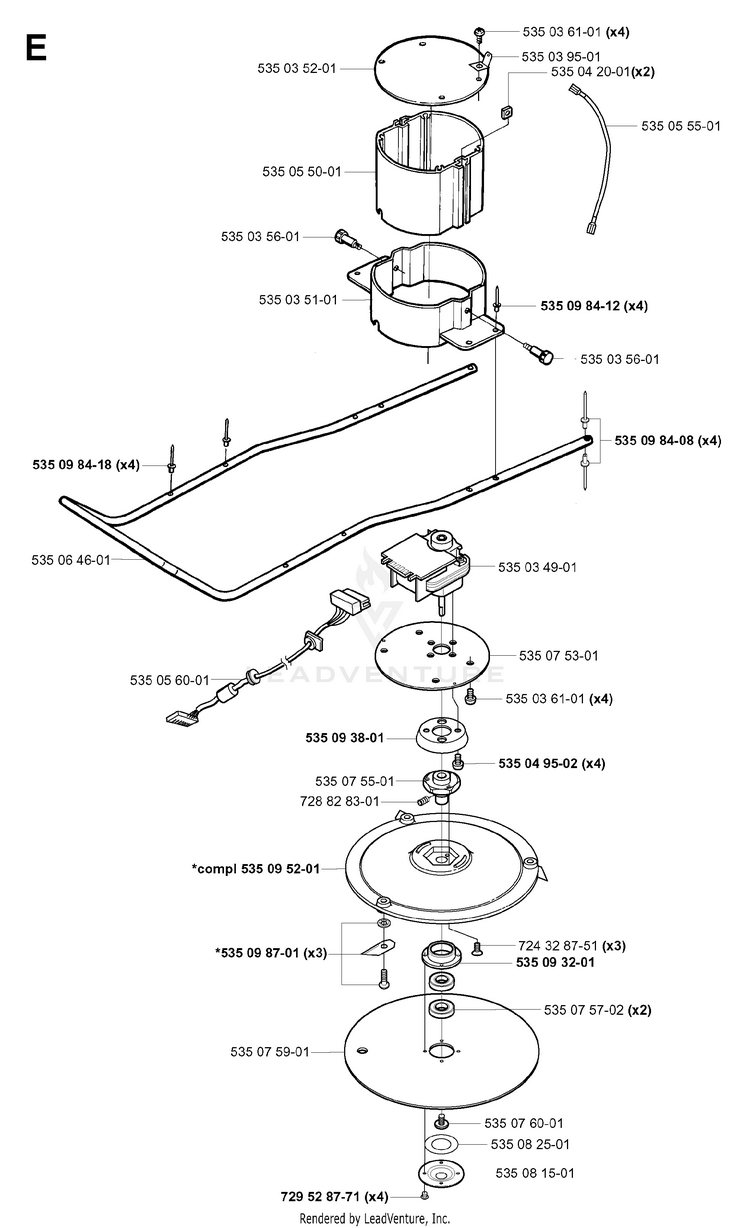

BLADE MOTOR & CUTTING EQUIPMENT 5

...
...
535 06 46-01
TUBE FRAME HUS-535064601
...
535 07 53-01
COVER CUTTING MOTOR HUS-535075301
...
535 03 49-01
MOTOR CUTTING HUS-535034901
...
535 05 50-01
HOUSING HUS-535055001
...
535 07 57-02
SPACER HUS-535075702
...
535 03 56-01
BOLT HEIGHT ADJUSTMENT HUS-535035601
...
535 09 84-18
RIVET HUS-535098418
...
535 09 84-08
RIVET HUS-535098408
...
535 03 51-01
MOUNT CUTTING MOTOR HUS-535035101
...
535 05 60-01
HARNESS HUS-535056001
...
535 03 61-01
SCREW HUS-535036101
...
535 08 15-01
COVER SKID PLATE HUS-535081501
...
724 32 87-51
Screw HUS-724328751
...
729 52 87-71
RETAINER HUS-729528771
...
535 07 59-01
PLATE SKID HUS-535075901
...
535 04 95-02
SCREW HUS-535049502
...
535 09 38-01
ADAPTER HUS-535093801
...
535 05 55-01
GROUND HUS-535055501
...
535 08 25-01
GASKET HUS-535082501
...
535 07 57-02
BALL BEARING BALL BEARING 535 Tube 50 pcs HUS-593080801
...
535 03 95-01
TERMINAL GROUND HUS-535039501
...
535 09 52-01
BLADE DISK HUS-535095201
...
535 03 52-01
COVER CUTTING MOTOR HUS-535035201
...
535 04 20-01
NUT HEIGHT ADJUSTMENT HUS-535042001
...
535 09 32-01
HOLDER HUS-535093201
...
535 07 60-01
SCREW HUS-535076001
...
535 07 55-01
HUB CUTTING DISC HUS-535075501
...
535 09 84-12
RIVET HUS-535098412
...
728 82 83-01
Setscrew Hub HUS-728828301
...
535 09 87-01
BLADES (9 EA W/WASHER & SCREW) HUS-535098701
