Husqvarna SOF550A (2003) Tiller

Model: SOF550A (2003)

Back To Assemblies

Save Part Not Listed?
product name

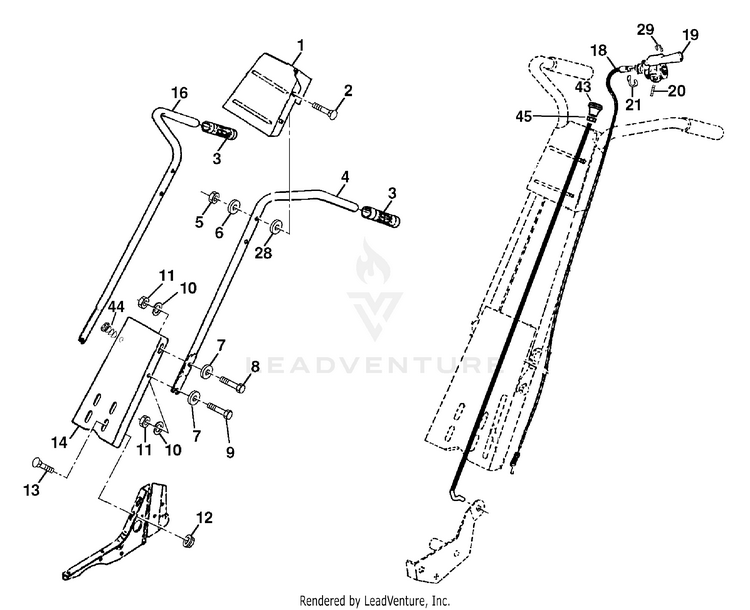

Handle Assembly

...
...
1
Panel Pnt Control HUS-180814X417
...
2
Bolt, Carriage 5/16-18 UNC x 1-12 HUS-72140512
...
3
Grip, Handle HUS-9266R
...
4
Handle, L.H. HUS-166376
...
5
Locknut, Crown 5/16-18 HUS-73680500
...
6
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
7
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
8
Bolt, Hex Hd. 5/16-18 x 1 HUS-74760516
...
9
Bolt, Hex Hd 5/16-18 x 3/4 HUS-74760512
...
10
Washer, Lock 5/16 HUS-10040500
...
11
Nut, Hex 5/16-18 HUS-73220500
...
12
Nut, Flanged 5/16-18 HUS-98000129
...
13
Bolt, Carriage 5/16-18 x 3/4 Gr. 5 HUS-180847
...
14
Panel, Handle HUS-181452X417
...
16
Handle, R.H. HUS-166377
...
18
Cable, Control, Tine HUS-166868
...
19
Lever, Control, Tine HUS-151229
...
20
Pin, Pivot HUS-154805
...
21
Ring, Klip HUS-12000027
...
28
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
29
Retaining, Ring HUS-12000059
...
43
Cable Assembly, Reverse HUS-180528
...
44
Clip HUS-181580
...
45
Nut Keps 3/8-24 Unf HUS-73920600
