Husqvarna SO1538A (2003) Tractor

Model: SO1538A (2003)

Back To Assemblies

Save Part Not Listed?
product name

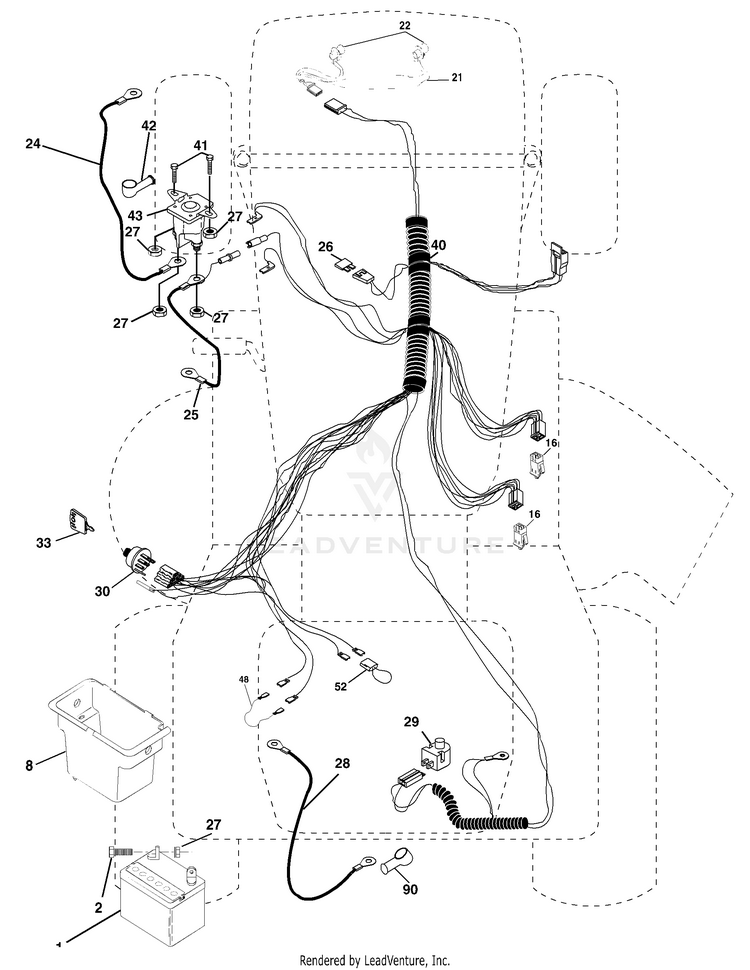

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
8
Box Battery HUS-176689
...
16
Switch Interlock HUS-176138
...
21
Harness Asm Light W/4152j HUS-175685
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga 11" red HUS-4799J
...
25
Cable Battery HUS-146147
...
26
Fuse 20 AMP HUS-175158
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground 6 Ga 12" black HUS-4207J
...
29
Switch Plunger Nc Gray HUS-121305X
...
30
Switch Ign HUS-175566
...
33
Key Ign HUS-140401
...
40
Harness Ign HUS-179720
...
41
Bolt Blk Fin Hex 1/4-20 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
48
Adapter Ammeter HUS-140844
...
52
Protection Wire Loop HUS-141940
...
90
Cover Terminal Battery HUS-180449
