Husqvarna SM706 Type 2 (2008-12) Trimmer/Edger

Model: SM706 Type 2 (2008-12)

Back To Assemblies

Save Part Not Listed?
product name

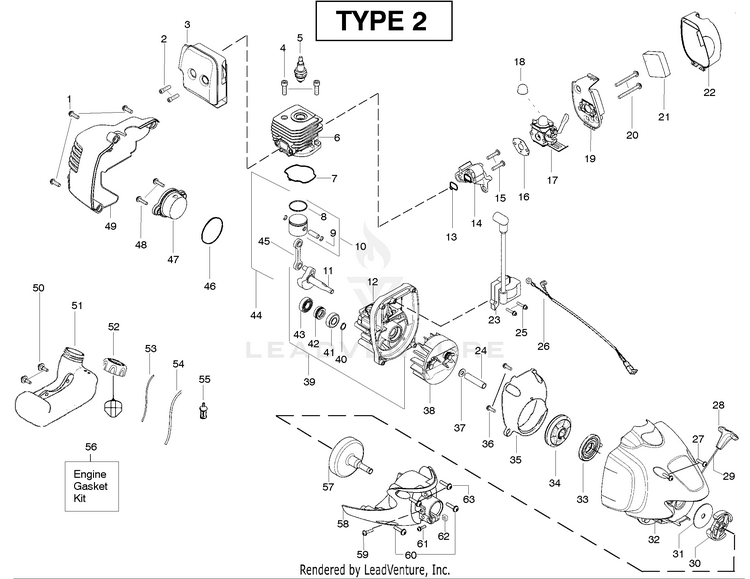

Engine - Type2

...
...
1
Screw HUS-530015880
...
2
Bolt-Muffler HUS-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) HUS-545227901
...
4
Screw-Cylinder HUS-530015953
...
5
Spark Plug (RCJ 6Y) HUS-952030249
...
6
Cylinder HUS-530012541
...
7
Seal-Cylinder (kit) HUS-530071750
...
8
RING PISTON HUS-545154001
...
9
Retainer-Piston Pin HUS-530015162
...
10
Kit - Piston (Incl. 8, 9) HUS-530071833
...
11
ASSY CRANKSHAFT HUS-545145802
...
12
Assy-Crankcase (Incl. 41,42,43) HUS-530012582
...
13
Seal-Cyl/Carb.(kit) HUS-530071750
...
14
Adapter-Carb. HUS-530057547
...
15
Screw HUS-530016441
...
16
Gasket-Carb. (kit) HUS-530071750
...
17
Kit-Carb.(C1U-W19) HUS-530071811
...
18
Bulb - Purge HUS-530058709
...
19
Air Box HUS-545077501
...
20
Screw HUS-530016429
...
21
Foam-Air Filter HUS-530036575
...
22
Cover-Air Box HUS-530057545
...
23
KIT MODULE W/O INTERRUPT HUS-545081826
...
24
Spacer-Flywheel HUS-530059758
...
25
Screw HUS-530016357
...
26
Assy-Switch wire HUS-530047278
...
27
Screw HUS-530016386
...
28
Handle-Starter HUS-530054834
...
29
Kit - Rope HUS-530071798
...
30
Assy-Clutch HUS-530055122
...
31
Washer-Clutch HUS-530094189
...
32
Assy.-Fan Hsg HUS-545016004
...
33
KIT STARTER SPRING HUS-545008014
...
34
Kit-Starter Pulley HUS-545050407
...
35
Baffle HUS-545080601
...
36
Screw HUS-530015880
...
37
Washer-Clutch Flat HUS-530016463
...
38
Assy-Flywheel HUS-530039243
...
39
ASSY CRANKCASE & CRANKSHAFT (Incl. 11,12,40) HUS-545102101
...
40
Retain. Ring-C'shaft HUS-530015941
...
41
Outer Bearing HUS-530055728
...
42
Seal-C'shaft HUS-530019264
...
43
BEARING BALL 6001 HUS-738210101
...
44
Kit-piston/rod (Incl. 10,45) HUS-530071785
...
45
CONNECTING ROD ASSY HUS-530049817
...
46
O-Ring-C'case (kit) HUS-530071750
...
47
Assy-Plug (incl.46) HUS-530057954
...
48
Screw HUS-530016386
...
49
Shroud-Rear HUS-530057539
...
50
Retainer-Tank HUS-530016445
...
51
Assy-Fuel Tank (incl. filter, lines fuel cap) HUS-545103702
...
52
Assy-Fuel Cap HUS-530057973
...
53
Kit-Fuel Line (Small) HUS-530069247
...
54
Kit-Fuel Line (Large) HUS-530069216
...
55
Assy-Fuel Pickup HUS-530095646
...
56
Kit-Engine Gasket (Incl. 7,13,16,46) HUS-530071750
...
57
Assy-Clutch Drum HUS-530150247
...
58
Assy-Clutch Cover (Incl. 61,62) HUS-545077301
...
59
Screw-Align HUS-530016319
...
60
Screw HUS-530015772
...
61
Screw 12-24 HUS-530016381
...
62
Nut 12-24 HUS-530016382
...
63
Screw HUS-530015814
