Husqvarna SM400 Type 1 (2006-12) Blower

Model: SM400 Type 1 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

Housing Type 1

...
...
1
Air Dam (kit) HUS-530071459
...
2
Gasket-Adapter (kit) HUS-530071458
...
3
Carburetor Adaptor HUS-530035561
...
4
Screw HUS-530016309
...
5
Gasket-Carburetor (kit) HUS-530071458
...
6
Kit-Carb Ass’y. Walbro-(WT-606) HUS-530071775
...
6
Kit-Carb Ass’y. (WT-606) HUS-530071775
...
7
Air Box HUS-530056629
...
8
Screw-Carb. HUS-530015849
...
9
Filter-Air HUS-530049383
...
10
Cover-Air Filter HUS-530056581
...
11
Screw HUS-530016349
...
12
Guard-Muffler HUS-545085001
...
13
Handle HUS-530095469
...
14
Foam 71.12mm (Kit) HUS-530071459
...
15
Screw HUS-530015886
...
16
Isolator HUS-530049323
...
17
Nut HUS-530015197
...
18
Knob-Blower HUS-530016322
...
19
Assy-Shroud RH HUS-545018204
...
20
Spring-Cover Latch HUS-530402044
...
21
Guide-Starter Rope HUS-530049617
...
22
Shroud - LH HUS-545018103
...
23
Isolator-Crankcase HUS-530036792
...
24
Assy-Fuel Tank HUS-545058007
...
25
Gasket-Fuel Tank HUS-530049527
...
26
Assy-Fuel Cap HUS-530057973
...
27
Grommet-Shroud HUS-530049656
...
28
Kit-Line Carb/Purge HUS-530069247
...
29
Kit-Line Tank/Purge HUS-530069216
...
30
Assy-Fuel Pick-up HUS-530095646
...
31
Grommet-Fuel line (kit) HUS-530071459
...
32
Tube-Blower HUS-530095593
...
32
Operator Manual Not Shown HUS-530164583
...
32
Warning Decal Not Shown HUS-530057414

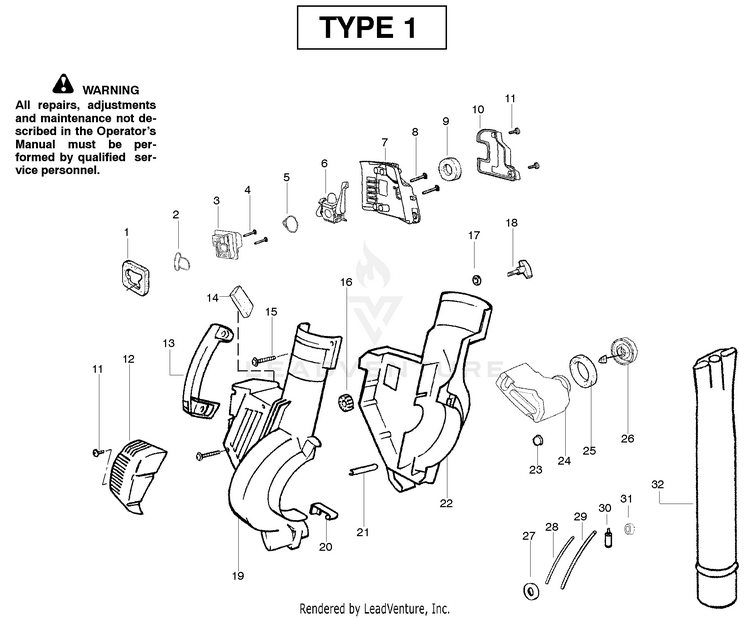

Schematic Image Zoomed
