product name

Husqvarna SG13 - 968999353 (2005-12) Lawn Tractor

Model: SG13 - 968999353 (2005-12)

Save Part Not Listed?
product name

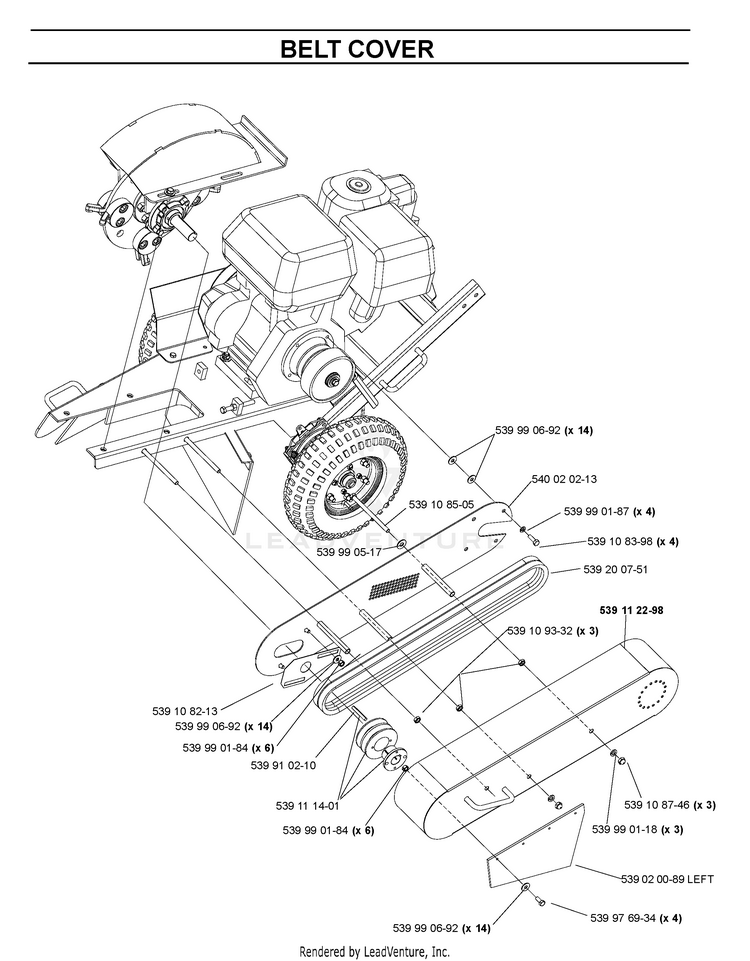

BELT GUARD & PULLEY

...
...
539 99 01-84
Nuts HUS-596580701
...
539 97 69-34
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539 11 22-98
COVER, BELT W/TRIM HUS-539112298
...
539 10 87-46
NUT 3/8-16 ACORN HEX HUS-539108746
...
539 99 01-87
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
539 10 83-98
BOLT, 5/16-24X1 GR5 HCS HUS-539108398
...
539 10 93-32
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 HUS-596433501
...
539 99 06-92
GSPH HUS-596134901
...
539 10 85-05
HCS 3/8-16 X 5-1/2 HUS-539108505
...
539 20 07-51
V-BELT-"B" SECT/SET OF 2 HUS-539200751
...
539 02 00-89
DEFLECTOR, NEOPRENE, LEFT SIDE LEFT HUS-539020089
...
539 91 02-10
KEY 1/4 SQ X 2 HUS-539910210
...
539 99 01-18
Washers HUS-596238701
...
540 02 02-13
BACK PLATE-ORANGE- BELT GUARD HUS-540200350
...
539 99 05-17
GSPW Washers HUS-596433701
...
539 10 82-13
PLATE, COVER STUMPGRINDER HUS-539108213
...
539 11 14-01
PULLEY KIT STUMP GRINDER HUS-539111401

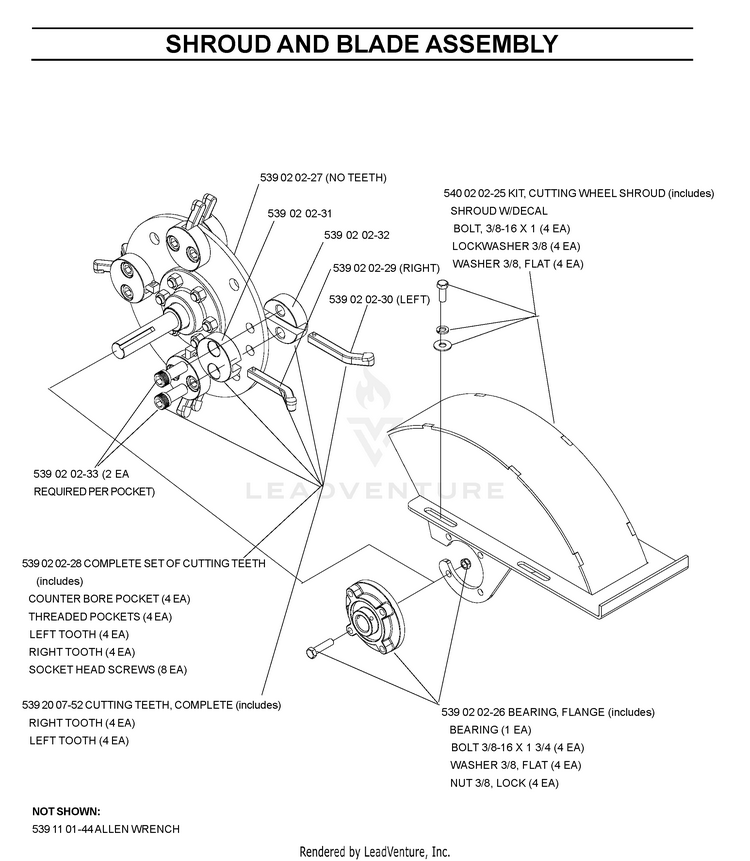

BLADE DRIVE & DEPTH CONTROL

...
...
539 02 02-26
BEARING KIT STUMPGRINDER BEARING, FLANGE (INCLUDES) BEARING (1 EA) BOLT 3/8-16 X 1 3/4 (4 EA) WASHER 3/8, FLAT (4 EA) NUT 3/8, LOCK (4 EA) HUS-539020226
...
539 02 02-33
KIT POCKET BOLTS STUMP GR 2 EA REQUIRED PER POCKET HUS-539020233
...
539 02 02-28
KIT, CUTTING TEETH SET, S G COMPLETE SET OF CUTTING TEETH (INCLUDES) COUNTER BORE POCKET (4 EA) THREADED POCKETS (4 EA) LEFT TOOTH (4 EA) RIGHT TOOTH (4 EA) SOCKET HEAD SCREWS (8 HUS-539020228
...
539 02 02-31
KIT, COUNTER BORE POCKET HUS-539020231
...
539 11 01-44
ALLEN WRENCH 1/2" X 8" LG MIN NOT SHOWN: ALLEN WRENCH HUS-539110144
...
540 02 02-25
CUTTING SHROUD W/DECAL KIT, CUTTING WHEEL SHROUD (INCLUDES) SHROUD W/DECAL BOLT, 3/8-16 X 1 (4 EA) LOCKWASHER 3/8 (4 EA) WASHER 3/8, FLAT (4 EA) HUS-540020225
...
539 02 02-32
KIT, THREADED POCKET HUS-539020232
...
539 02 02-29
TOOTH RIGHT STUMP GRINDER RIGHT HUS-539020031
...
539 20 07-52
KIT CUTTING TEETH COMPLETE CUTTING TEETH, COMPLETE (INCLUDES) RIGHT TOOTH (4 EA) LEFT TOOTH (4 EA) HUS-539200752
...
539 02 02-30
TOOTH LEFT STUMP GRINDER LEFT HUS-539020032
...
539 02 02-27
KIT CUTTING WHEEL NO TEETH HUS-539020227

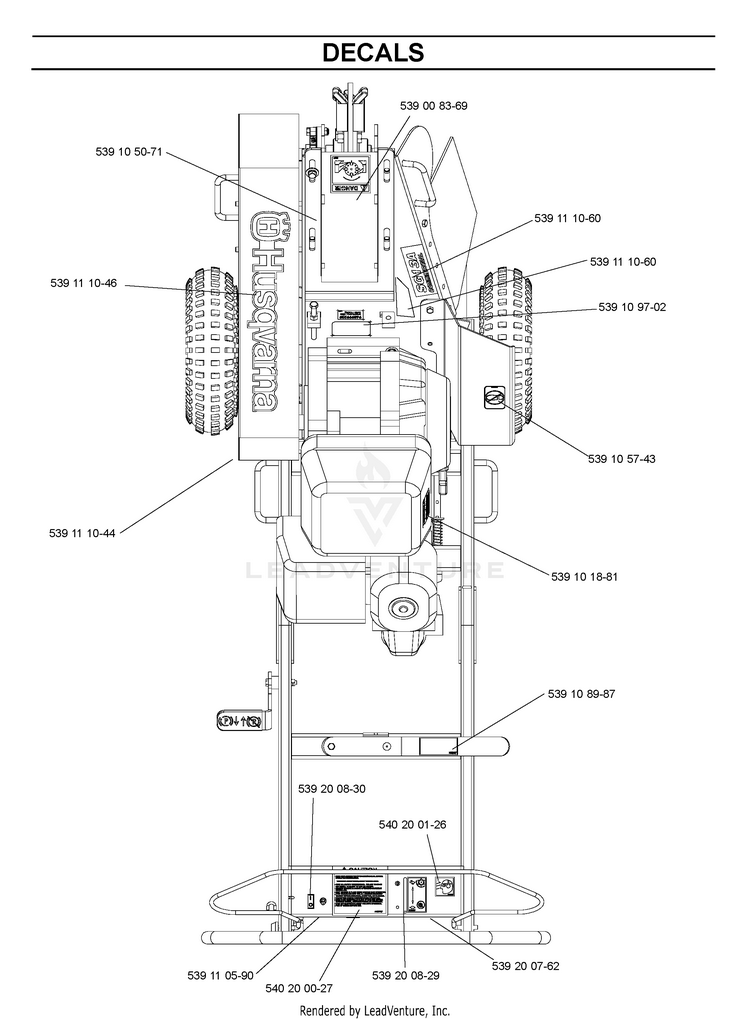

DECALS

...
...
539 10 57-43
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
539 11 10-44
DECAL, CROWN H 3-1/8 BLUE HUS-539111044
...
539 00 83-69
DECAL, DANGER S G FOOT HUS-539008369
...
539 11 05-90
DECAL, OPN STUMP HUS-539110590
...
539 11 10-60
DECAL, SG13 HUS-539111060
...
539 10 50-71
DECAL, NASCAR HUS-539105071
...
539 20 07-62
DECAL, SOUND PWR 107D8 HUS-539200762
...
539 10 89-87
DECAL, HANDLE ADJ HUS-540108987
...
539 11 10-46
DECAL, HUSQ 15" BLUE HUS-539111046
...
540 20 00-27
DECAL, WARNING HUS-539008318
...
539 10 18-81
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
539 10 97-02
DECAL, CE 968999239 HUS-539109702
...
539 20 08-30
DECAL, ON/OFF HUS-539200830
...
539 20 08-29
DECAL, THROTTLE HUS-539200829
...
540 20 01-26
DECAL, EAR/EYE WARNING HUS-540200126

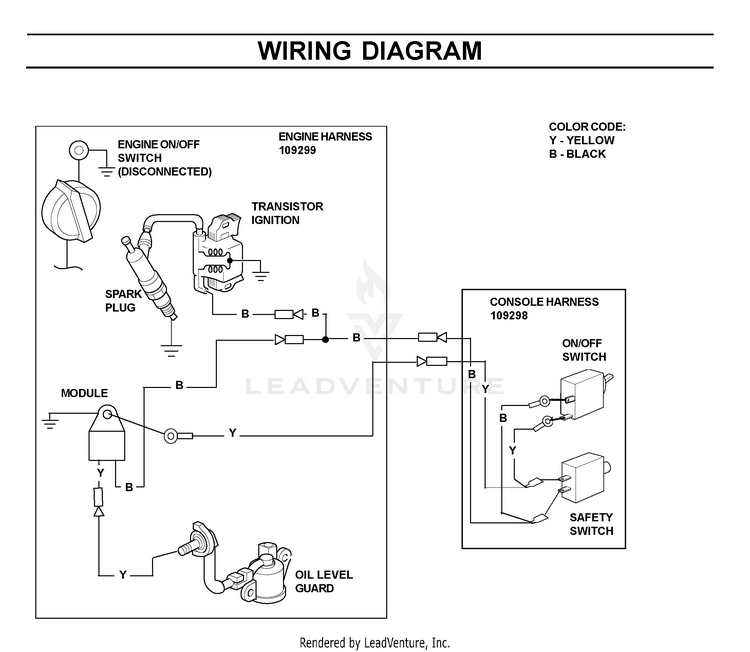

ELECTRICAL

...

No Parts Available for this Schematic

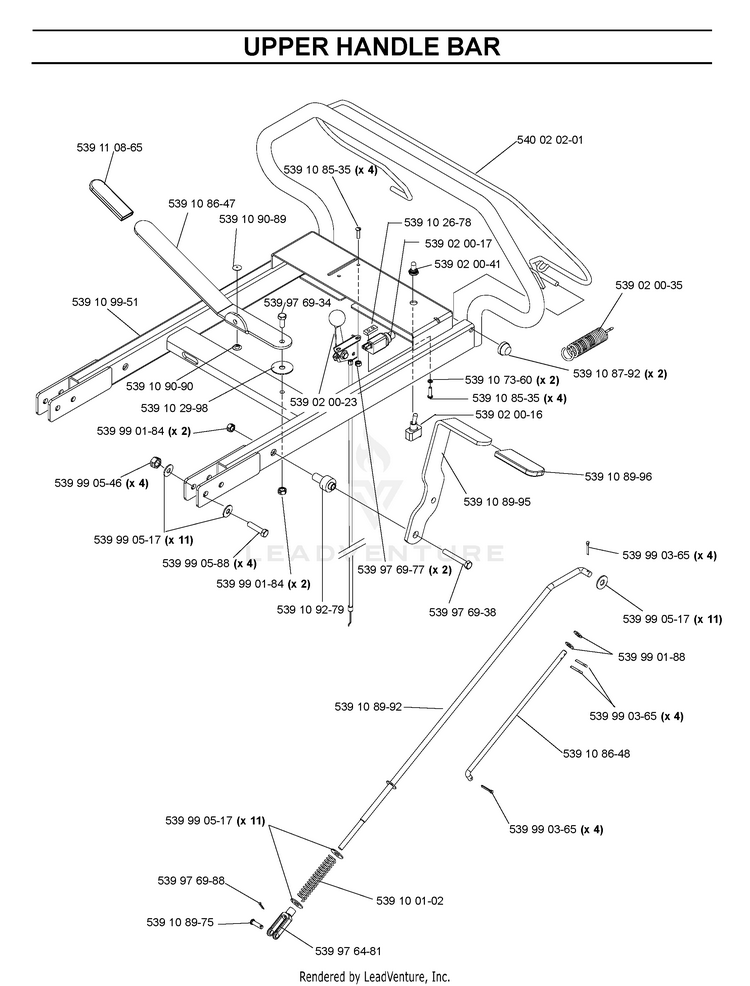

HANDLE & CONTROLS

...
...
539 02 00-17
SWITCH, NC PLUNGER HUS-539020017
...
539 10 89-92
ROD ASM, PARK BRAKE HUS-539108992
...
539 10 99-51
HANDLE W/DECAL, UPPER LT BLUE HUS-539109951
...
539 02 00-35
SPRING, EXTENSION HUS-540020035
...
539 99 05-88
HCS 3/8C X 2 HUS-539990588
...
539 99 03-65
Pins HUS-596029501
...
539 10 85-35
SCR #10-24 X 3/4 HUS-539108535
...
539 97 69-34
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539 10 89-75
CLEVIS PIN HUS-539108975
...
539 11 08-65
GRIP HUS-539110865
...
539 10 86-48
ROD, POSITION ADJ HUS-539108648
...
539 99 05-17
GSPW Washers HUS-596433701
...
539 10 73-60
Washers HUS-596987301
...
539 99 01-84
Nuts HUS-596580701
...
539 10 01-02
COMP. SPRING HUS-539100102
...
539 10 86-47
HANDLE, POSITION ADJ HUS-539108647
...
539 02 00-23
THROTTLE CABLE, STUMP GRINDER HUS-539020023
...
539 97 69-77
Hardware HUS-596040801
...
539 97 64-81
YOKE 5/16 ADJ CLEVIS HUS-539976481
...
539 10 29-98
WASHER, FRICTION HUS-539102998
...
539 99 05-46
Nuts HUS-595305901
...
539 02 00-16
KIT, TOGGLE SWITCH, S G HUS-539020209
...
539 97 69-88
Pins HUS-596580601
...
539 10 90-90
RIVET.SNAP-FEMALE.HALF.NYLON.W HUS-539109090
...
539 02 00-41
BOOT, TOGGLE SWITCH HUS-539020041
...
539 10 92-79
BUSHING, STEP .34IDX1.82LG STL HUS-539109279
...
539 10 89-96
GRIP, PARK BRAKE HUS-540108996
...
539 99 01-88
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
539 10 90-89
RIVET.SNAP-MALE.HALF.NYLON.WHI HUS-539109089
...
539 10 87-92
NUT 5/16 PUSH CAP HUS-539108792
...
539 10 89-95
HANDLE, WHEEL BRAKE HUS-539108995
...
539 10 26-78
TAPPED PLATE HUS-539102678
...
540 02 02-01
KIT,BAIL,STUMP GRINDER HUS-539020201
...
539 97 69-38
CAPSCREW HUS-539976938

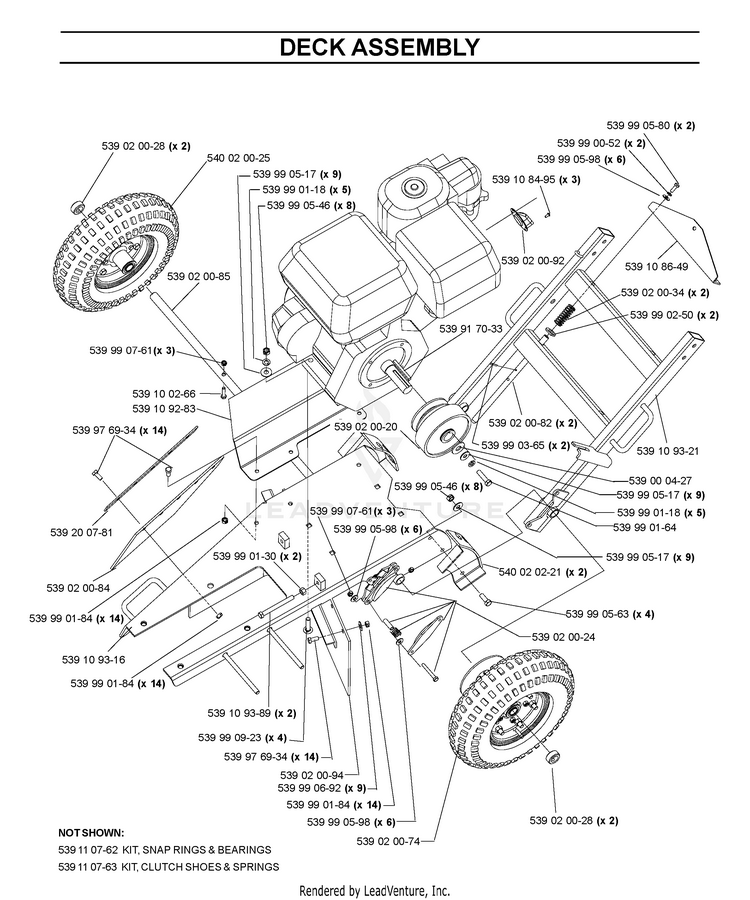

MOWER DECK / CUTTING DECK

...
...
539 99 05-98
Washers HUS-597338501
...
539 10 93-89
HCS 3/8-16X3 1/2 GR5 HUS-539109389
...
539 10 93-21
HANDLE WLD LWR HALF-GREY HUS-539109321
...
539 99 01-84
Nuts HUS-596580701
...
539 02 00-20
CENTRIFUGAL CLUTCH/2-GRV HUS-539020020
...
539 99 01-18
Washers HUS-596238701
...
539 02 00-84
DEFLECTOR, NEOPRENE, RT SIDE HUS-539020084
...
539 97 69-34
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539 99 05-17
GSPW Washers HUS-596433701
...
539 02 00-74
WHEEL.12".SNOW.HOG.STUMPGRINDE HUS-539020074
...
539 00 04-27
DNB CABLE NEG BATTERY HUS-539000427
...
539 10 86-49
BRACKET, HANDLE POSITIONING HUS-539108649
...
539 99 05-46
Nuts HUS-595305901
...
539 99 03-65
Pins HUS-596029501
...
539 99 01-30
NUT 3/8-16 HUS-539990130
...
539 02 00-28
SET COLLAR, 3/4" HUS-540020028
...
539 99 06-92
GSPH HUS-596134901
...
539 02 00-82
PIN, HANDLE ADJUST, S G HUS-539020082
...
539 02 00-34
SPRING, COMPRESSION HUS-539020034
...
539 99 09-23
RHSNB 3/8-16X1-3/4 HUS-539990923
...
539 10 02-66
BOLT HEX 1/4 X 1-1/4 HUS-539100266
...
539 99 01-64
HCS 3/8F X 1 1/2 HUS-539990164
...
539 10 92-83
FENDER, SG13A-ORG HUS-539109283
...
539 02 00-92
DEFLECTOR, EXHAUST HUS-539020092
...
539 02 00-24
BRAKE CALIPER, STUMP GRINDER HUS-539020024
...
539 02 00-85
AXLE, MACH., STUMP GRINDER HUS-539020085
...
539 99 00-52
Washers HUS-596564801
...
539 99 05-63
Bolts HUS-596564401
...
539 99 07-61
NUT 1/4C CENTER LOCK HUS-539990761
...
539 99 02-50
Washers HUS-595086801
...
539 99 05-80
Screws HUS-596230901
...
539 10 84-95
SCREW - #8-32 X 3/8 HUS-539108495
...
540 02 02-21
HANDLE ADJUSTMENT BRACKET HUS-540020221
...
539 91 70-33
KEY 1/4 SQ X 2-1/2 HUS-539917033
...
539 10 93-16
DECK ASM, SG13A ORANGE HUS-539109316
...
539 20 07-81
STRAP, DEFLECTOR HUS-539200781
...
539 02 00-94
DEFLECTOR, NEOPRENE, REAR HUS-539020094
...
540 02 00-25
WHEEL.12".STUMPGRINDER HUS-540020025
