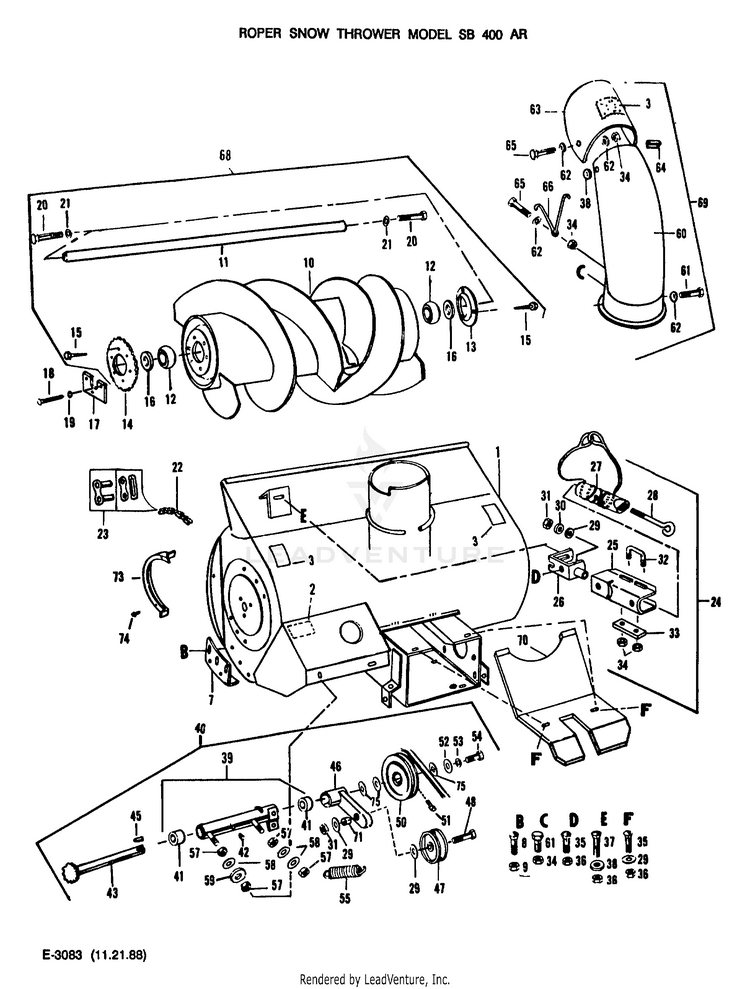

Husqvarna SB400AR (1999 & Before) Tractor

Model: SB400AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

FRONT END ASSY.

...
...
1
HEADER & DECAL ASSY HUS-11435
...
2
DECAL HUS-9713
...
3
DECAL HUS-18093
...
7
SKID SHOE HUS-3045
...
8
BOLT HUS-7953
...
9
NUT & WASHER ASSY HUS-GM271184
...
10
AUGER ASSY HUS-9044
...
11
AUGER SHAFT HUS-8350
...
12
AUGER SHAFT BEARING HUS-9052
...
13
BEARING FLANGE HUS-5473
...
14
AUGER SPROCKET HUS-8287
...
15
BOLT HUS-GM180077
...
16
ASSY, GEAR HUS-4143
...
17
AUGER MOUNTING PLATE HUS-8185
...
18
BOLT HUS-GM180075
...
19
WASHER HUS-GM120214
...
20
BOLT HUS-GM180175
...
21
WASHER HUS-GM120384
...
22
AUGER DRIVE TRAIN HUS-3911
...
23
CHAIN REPAIR KIT HUS-8456
...
24
STACK DRIVE BRKT ASSY HUS-9283
...
25
STACK DRIVE SHROUD HUS-9030
...
26
BRACKET & TUBE ASSY HUS-9032
...
27
CABLE, TUBE & SLEEVE ASSY HUS-8346
...
28
WASHER HUS-3955
...
29
WASHER HUS-GM120388
...
30
SPRING WASHER HUS-4772
...
31
NUT HUS-GM9413534
...
32
"U" BOLT HUS-8236
...
33
FRICTION STRAP HUS-8299
...
34
NUT HUS-4119
...
35
BOLT HUS-GM126227
...
36
NUT & WASHER ASSY HUS-GM271190
...
37
BOLT HUS-GM120915
...
38
WASHER HUS-4506
...
39
JSHAFT HSG & BRG ASSY HUS-11438
...
40
JSHAFT HOUSING ASSY HUS-11437
...
41
BEARING HUS-8689
...
42
GREASE FITTING HUS-5074
...
43
JSHAFT & SPROCKET ASSY HUS-11439
...
45
KEY HUS-3259
...
46
IDLER ARM ASSY HUS-11381
...
47
IDLER PULLEY ASSY HUS-11496
...
48
BOLT HUS-GM180134
...
50
PULLEY & HUB ASSY HUS-3384
...
51
SCREW HUS-GM142671
...
52
WASHER HUS-GM446363
...
53
WASHER HUS-GM120382
...
54
BOLT HUS-GM180120
...
55
SPRING HUS-3059
...
57
NUT HUS-GM120378
...
58
WASHER HUS-GM120389
...
59
WASHER HUS-6979
...
60
DEFLECTOR & ELBOW ASSY HUS-4957
...
61
BOLT HUS-GM180016
...
62
CABLE WASHER HUS-3903
...
63
DECAL & DEFLECTOR ASSY HUS-9766
...
64
DEFLECTOR MOLDING HUS-6558
...
65
BOLT HUS-GM180020
...
66
LIFT SPRING HOOK HUS-3076
...
68
AUGER ASSY HUS-8347
...
69
DEFLECTOR & ELBOW ASSY HUS-6457
...
70
DRIVE PULLEY GUARD HUS-11420
...
71
SPACER HUS-5713
...
73
GUARD CHAIN HUS-3036
...
74
SCREW HUS-GM9414012
...
75
WASHER HUS-GM456141
...
xx
INSTRUCTION & REPAIR MANUAL HUS-18896
...
xx
WARRANTY HANG CARD HUS-10866-1
...
xx
SCRAPER BLADE REPAIR KIT HUS-12073
