Husqvarna S165H42D (2001) Tractor

Model: S165H42D (2001)

Back To Assemblies

Save Part Not Listed?
product name

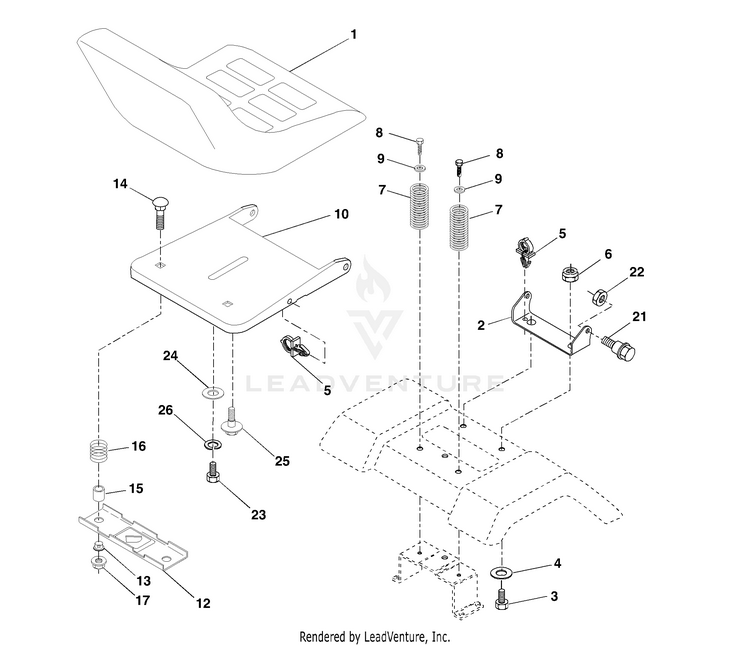

Seat Assembly

...
...
1
Seat HUS-140116
...
2
Bracket Pnt Pivot Seat (blk ) HUS-140551
...
3
Bolt HUS-71110616
...
4
Washer 13/32 x 1 x 10 Ga HUS-19131610
...
5
Clip Push-In Hinged HUS-145006
...
6
Nut HUS-73800600
...
7
Spring Seat Cprsn 2 250 Blk Zi HUS-124181X
...
8
Screw 3/8-16 x 1.5 HUS-17000616
...
9
Washer 13/32 x 1 x 14 Ga HUS-19131614
...
10
Pan Pnt Seat (blk ) HUS-174894
...
12
Bracket Pnt Mounting Switch HUS-121246X
...
13
Bushing Snap Blk Nyl 50 Id HUS-121248X
...
14
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 HUS-72050412
...
15
Spacer Split 28 x 96 Yel Zinc HUS-134300
...
16
Spring Cprsn 1 27 Blk Pnt HUS-121250X
...
17
Nut Lock 1/4 Lge Flg Gr 5 Zinc HUS-123976X
...
21
Bolt Shoulder 5/16-18 Unc Blkz-2A HUS-171852
...
22
Nut HUS-73800500
...
23
Bolt Hex Black HUS-71110814
...
24
Washer 17/32 x 1-3/16 x 12 Ga HUS-19171912
...
25
Bolt Shoulder 5/16-18 x 62 HUS-127018X
...
26
Lockwasher HUS-10040800
