Husqvarna Rider 155 (2003-01) Ride Mower

Model: Rider 155 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

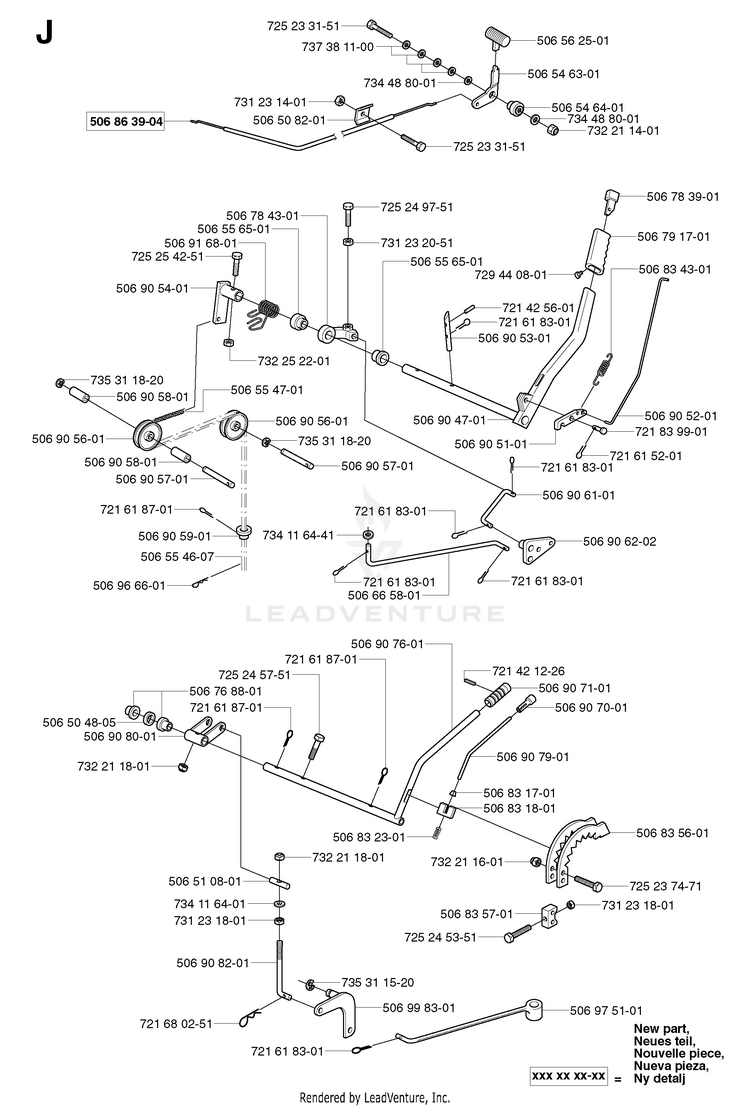

CONTROLS

...
...
506 90 61-01
Linkage HUS-506906101
...
735 31 18-20
Lock Ring HUS-735311820
...
506 78 39-01
Button HUS-506783901
...
506 90 53-01
PIN HUS-525406601
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 97 51-01
CLUTCH ROD HUS-506975101
...
506 55 65-01
BEARING FLANGE HUS-584871301
...
506 90 82-01
LINKAGE HUS-506908201
...
725 24 53-51
SCREW HUS-725245371
...
506 90 57-01
SHAFT HUS-506905701
...
506 90 47-01
LIFTING LEVER ASSY HUS-501018602
...
725 23 31-51
SCREW M6S 5X20 HUS-725233151
...
721 61 87-01
COTTER PIN HUS-721618701
...
721 61 52-01
Cotter Pin HUS-721615201
...
734 11 64-41
SPACER HUS-734116441
...
506 90 71-01
KNOB HUS-506907101
...
725 24 57-51
SCREW HUS-725245751
...
734 48 80-01
WASHER HUS-734488001
...
506 86 39-04
THROTTLE CABLE HUS-506863904
...
731 23 18-01
NUT HUS-731231801
...
506 96 66-01
RETAINER HUS-506966601
...
506 50 82-01
CLAMP HUS-506508201
...
506 83 23-01
SPRING HUS-506832301
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
725 23 74-71
SCREW M6S 6X30 HUS-725237471
...
506 83 18-01
CATCH HUS-506831801
...
506 55 47-01
LINK HUS-506554701
...
506 83 56-01
Index Plate HUS-506835601
...
506 78 43-01
LEVER CLUTCH HUS-506784301
...
506 90 56-01
PULLEY HUS-506905601
...
737 38 11-00
SPRING WASHER HUS-737381100
...
725 24 97-51
SCREW HUS-725249751
...
721 42 56-01
PIN HUS-721125930
...
506 51 08-01
CLEVIS PIN HUS-506510801
...
721 83 99-01
Clevis Pin HUS-721839901
...
506 54 63-01
THROTTLE LEVER HUS-506546301
...
735 31 15-20
RETAINING RING HUS-735311520
...
506 79 17-01
Hand Grip HUS-506791701
...
506 83 57-01
Clamp HUS-506835701
...
506 55 46-07
CHAIN HUS-506554607
...
506 90 52-01
Rod HUS-506905201
...
506 90 54-01
Lever HUS-506905401
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
506 90 79-01
ROD HUS-506907901
...
506 90 58-01
SPACER HUS-506905801
...
506 50 48-05
WASHER HUS-506504805
...
506 90 76-01
LEVER HUS-506907601
...
506 90 51-01
Lever HUS-506905101
...
506 54 64-01
PIVOT BUSHING HUS-506546401
...
721 61 83-01
Split Pin HUS-721618301
...
506 56 25-01
HANDLE HUS-506562501
...
506 91 68-01
SPRING HUS-506916801
...
506 90 62-02
LINK HUS-506906202
...
506 90 70-01
BUTTON HUS-506907001
...
506 83 17-01
END PIECE HUS-506831701
...
725 25 42-51
Screw HUS-725254251
...
721 68 02-51
R-CLIP HUS-721680251
...
506 76 88-01
Bushing HUS-506768801
...
506 83 43-01
SPRING HUS-506834301
...
732 25 22-01
Nut HUS-732252201
...
729 44 08-01
Screw HUS-729440801
...
506 90 59-01
BUSHING HUS-506905901
...
506 99 83-01
Bracket HUS-506998301
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
731 23 20-51
Nut HUS-731232001
...
721 42 12-26
SPRING PIN 3X24 HUS-721421226
...
506 90 80-01
Lever HUS-506908001
...
506 66 58-01
ROD HUS-506665801
...
731 23 14-01
NUT HUS-731231401
