Husqvarna Rider 155 (2003-01) Ride Mower

Model: Rider 155 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

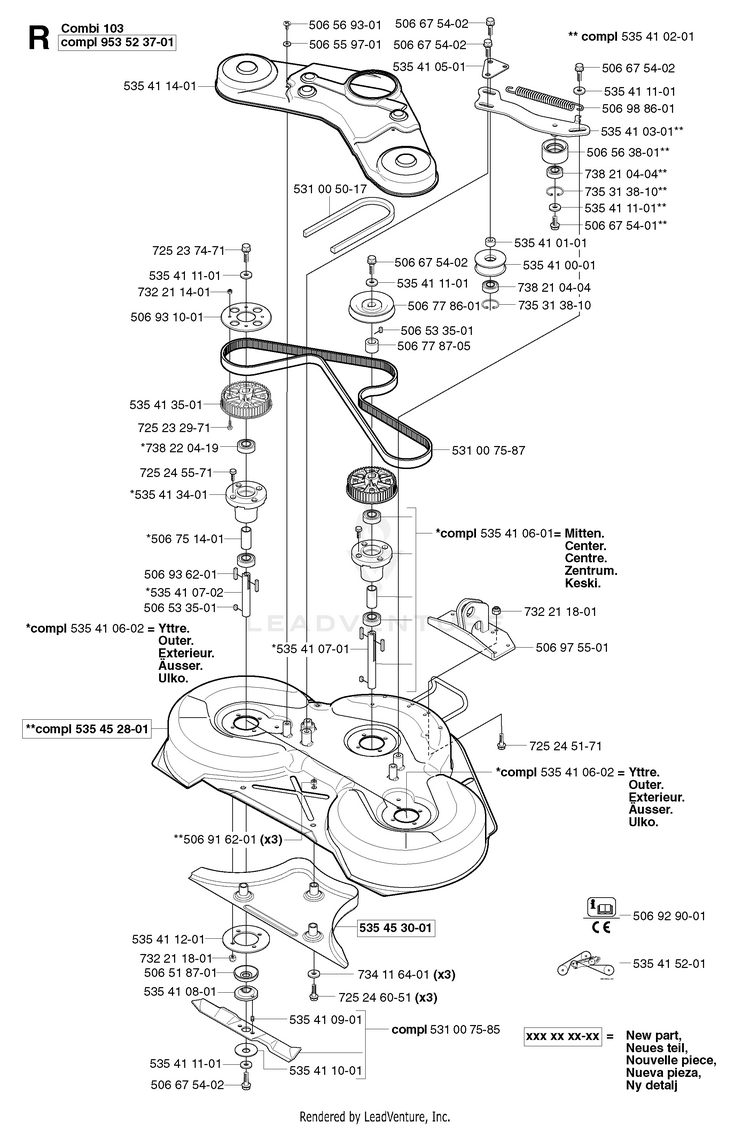

103CM CUTTING DECK

...
...
506 75 14-01
SPACER HUS-506751401
...
535 45 30-01
PLUG HUS-535453001
...
535 41 35-01
PULLEY HUS-535413501
...
531 00 75-85
BLADE COMPLETE RIDER 155 HUS-531007585
...
535 41 06-02
BLADE HOUSING ASSY YTTRE. HUS-535410602
...
506 93 10-01
FLANGE HUS-506931001
...
506 67 54-01
BOLT HUS-506675401
...
953 52 37-01
Compl HUS-953523701
...
735 31 38-10
RETAINING RING HUS-735313810
...
506 53 35-01
KEY HUS-506533501
...
535 41 11-01
WASHER HUS-535411101
...
535 41 52-01
BELT DECAL HUS-535415201
...
725 24 55-71
SCREW HUS-725245571
...
506 77 87-05
Spacer HUS-506778705
...
535 41 02-01
TENSIONER HUS-535410201
...
506 67 54-02
BOLT HUS-506675402
...
506 98 86-01
Springs HUS-594924101
...
506 92 90-01
DECAL HUS-506929001
...
506 56 93-01
SCREW HUS-506982601
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 56 38-01
ROLLER HUS-506563801
...
725 23 74-71
SCREW M6S 6X30 HUS-725237471
...
535 41 14-01
COVER HUS-535411401
...
725 24 51-71
SCREW HUS-725245171
...
535 41 08-01
ADAPTER HUS-535410801
...
506 51 87-01
BEARING COVER HUS-506518701
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
535 41 01-01
SPACER HUS-535410101
...
531 00 50-17
BELT HUS-589530601
...
506 55 97-01
WASHER HUS-506559701
...
535 45 28-01
HOUSING HUS-535452801
...
725 24 60-51
SCREW HUS-725246351
...
535 41 00-01
PULLEY HUS-535410001
...
738 22 04-19
BALL-BEARING 6204-2RS HUS-738220419
...
535 41 09-01
PIN HUS-535410901
...
535 41 03-01
TENSION HUS-535410301
...
531 00 75-87
BELT HUS-589533701
...
506 97 55-01
Bracket HUS-506975501
...
535 41 10-01
WASHER HUS-535411001
...
506 91 62-01
NUT HUS-506916201
...
725 23 29-71
SCREW HUS-725232971
...
535 41 05-01
LINK HUS-535410501
...
535 41 07-02
SHAFT HUS-535410702
...
535 41 34-01
BEARING HOUSING HUS-535413401
...
738 21 04-04
BALL BEARING 6004-2RS1 HUS-738210404
...
535 41 06-01
MANDREL ASSY. MITTEN HUS-535410601
...
535 41 12-01
WASHER HUS-535411201
...
535 41 07-01
SHAFT HUS-535410701
...
506 77 86-01
PULLEY HUS-506778601
...
506 93 62-01
KEY HUS-506936201
