Husqvarna Rider 155 (2003-01) Ride Mower

Model: Rider 155 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

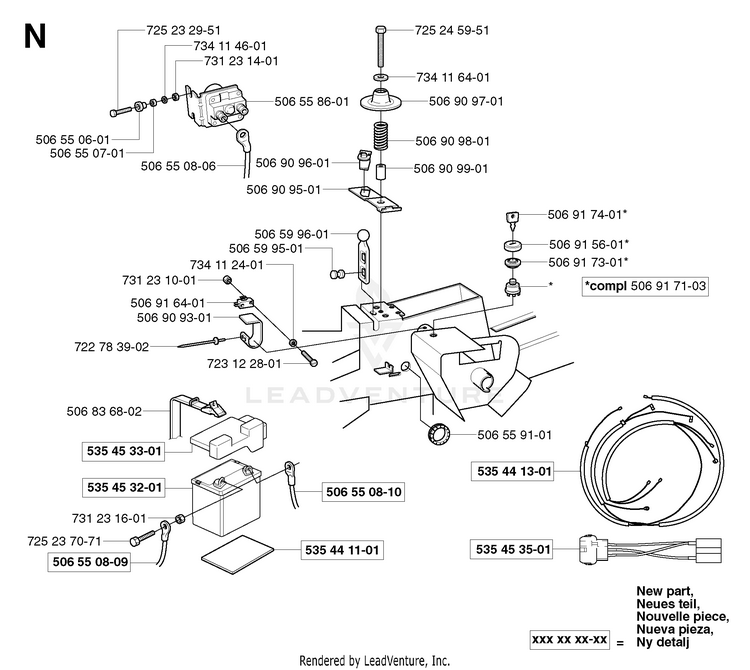

ELECTRICAL

...
...
722 78 39-02
Rivet HUS-722783902
...
725 24 59-51
SCREW HUS-725245951
...
506 90 97-01
WASHER HUS-506909701
...
506 59 95-01
Button HUS-506599501
...
731 23 16-01
NUT HUS-731231601
...
723 12 28-01
Screw HUS-723122801
...
506 59 96-01
Support Strap HUS-506599601
...
506 91 64-01
SWITCH HUS-574316001
...
731 23 10-01
NUT M6M M3 HUS-731231001
...
535 44 13-01
CABLE ASSY HUS-535441301
...
506 55 86-01
STARTING SOLENOID HUS-506558601
...
506 55 08-06
Cable HUS-506550806
...
535 44 11-01
MAT HUS-535441101
...
506 90 98-01
SPRING HUS-506909801
...
731 23 14-01
NUT HUS-731231401
...
506 90 96-01
SWITCH HUS-506909601
...
506 55 06-01
SPACER HUS-506550601
...
535 45 35-01
ADAPTER HUS-535453501
...
506 91 74-01
KEY SET HUS-516844602
...
725 23 29-51
Slotted Truss Head Screw #10-32 x 5/8" HUS-725232951
...
506 90 95-01
Bracket HUS-506909501
...
506 55 91-01
Protection Ring HUS-506559101
...
506 55 08-09
HUS-506550809
...
506 91 56-01
COVER SWITCH KEY HUS-532141226
...
535 45 33-01
COVER HUS-535453301
...
506 55 08-10
HUS-506550810
...
506 55 07-01
SPACER HUS-506550701
...
506 90 93-01
SPRING HUS-506909301
...
535 45 32-01
BATTERY HUS-531031071
...
734 11 24-01
WASHER BRB 3.2X7 HUS-734112401
...
506 83 68-02
BELT HUS-506836802
...
725 23 70-71
SCREW HUS-725237071
...
734 11 46-01
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
506 91 73-01
NUT IGNITION HUS-532124211
...
506 90 99-01
BUSHING HUS-506909901
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 91 71-03
IGNITION SWITCH HUS-506917103
