Husqvarna Rider 155 (2003-01) Ride Mower

Model: Rider 155 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

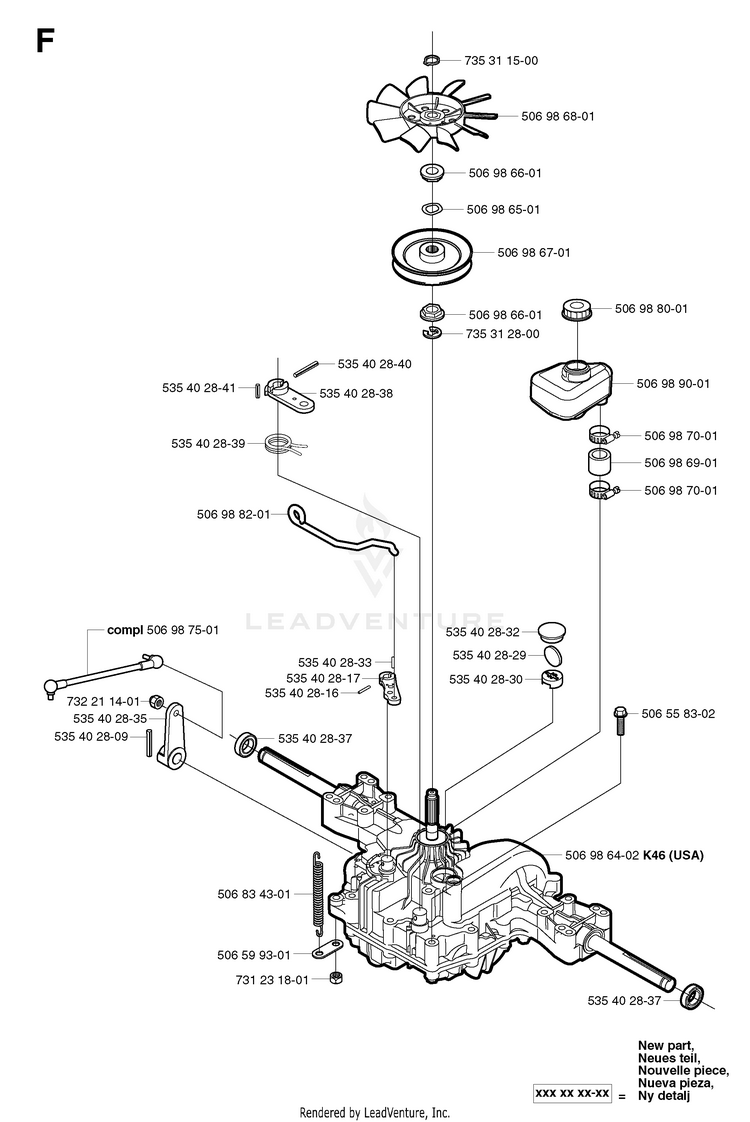

TRANSMISSION

...
...
506 98 66-01
SLEEVE HUS-506986601
...
535 40 28-17
ARM HUS-535402817
...
535 40 28-35
LEVER HUS-535402835
...
506 55 83-02
BOLT HUS-506558302
...
731 23 18-01
NUT HUS-731231801
...
506 98 75-01
ROD HUS-506987501
...
506 98 70-01
HOSE CLAMP 20-32 HUS-505131102
...
506 98 68-01
FAN.BLACK.1A646083070 HUS-583350101
...
535 40 28-16
PIN HUS-535402816
...
535 40 28-39
RETURN SPRING HUS-535402839
...
506 83 43-01
SPRING HUS-506834301
...
535 40 28-09
PIN HUS-535402809
...
535 40 28-38
ARM HUS-535402838
...
506 98 80-01
TANK CAP ASSY HUS-590324701
...
506 98 65-01
WASHER ** HUS-506986501
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
735 31 28-00
Retaining Ring HUS-735312800
...
506 98 69-01
TUBE HUS-502451601
...
506 98 67-01
PULLEY B HUS-502451901
...
535 40 28-29
MAGNET HUS-535402829
...
535 40 28-41
PIN HUS-535402841
...
535 40 28-30
HOLDER HUS-535402830
...
535 40 28-37
SEAL.19, 19216334280 HUS-583349301
...
506 98 64-02
HYDROSTAT 7A646024070 K46 (USA) HUS-506986301
...
506 59 93-01
CONNECTOR HUS-506599301
...
735 31 15-00
RETAINING RING ** HUS-735311500
...
535 40 28-40
PIN HUS-535402840
...
535 40 28-33
PIN HUS-535402833
...
506 98 82-01
Rod HUS-506988201
...
506 98 90-01
TANK HUS-506989001
...
535 40 28-32
PLUG HUS-535402832
