Husqvarna RZ4219F - 966495701 (2010-01) Zero Turn: Consumer

Model: RZ4219F - 966495701 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

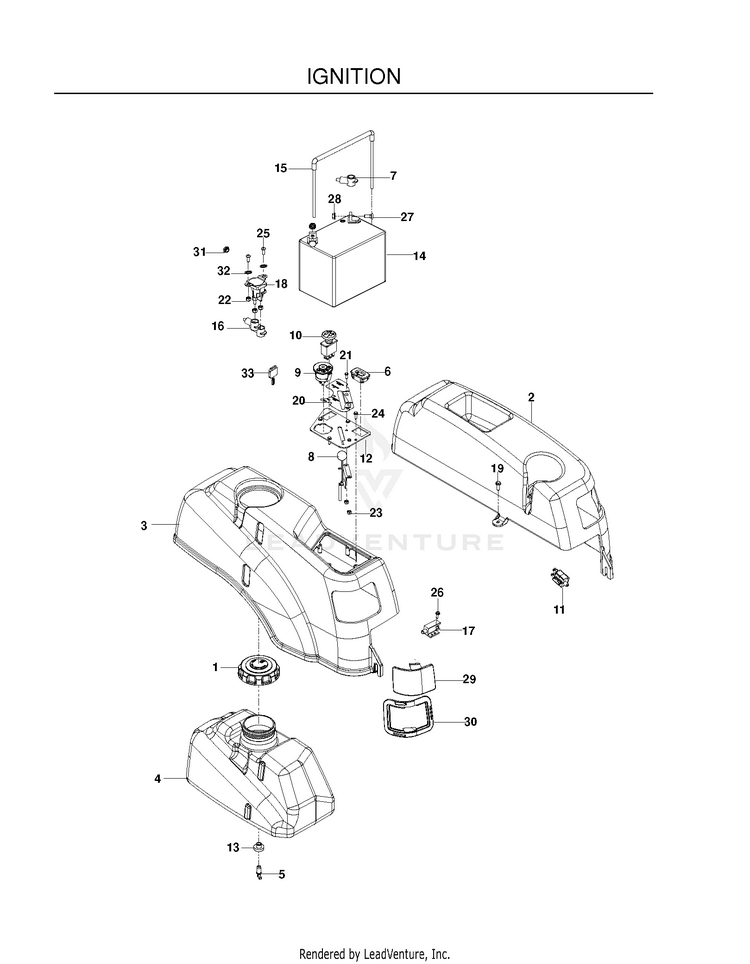

IGNITION SYSTEM

...
...
1
FUEL CAP, HTC HUS-539130393
...
2
FENDER, LT HUS-539130374
...
3
RP.FENDER, RT HUS-539130375
...
4
FUEL TANK HUS-539110252
...
5
STEM FUEL TANK HUS-532139277
...
6
HOUR METER HUS-576179401
...
7
INSULATOR HUS-539102759
...
8
CABLE, THROTTLE HUS-522730101
...
9
IGNITION SWITCH HUS-532175566
...
10
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
11
SWITCH, BRAKE 3P HUS-539113792
...
12
PLATE.CONTROL.CONSOLE.BLACK HUS-539110305
...
13
RUBBER GROMMET HUS-539105245
...
14
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
15
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
16
TERMINAL COVER-SM HUS-539116400
...
17
SWITCH, INTERLOCK HUS-539101080
...
18
SOLENOID HUS-539101714
...
19
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
20
DECAL, IGNITION CONSOLE HUS-539110077
...
21
Screws HUS-596582801
...
22
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
Hardware HUS-596040801
...
24
Screws HUS-596917001
...
25
Screws HUS-596789701
...
26
Screws HUS-596584001
...
27
GSPW Bolts HUS-595901601
...
28
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
29
LEFT HEADLIGHT LENS HUS-539110457
...
xx
RT HEADLIGHT LENS HUS-539110453
...
30
LEFT HEADLIGHT RIM GREY HUS-539110455
...
xx
RT HEADLIGHT RIM GREY HUS-539110451
...
31
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
32
WASHER 1/4 INT TOOTH HUS-539990053
...
33
KEY MLD GEN DELTA HUS-532140401
...
xx
CABLE BATTERY POS RZ NOT SHOWN HUS-586108201
...
xx
BATTERY CABLE, NEGATIVE NOT SHOWN HUS-539110068
...
xx
WIRING HARNESS NOT SHOWN HUS-580798101
