Husqvarna RZ4219 - 966809001 (2011-09) Zero Turn: Consumer

Model: RZ4219 - 966809001 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

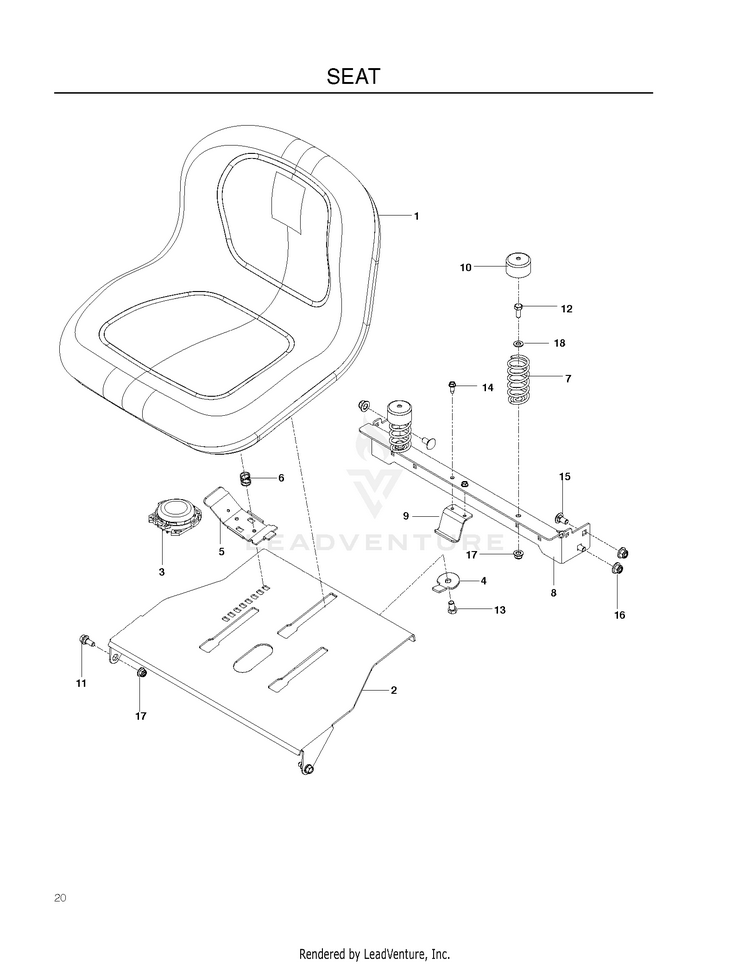

SEAT

...
...
1
SEAT.TH150.MS498.GRY.HUSQ.TEX HUS-532439822
...
2
PLATE, SEAT, ORG HUS-574356302
...
3
SWITCH, SEAT N/C HUS-539132140
...
4
STOP, SEAT, BLACK HUS-574191002
...
5
Handles HUS-595088102
...
6
SPRING.LATCH.SEAT.TEX HUS-532198200
...
7
SEAT SPRING HUS-539122632
...
8
SEAT SUPPORT, REAR ORG HUS-574356402
...
9
HOLDING DEVICE, FUEL TANK, BLK HUS-525864502
...
10
SPRING CAP HUS-539119884
...
11
Bolts HUS-596240701
...
12
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
13
HCS 3/8-16 X 5/8 GR 5 ZD HUS-539108503
...
14
SCREW 1/4 X 5/8 HUS-539990362
...
15
RHSNB 3/8-16 X 3/4 GR5 ZD HUS-539111785
...
16
GSPW Nuts HUS-521996502
...
17
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
18
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
