Husqvarna RZ4216 - 966698701 (2011-02) Zero Turn: Consumer

Model: RZ4216 - 966698701 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

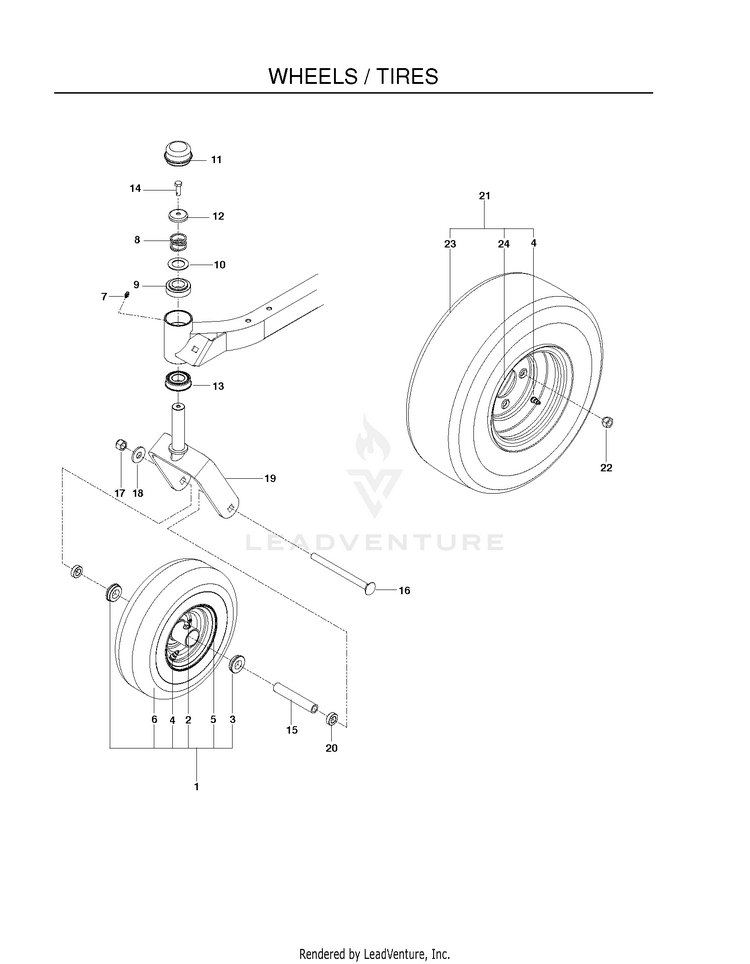

WHEELS TIRES

...
...
1
WHEEL.CARLSTAR.11X4-5".MS417 HUS-590486802
...
2
ZERK HUS-539103300
...
3
BUSHING, WHEEL, 3/4" HUS-576617801
...
4
VALVE STEM TR-412 HUS-539912234
...
5
RIM HUS-539106994
...
6
TIRE.11"X4"-5.4PLY.SMOOTH.KEND HUS-539114697
...
7
ZERK, 3/16, DRIVE IN HUS-539115638
...
8
Casters HUS-596388901
...
9
BUSHING, CASTER HUS-539117901
...
10
Washers HUS-596319801
...
11
Caps HUS-595281301
...
12
Casters HUS-596301001
...
13
BEARING FLANGED HUS-539112660
...
14
Screws HUS-596319901
...
15
SPACER HUS-539105543
...
16
RHSNB 1/2-13 X 6.50 GR2 ZD HUS-539121159
...
17
NUT 1/2-13 HEX CNTRLK GR 5 ZD HUS-539200100
...
18
Washers HUS-595316401
...
19
YOKE.CASTER.ORANGE HUS-510186505
...
20
SPACER, 5/16" HUS-539114805
...
21
WHEEL.18X7.50-8.K500.8X5.375 HUS-581197901
...
22
Nuts HUS-587653903
...
23
TIRE.TURF.SAVER.18X7.5-8 HUS-539105535
...
24
RIM 5.375"X8" HUS-574383601
