Husqvarna RZ4216 - 966698701 (2011-02) Zero Turn: Consumer

Model: RZ4216 - 966698701 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

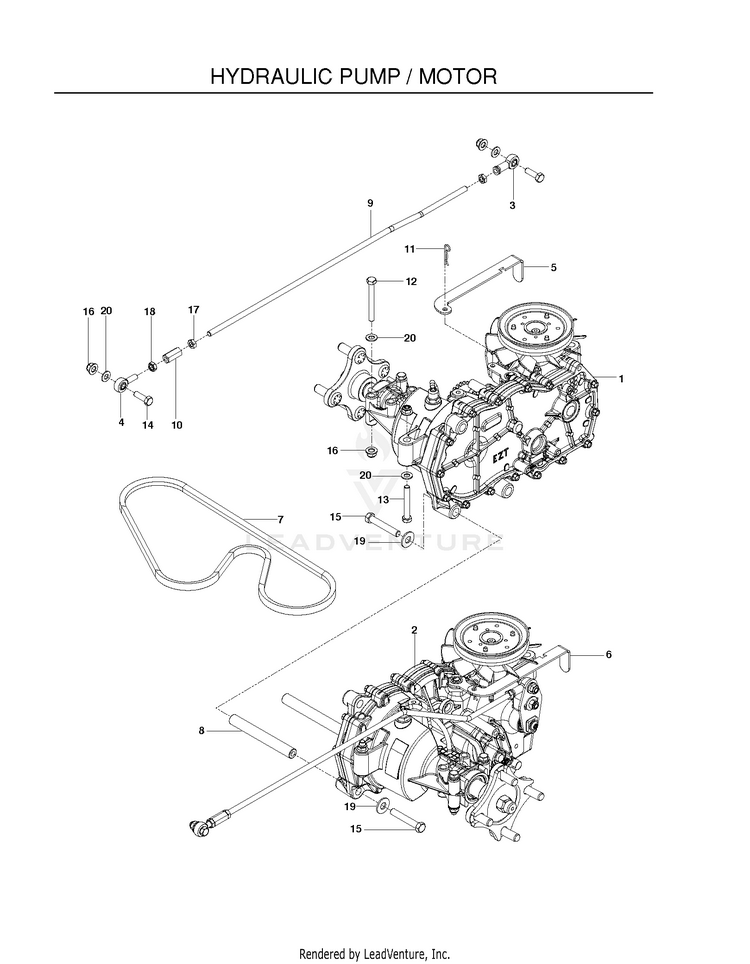

HYDRAULIC PUMP MOTOR

...
...
1
HG_HYDRO RH RH HUS-539120152
...
2
HG_HYDRO LH LH HUS-539120153
...
3
JOINT.HEIM.FEML.5/16.RH.THREAD RH HUS-579764601
...
4
ROD.END.MALE.LH.THREAD LH HUS-588692502
...
5
RELEASE LEVER RH RH HUS-539120157
...
6
RELEASE LEVER LH LH HUS-539120156
...
7
BELT, EL 51.O4 HUS-575852401
...
8
SPACER, HYDRO HUS-574356501
...
9
CONTROL ROD HUS-539120169
...
10
Coupling HUS-596718601
...
11
Pins HUS-596580601
...
12
HCS 5/16C X 2-3/4 HUS-539101721
...
13
CAPSCREW HUS-539976938
...
14
Bolts HUS-596580801
...
15
Bolts HUS-596564404
...
16
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
17
NUT 5/16-24 UNF HEX JAM HUS-539115502
...
18
Nuts HUS-596584101
...
19
GSPW Washers HUS-596433701
...
20
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
