Husqvarna RZ4216 - 966698701 (2011-02) Zero Turn: Consumer

Model: RZ4216 - 966698701 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

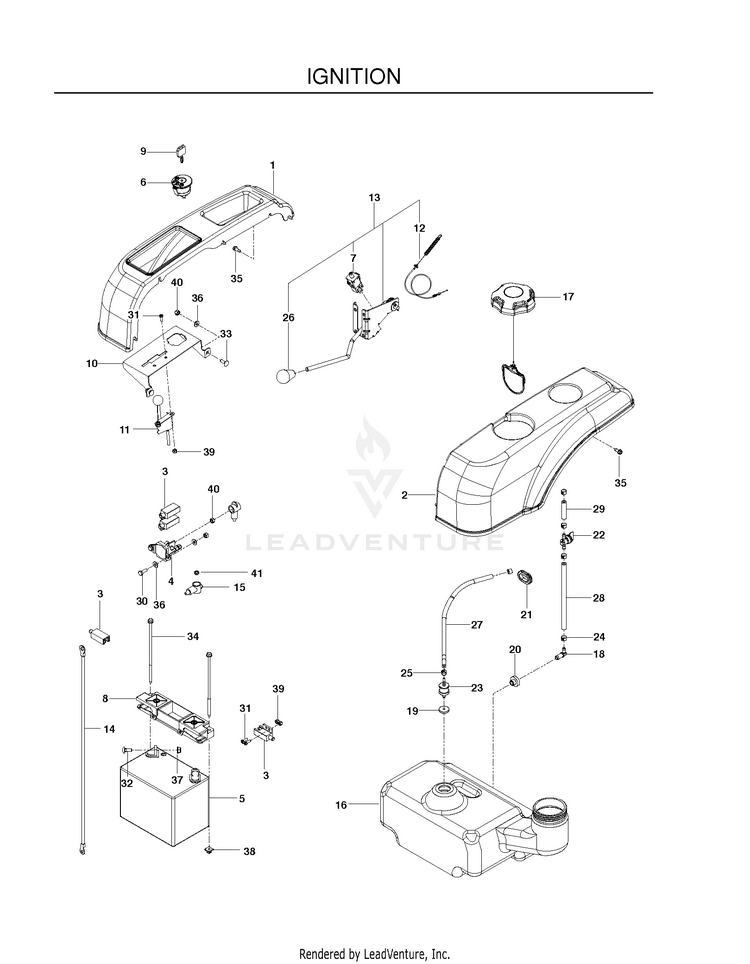

IGNITION

...
...
1
FENDER, RZ 30/38 RT RH HUS-525594701
...
2
FENDER, RZ 30/38 LT LH HUS-525594702
...
3
SWITCH, INTERLOCK HUS-539101080
...
4
SOLENOID HUS-539101714
...
5
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
6
IGNITION SWITCH HUS-532175566
...
7
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
8
BATTERY HOLD DOWN HUS-539107628
...
9
KEY MLD GEN DELTA HUS-532140401
...
10
MOUNT, CONTROLS, BLK HUS-525598601
...
11
CABLE, THROTTLE HUS-522730101
...
12
CABLE.CLUTCH.38".SERVICE HUS-532193235
...
13
ASM, CLUTCH ENGAGE W/CABLE HUS-575661501
...
14
BATTERY CABLE, NEGATIVE HUS-539110068
...
15
TERMINAL COVER-SM HUS-539116400
...
16
FUEL TANK ASM SMALL HUS-576646403
...
17
CAP 3.5IN SEALED HUS-575018103
...
18
STEM FUEL TANK HUS-532139277
...
19
GROMMET.CHECK.FUEL HUS-584648201
...
20
RUBBER GROMMET HUS-539105245
...
21
RUBBER GROMMET HUS-539105974
...
22
FUEL VALVE HUS-539916325
...
23
VALVE.FUEL.CHECK HUS-576618101
...
24
HOSE CLAMP HUS-539912222
...
25
CLAMP, HOSE HUS-575436501
...
26
KNOB - SHIFT HUS-539132624
...
27
HOSE, FUEL, 3/16" X 20" HUS-574521305
...
28
HOSE 1/4 X 8 HUS-539115736
...
29
HOSE 1/4 X 2" HUS-539121486
...
30
Screws HUS-596230901
...
31
Screws HUS-596039001
...
32
GSPW Bolts HUS-595901601
...
33
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
34
BOLT - 1/4-20 X 7.5 HUS-539107632
...
35
SCREW 1/4 X 5/8 HUS-539990362
...
36
Washers HUS-596582301
...
37
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
38
PUSH NUT-NYLON HUS-539107629
...
39
Hardware HUS-596040801
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
41
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
xx
POST.CABLE LONG NOT SHOWN HUS-539104974
...
xx
CABLE BATTERY POS RZ NOT SHOWN HUS-586108201
...
xx
HARNESS, WIRING NOT SHOWN HUS-574658201
...
xx
TIE, PLASTIC NOT SHOWN HUS-539976856
