Husqvarna RZ4216 - 966698701 (2011-02) Zero Turn: Consumer

Model: RZ4216 - 966698701 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

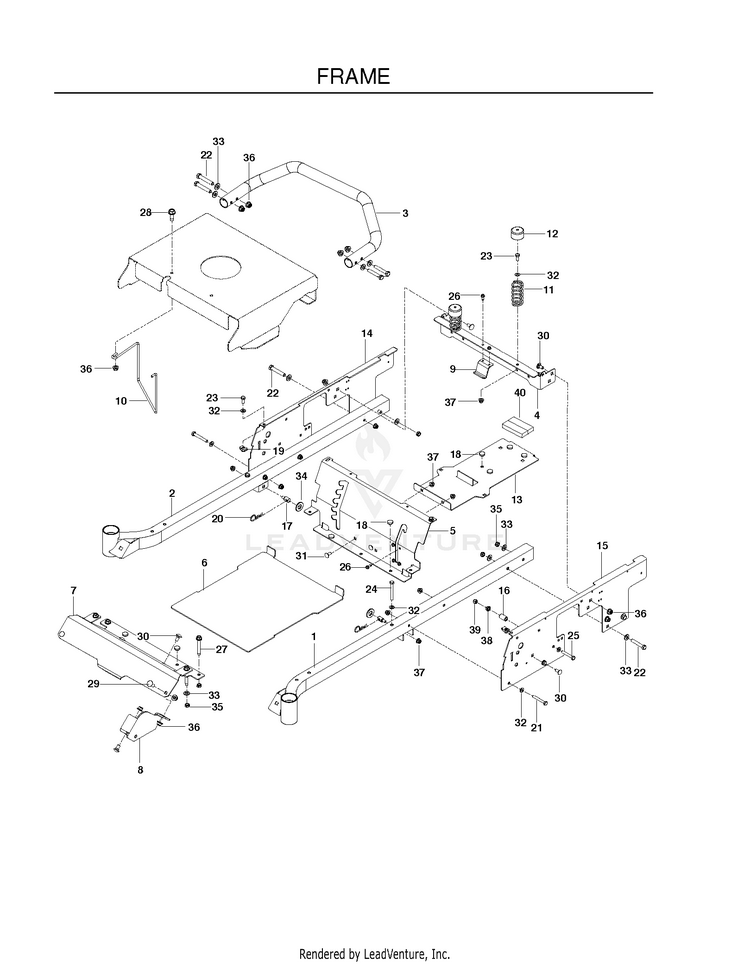

FRAME

...
...
1
FRAME TUBE, LH, ORG HUS-525454702
...
2
FRAME TUBE, RH, ORG HUS-525454902
...
3
IMPACT BAR, ORG HUS-574354702
...
4
SEAT SUPPORT, REAR ORG HUS-574356402
...
5
PANEL.SEAT.SUPPORT.ORANGE HUS-575661302
...
6
PAN, FLOOR W/DECALS, HUS HUS-576414602
...
7
FOOT REST, ORG HUS-574356002
...
8
BRACKET, FRONT DECK, BLK HUS-525605502
...
9
HOLDING DEVICE, FUEL TANK, BLK HUS-525864502
...
10
KEEPER, BELT ENGINE HUS-575952201
...
11
SEAT SPRING HUS-539122632
...
12
SPRING CAP HUS-539119884
...
13
SUPPORT, TANK/BATT, BLK HUS-525798402
...
14
PLATE.RH.SIDE.ORANGE HUS-575328402
...
15
PLATE.LH.SIDE.ORANGE HUS-575328302
...
16
BUSHING HUS-539119087
...
17
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
18
GROMMET, BUMPER HUS-539102587
...
19
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
20
Pins HUS-596273101
...
21
CAPSCREW HUS-539976938
...
22
Bolts HUS-596564404
...
23
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
24
HCS 5/16C X 2-3/4 HUS-539101721
...
25
HCS 5/16-18X2 HUS-539976937
...
26
SCREW 1/4 X 5/8 HUS-539990362
...
27
ENGINE BOLT, SPECIAL HUS-539111976
...
28
BOLT 3/8-16 X 1.0 HUS-539107476
...
29
Bolts HUS-595316801
...
30
RHSNB 3/8-16 X 3/4 GR5 ZD HUS-539111785
...
31
GSPW Bolts HUS-595901601
...
32
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
33
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
34
WASHER 5/8 FLAT HUS-539976982
...
35
Nuts HUS-596230801
...
36
GSPW Nuts HUS-521996502
...
37
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
38
GSPW Hardware HUS-596039201
...
39
Nuts HUS-596583702
...
40
FOAM STRIP, FUEL TANK HUS-539110290
