Husqvarna RZ4216 - 966612401 (2011-02) Zero Turn: Consumer

Model: RZ4216 - 966612401 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

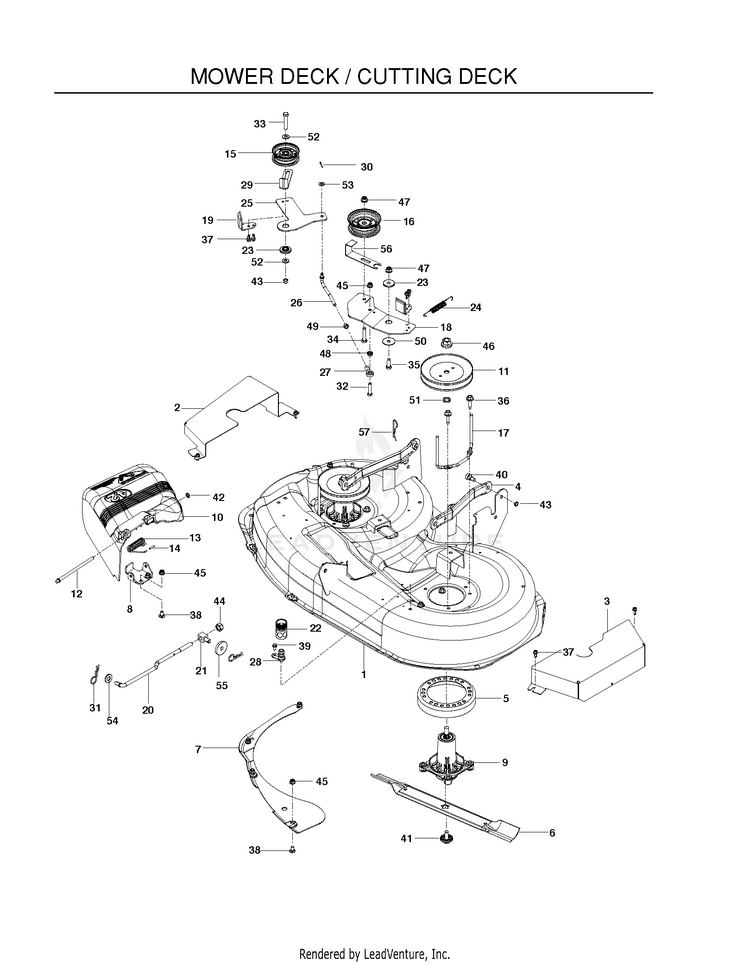

MOWER DECK / CUTTING DECK

...
...
1
DECK.SVC W/DECALS 42" HTC RZ w / SAFETY DECALS HUS-575699801
...
2
GUARD.RIGHT.BELT.42"BLACK RH HUS-575754602
...
3
GUARD.LEFT.BELT.42" BLACK LH HUS-575754502
...
4
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
5
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
6
42" MULCH BLADE HUS-594892701
...
7
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
8
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
9
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
10
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
11
PULLEY.MANDREL.5.438.P HUS-532195945
...
12
Rods HUS-595297001
...
13
TORSION SPRING HUS-539107609
...
14
CAP-SLEEVE LT HUS-532105304
...
15
IDLER PULLEY HUS-539919078
...
16
PULLEY.IDLER.FLAT HUS-532177968
...
17
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
18
ARM DECK IDLER ARM.IDLER.BLACK HUS-574694505
...
19
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
20
Links HUS-581506902
...
21
SWIVEL HUS-539114789
...
22
COUPLING.QUICK CONNECT HUS-532416405
...
23
SPACER.RETAINER HUS-532199092
...
24
SPRING RETURN HUS-532401872
...
25
ARM.BRAKE.42.BLACK HUS-574693302
...
26
LINKAGE, DECK BRAKE HUS-574694601
...
27
BALL JOINT, RIGHT HANDED HUS-539102590
...
28
PORT.WASHOUT HUS-532415598
...
29
GUIDE, BELT HUS-525851801
...
30
Pins HUS-596029501
...
31
Pins HUS-596273101
...
32
Bolts HUS-596582201
...
33
HCS 3/8C X 2 HUS-539990588
...
34
Bolts HUS-596583901
...
35
Bolts HUS-596564401
...
36
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
37
SCREW.1/4-20X5/8 HUS-532137729
...
38
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
39
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
40
Bolts HUS-596241101
...
41
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
42
NUT PUSH M HUS-532110452
...
43
Nuts HUS-596230801
...
44
NUT, 7/16-20 HEX NYLOC ZC HUS-573975201
...
45
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
46
Nuts HUS-596134801
...
47
GSPW Nuts HUS-521996502
...
48
GSPW Hardware HUS-596039201
...
49
Nuts HUS-596582601
...
50
WASHER, FRICTION HUS-539102998
...
51
WASHER.SPACER.MANDREL HUS-532187690
...
52
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
53
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
54
Washers HUS-595086801
...
55
Washers HUS-596770301
...
56
KEEPER, BELT HUS-577209101
...
57
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
xx
BELT, EL118 NOT SHOWN HUS-574173003
