Husqvarna RZ3016 - 966612301 (2011-02) Zero Turn: Consumer

Model: RZ3016 - 966612301 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

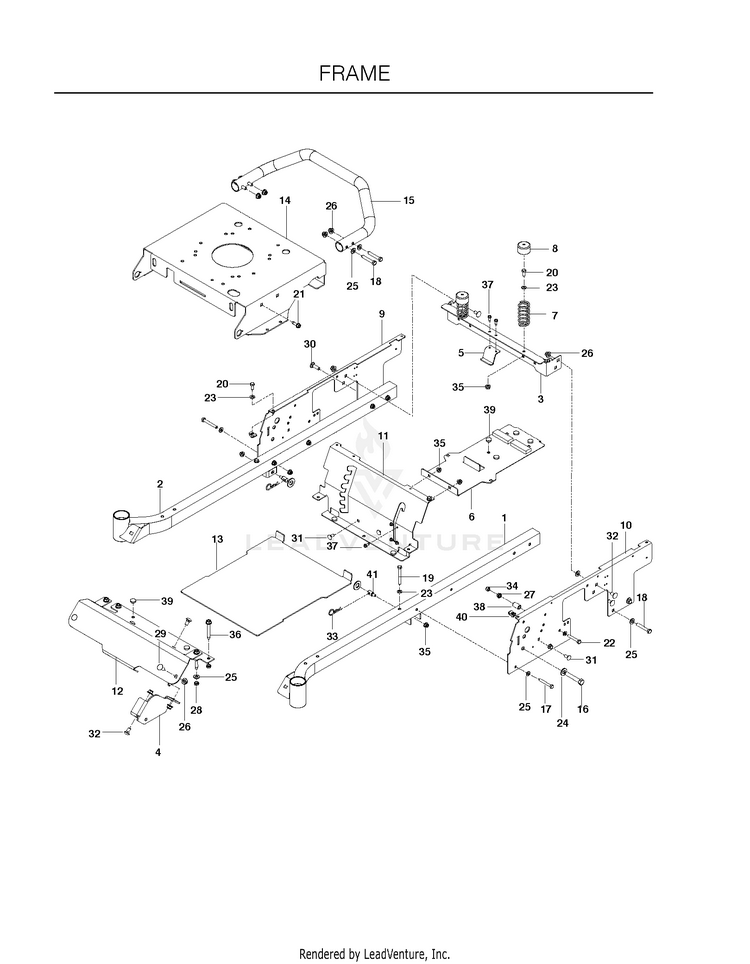

FRAME

...
...
1
FRAME TUBE, LH, ORG HUS-525454702
...
2
FRAME TUBE, RH, ORG HUS-525454902
...
3
SUPPORT, REAR SEAT, ORG HUS-525464602
...
4
BRACKET, FRONT DECK, BLK HUS-525605502
...
5
HOLDING DEVICE, FUEL TANK, BLK HUS-525864502
...
6
SUPPORT, TANK/BATT, BLK HUS-525798402
...
7
SEAT SPRING HUS-539122632
...
8
SPRING CAP HUS-539119884
...
9
PLATE.LH.SIDE.ORANGE HUS-575328302
...
10
PLATE.RH.SIDE.ORANGE HUS-575328402
...
11
PANEL, SEAT SUPP. ORG HUS-575852102
...
12
FOOT.REST.30/38.ORANGE HUS-525835902
...
13
PLATE, FOOT W/DECALS, HUSQ HUS-576452401
...
14
PLATE, ENGINE, ORG HUS-525462606
...
15
IMPACT BAR, ORG HUS-525865902
...
16
HCS 1/2C X 2 3/4 HUS-539101332
...
17
CAPSCREW HUS-539976938
...
18
Bolts HUS-596564404
...
19
HCS 5/16C X 2-3/4 HUS-539101721
...
20
BOLT 3/8-16 X 1.0 HUS-539107476
...
21
SCREW HUS-539990369
...
22
HCS 5/16-18X2 HUS-539976937
...
23
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
24
Washers HUS-595086801
...
25
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
GSPW Nuts HUS-521996502
...
27
GSPW Hardware HUS-596039201
...
28
Nuts HUS-596230801
...
29
Bolts HUS-595316801
...
30
RHSNB 3/8-16 X 1-1/4 HUS-539100413
...
31
GSPW Bolts HUS-595901601
...
32
RHSNB 3/8-16 X 3/4 GR5 ZD HUS-539111785
...
33
Pins HUS-596273101
...
34
Nuts HUS-596583702
...
35
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
36
ENGINE BOLT, SPECIAL HUS-539111976
...
37
SCREW 1/4 X 5/8 HUS-539990362
...
38
BUSHING HUS-539119087
...
39
GROMMET, BUMPER HUS-539102587
...
40
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
41
STUD.W/"D"ANTI-ROTATION HUS-593824001
